Intel Desktop Board DH61BE Technical Product Specification
42
2.2.1 Back Panel Connectors

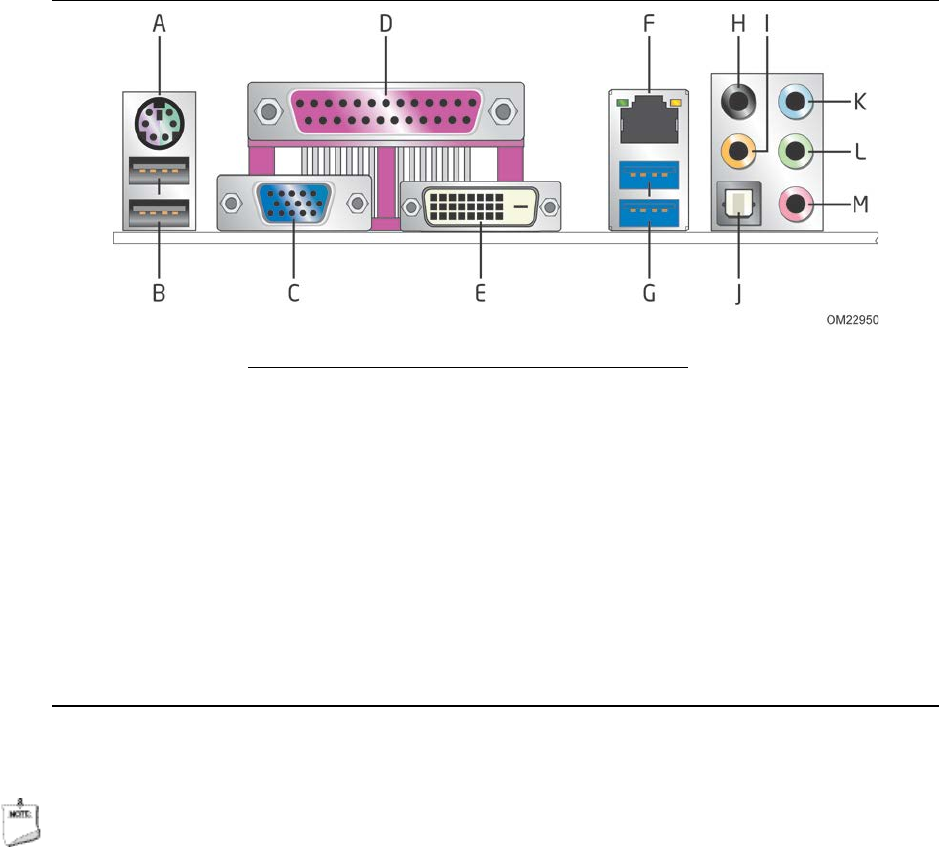

Figure 9 shows the location of the back panel connectors for the board.
Item
Description
A
PS/2 keyboard/mouse connector
B
USB 2.0 ports
C
VGA connector
D
Parallel port
E
DVI-D connector
F
LAN
G
USB 3.0 ports
H
Rear surround
I
Center channel and LFE (subwoofer)
J
S/PDIF out (optical)
K
Line in
L
Line out/front speakers
M
Mic in/side surround
Figure 9. Back Panel Connectors
NOTE
The back panel audio line out connector is designed to power headphones or amplified
speakers only. Poor audio quality occurs if passive (non-amplified) speakers are
connected to this output.
