1.14 Thermal Monitoring

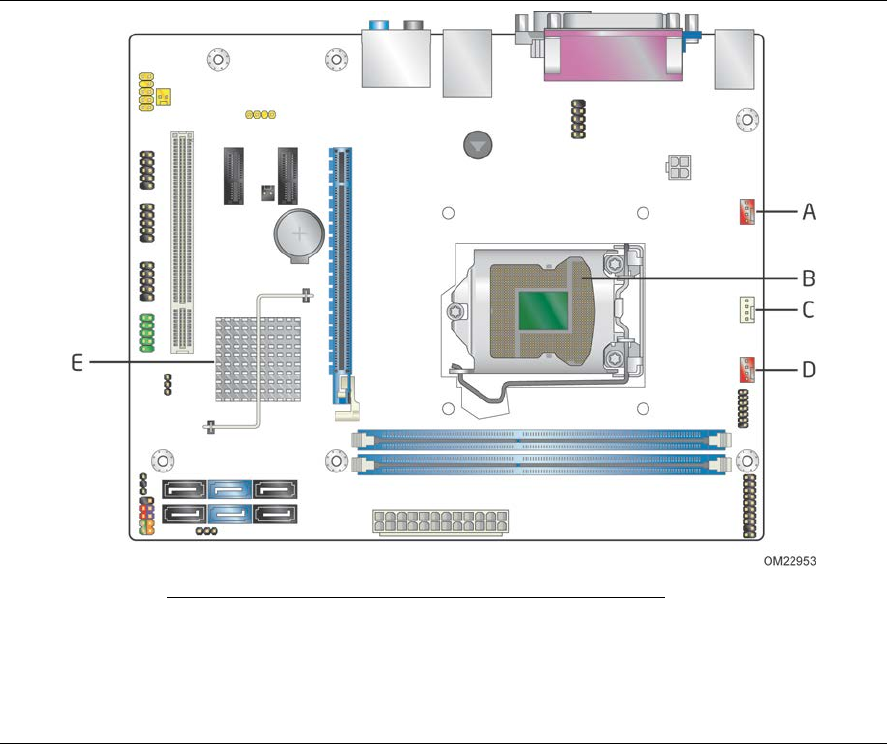

Figure 6 shows the locations of the thermal sensors and fan headers.
Item
Description
A Rear chassis fan header
B Thermal diode, located on processor die
C Processor fan header
D Front chassis fan header
E Thermal diode, located on the Intel H61 PCH
Figure 6. Thermal Sensors and Fan Headers
