Installing and Replacing Desktop Board Components
49
Connecting Chassis Fan and Power Supply
Cables
Connecting a Chassis Fan
Connect the chassis fan cable to the chassis fan header on the Desktop Board.
Figure 22 shows the location of the chassis fa
n header.

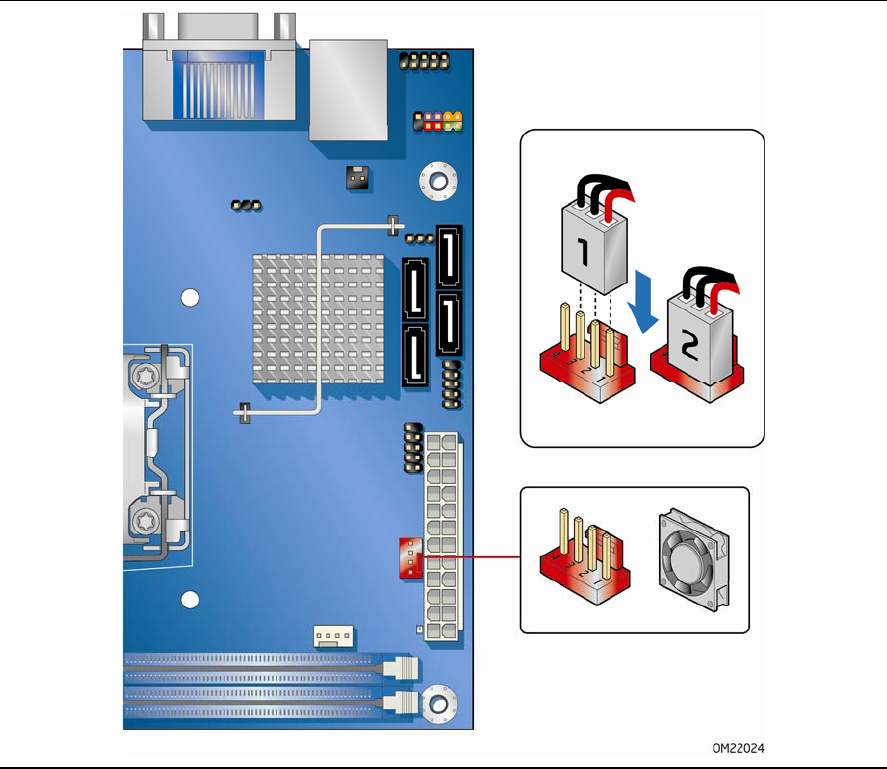

Figure 22. Location of the Chassis Fan Header
