Intel Desktop Board DH57JG Product Guide
48
Connecting to the Audio System
After installing the Realtek audio driver from the Intel
®
Express Installer DVD-ROM,
the multi-channel audio feature can be enabled. Figure 21 shows the back panel audio
connectors
. The default connector assignments are shown in the table.
Item Description
A Rear surround
B Center channel and LFE (subwoofer)
C S/PDIF out optical
D Audio line in
E Mic in/side surround
F Line out/front speakers

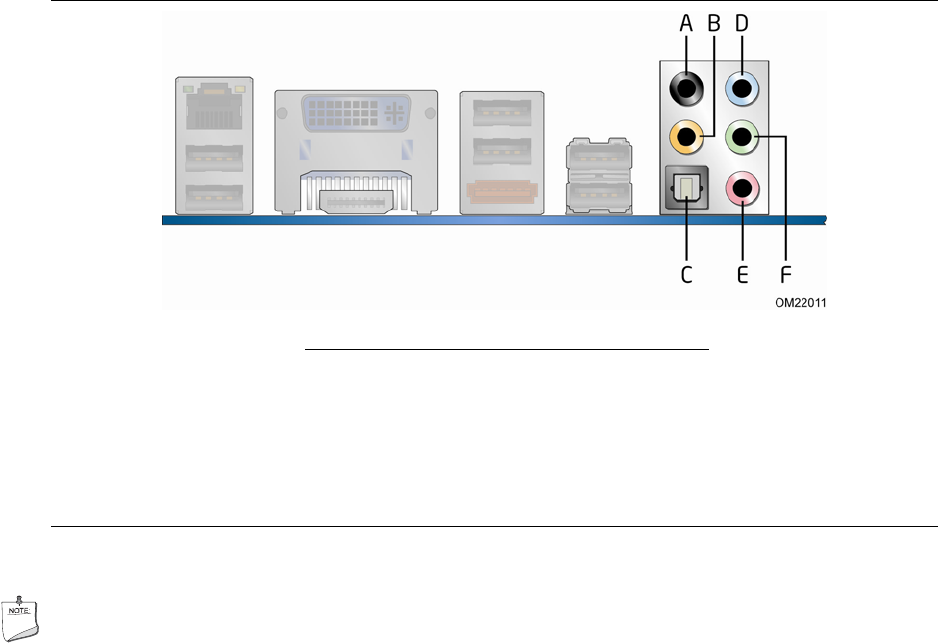

Figure 21. Back Panel Audio Connectors
NOTE
The back panel line out connector is designed to power either headphones or amplified
speakers only. Poor audio quality may occur if passive (non-amplified) speakers are
connected to this output.
