Intel Desktop Board DH57JG Product Guide
44
Connecting to the Internal Headers
Before connecting cables to any of the internal headers, observe the precautions in
“Before You Begin” on page 27. Figure 20 shows the location of the internal headers
and co
nnectors on Intel Desktop Board DH57JG.

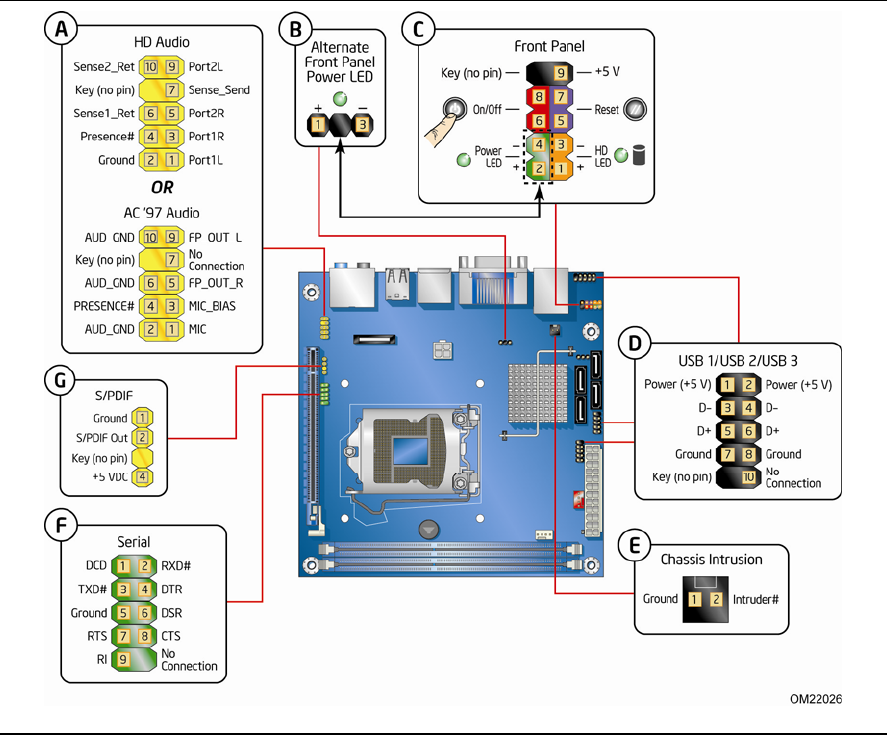

Figure 20. Internal Headers
