2.9 Mechanical Considerations

2.9.1 Form Factor

The board is designed to fit into an ATX- or microATX-form-factor chassis. Figure 21

illustrates the mechanical form factor of the board. Dimensions are given in inches

[millimeters]. The outer dimensions are 9.60 inches by 9.60 inches [243.84

millimeters by 243.84 millimeters]. Location of the I/O connectors and mounting

holes are in compliance with the ATX specification.

OM18467

5.200

[132.08]

6.450

[163.83]

6.200

[157.48]

2.600

[66.04]

3.100

[78.74]

3.150

[80.01]

2.850

[72.39]

0.00

1.800

[45.72]

0.00

6.500

[165.10]

6.100

[154.94]

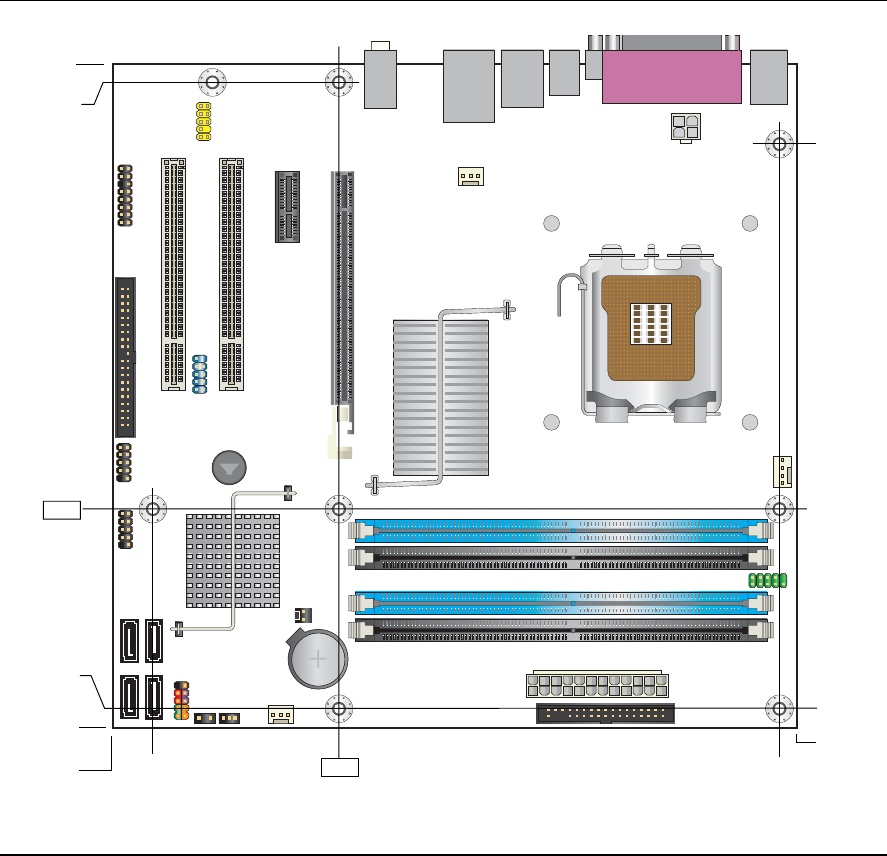

Figure 21. Board Dimensions
