1.9.4 Thermal Monitoring

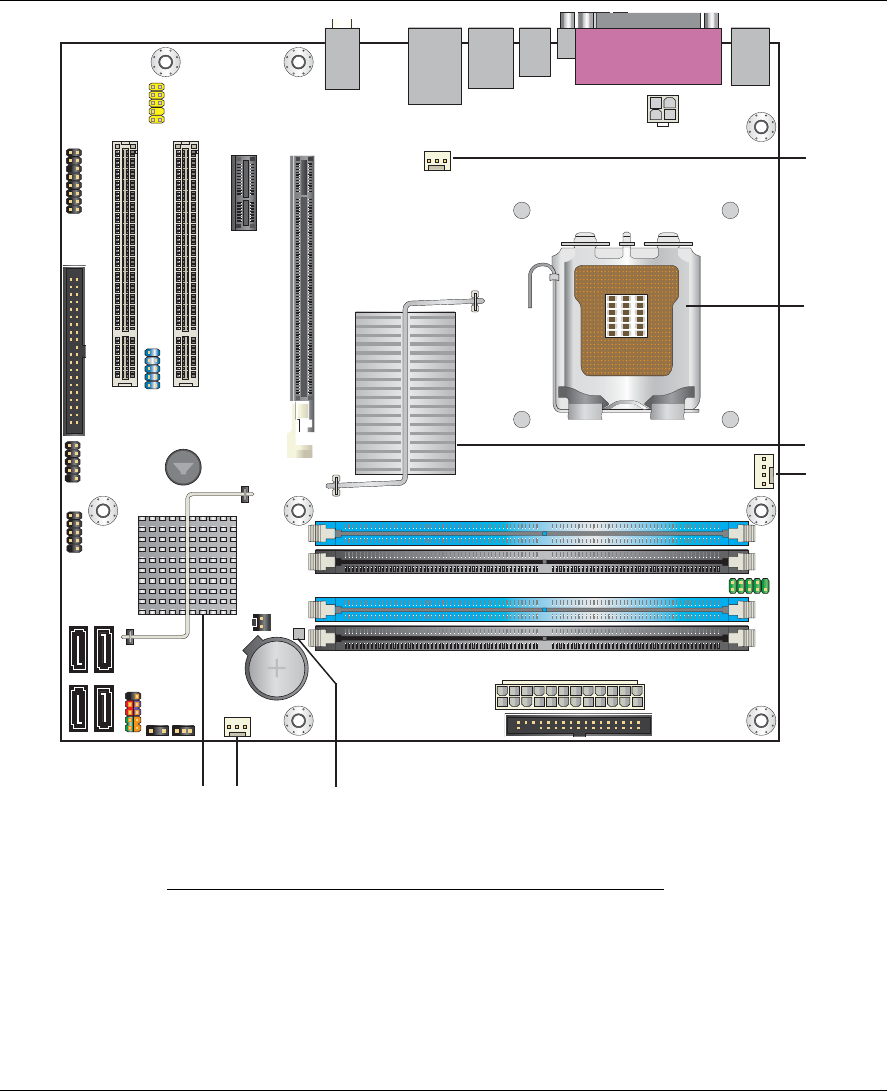

Figure 12 shows the locations of the thermal sensors and fan headers.
C
F
B
E
A
G
OM18464
D
Item Description
A Thermal diode, located on processor die
B Thermal diode, located on the GMCH die
C Thermal diode, located on the ICH8 die
D Remote thermal sensor
E Processor fan
F Front chassis fan
G Rear chassis fan
Figure 12. Thermal Sensors and Fan Headers
