1.4.1.3 Flex Mode Configuration



NOTE

The use of flex mode requires DIMMs to be installed in both channels.

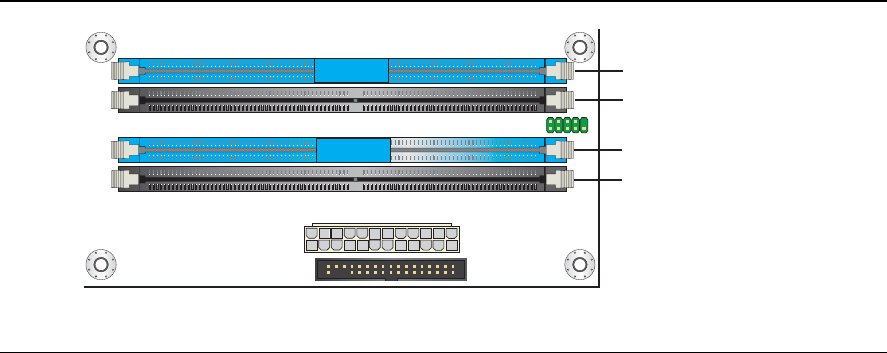

Figure 9 shows a flex mode configuration using two DIMMs. The operation is as

follows:

• The 512 MB DIMM in the Channel A, DIMM 0 socket and the lower 512 MB of the

DIMM in the Channel B, DIMM 0 socket operate together in dual channel mode.

• The remaining (upper) 512 MB of the DIMM in Channel B operates in single

channel mode.

OM18404

Channel A, DIMM 0

Channel A, DIMM 1

Channel B, DIMM 0

Channel B, DIMM 1

1 GB

512 MB

Figure 9. Flex Mode Configuration with Two DIMMs
