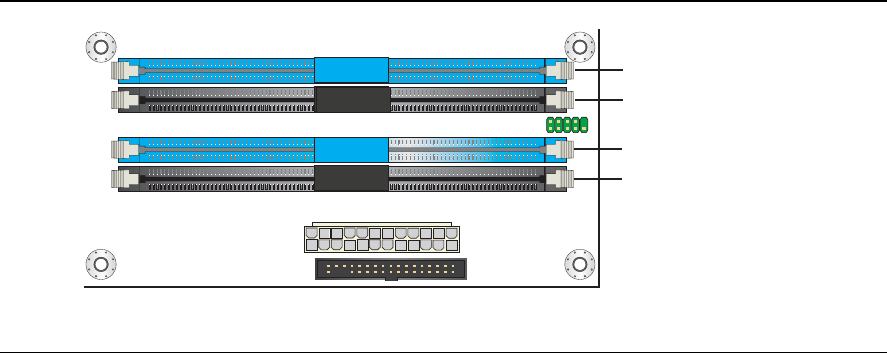

Figure 6 shows a dual channel configuration using four DIMMs. In this example, the
combined capacity of the two DIMMs in Channel A equal the combined capacity of the
two DIMMs in Channel B. Also, the DIMMs are matched between DIMM0 and DIMM1
of both channels.
OM18341
Channel A, DIMM 0
Channel A, DIMM 1
Channel B, DIMM 0
Channel B, DIMM 1
1 GB
1 GB
512 MB
1 GB
512 MB
Figure 6. Dual Channel (Interleaved) Mode Configuration with Four DIMMs
