1.1.2 Board Layout
Figure 1 shows the location of the major components.
X
W
V
U
T
S
Q
R
P
O
N
L
M
J
K
I
G
H
F
E
D
C
B
A
Y
Z
AA
BB
CC
DD
OM18462

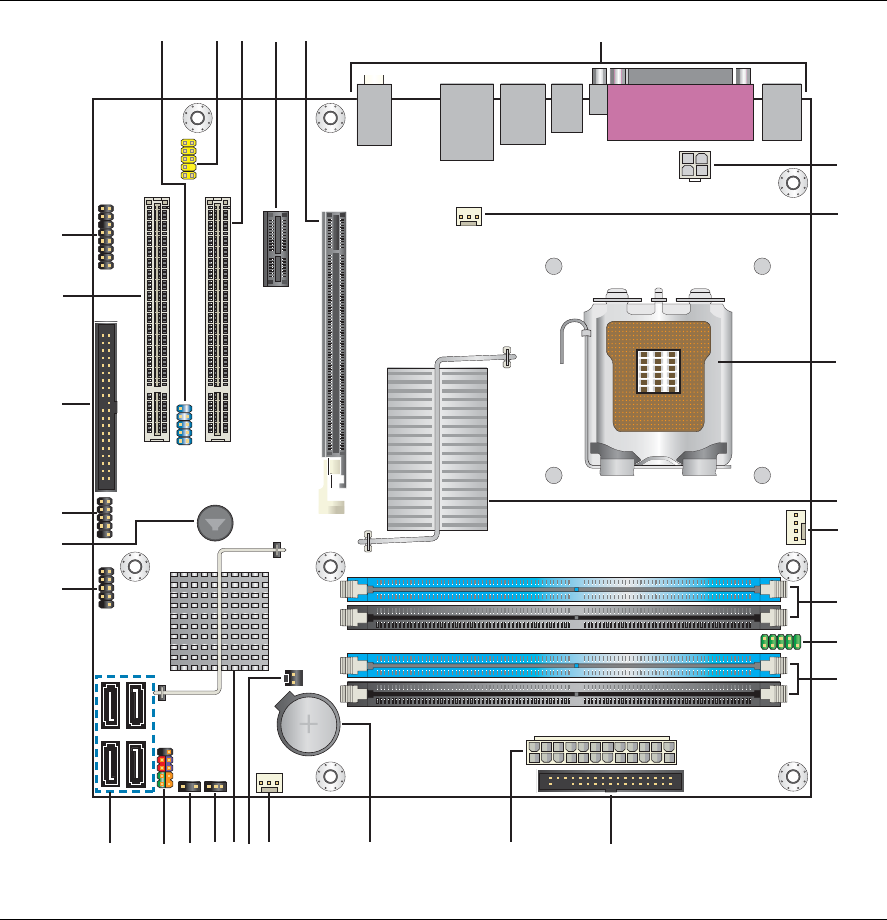

Figure 1. Major Board Components
Table 2 lists the components identified in Figure 1.
