Intel Desktop Board D945GCLF Technical Product Specification
38
The amount of installed memory that can be used will vary based on add-in cards and
BIOS settings. Figure 7 shows a schematic of the syst
em memory map. All installed
system memory can be used when there is no overlap of system addresses.

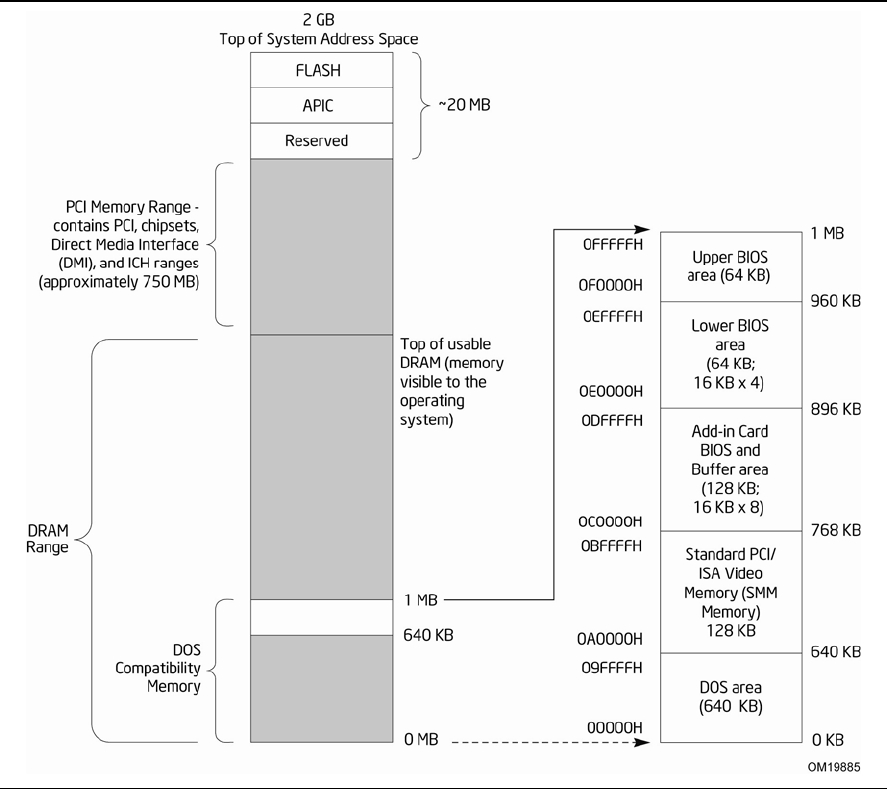

Figure 7. Detailed System Memory Address Map
