Technical Reference
53

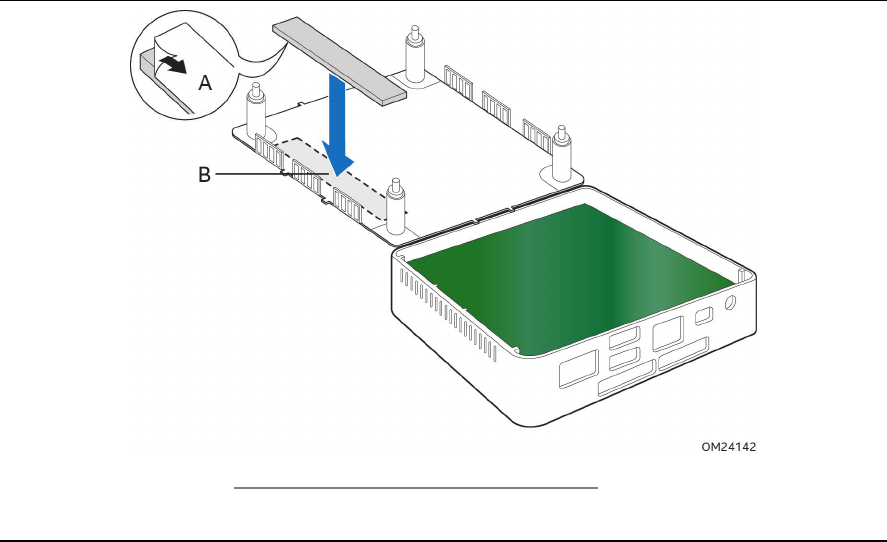

A thermal pad has been installed for the bottom of the chassis to improve the thermal
performance when using M.2 devices that operate at higher temperatures. If the thermal pad ever
needs to be replaced, Figure 18 shows the installation area of the thermal pad for the Intel NUC
Kit NUC5i5RYK/NUC5i3RYK.
Item Description
A Thermal Pad
B Thermal Pad Installation Area
Figure 19. Installation Area of Thermal Pad for Intel NUC Kit NUC5i5RYK/NUC5i3RYK
