Intel NUC Board NUC5i5RYB and Intel NUC Board NUC5i3RYB Technical Product Specification
46
2.2.3.5 Internal USB 2.0 Dual-Port Header (1.25 mm Pitch)

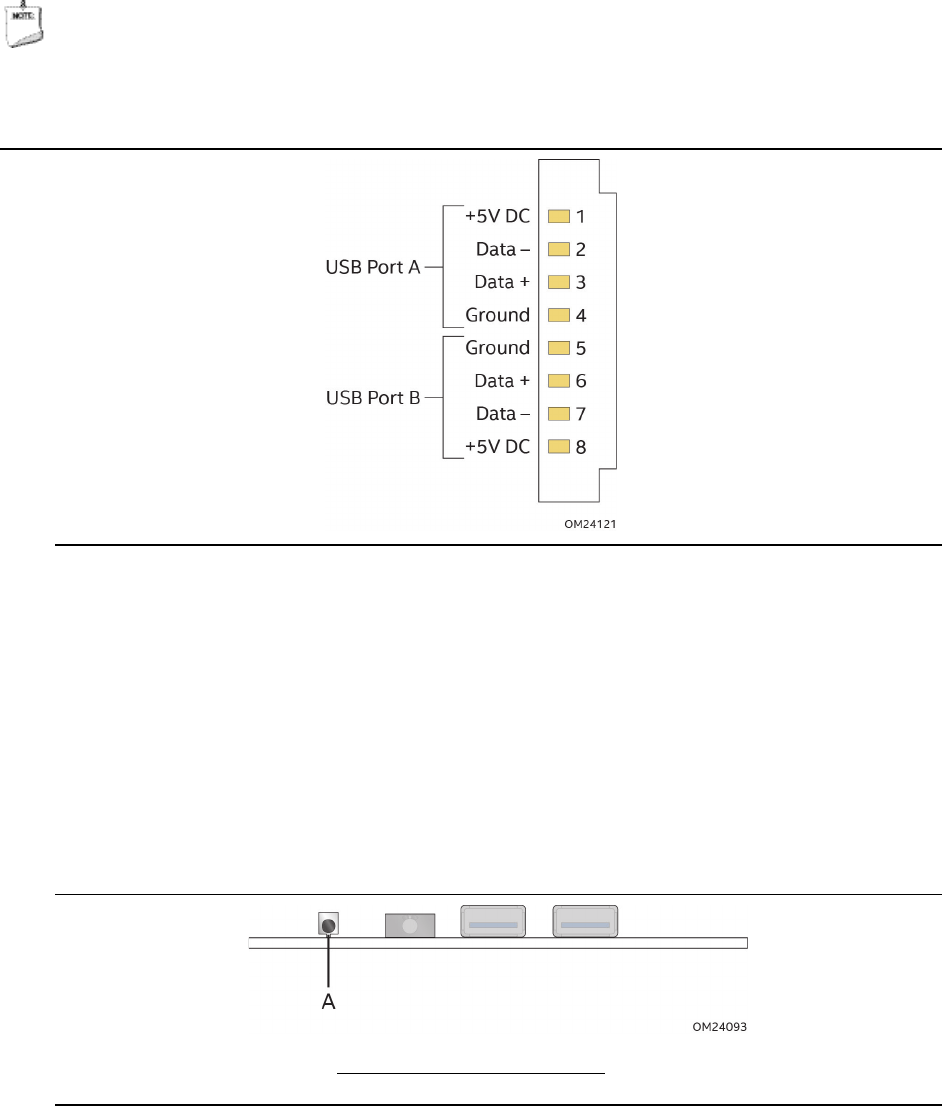

Figure 13 is a connection diagram for the internal USB header.
NOTE
• The +5 V DC power on the USB header is fused.
• Use only an internal USB connector that conforms to the USB 2.0 specification for high-speed
USB devices.
Figure 13. Connection Diagram for Internal
USB 2.0 Dual-Port Header (1.25 mm Pitch)
2.2.3.6 Consumer Infrared (CIR) Sensor
The Consumer Infrared (CIR) sensor on the front panel provides features that are designed to
comply with Microsoft Consumer Infrared usage models (RC-6).
The CIR feature is made up of the receiving sensor. The receiving sensor consists of a filtered
translated infrared input compliant with Microsoft CIR specifications.
Customers are required to provide their own media center compatible remote or smart phone
application for use with the Intel NUC. Figure 14 shows the location of the CIR sensor.
Item
Description
A CIR Sensor
Figure 14. Location of the CIR Sensor
