Intel NUC Board NUC5i5RYB and Intel NUC Board NUC5i3RYB Technical Product Specification
44

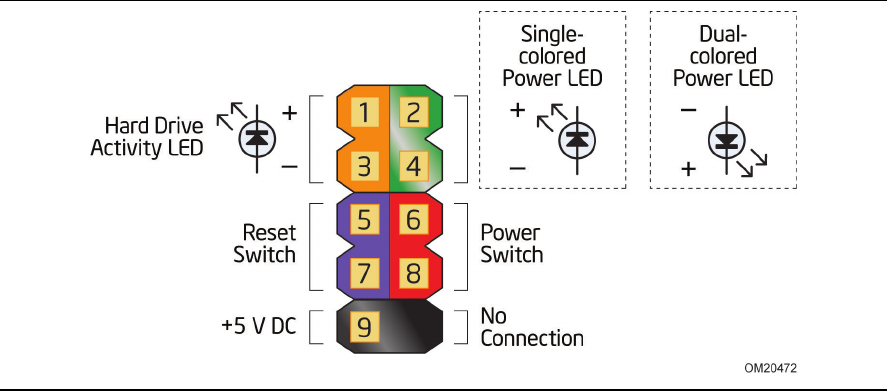

Figure 12. Connection Diagram for Front Panel Header (2.0 mm Pitch)
2.2.3.4.1 Hard Drive Activity LED Header
Pins 1 and 3 can be connected to an LED to provide a visual indicator that data is being read from
or written to a hard drive. Proper LED function requires a SATA hard drive connected to an
onboard SATA connector.
Note: When using the new M.2 SSD with PCIe there might not be any HDD activity if the storage
vendor has not implemented that function.
2.2.3.4.2 Reset Switch Header
Pins 5 and 7 can be connected to a momentary single pole, single throw (SPST) type switch that is
normally open. When the switch is closed, the board resets and runs the POST.
