Intel NUC Board NUC5i5RYB and Intel NUC Board NUC5i3RYB Technical Product Specification
26
1.9 Audio Subsystem
The audio subsystem supports the following features:
• Analog line-out/Analog Headphone/Analog Microphone (front panel jack)
• Support for 44.1 kHz/48 kHz/96 kHz/192 kHz sample rates on all analog outputs
• Support for 44.1 kHz/48 kHz/96 kHz sample rates on all analog inputs
• Front Panel Audio Jack Support (see Figure 5 for 3.5 mm audio jack pin out):
― Speakers only (Stereo)
― Headphones only (Stereo)
― Microphone only (mono)
― Combo Headphone (Stereo)/Microphone (mono)
Pin Number
Pin Name
Description
1
Tip
Left Audio Out
2
Ring
Right Audio Out
3
Ring
Common/Ground
4
Sleeve
Audio In/MIC

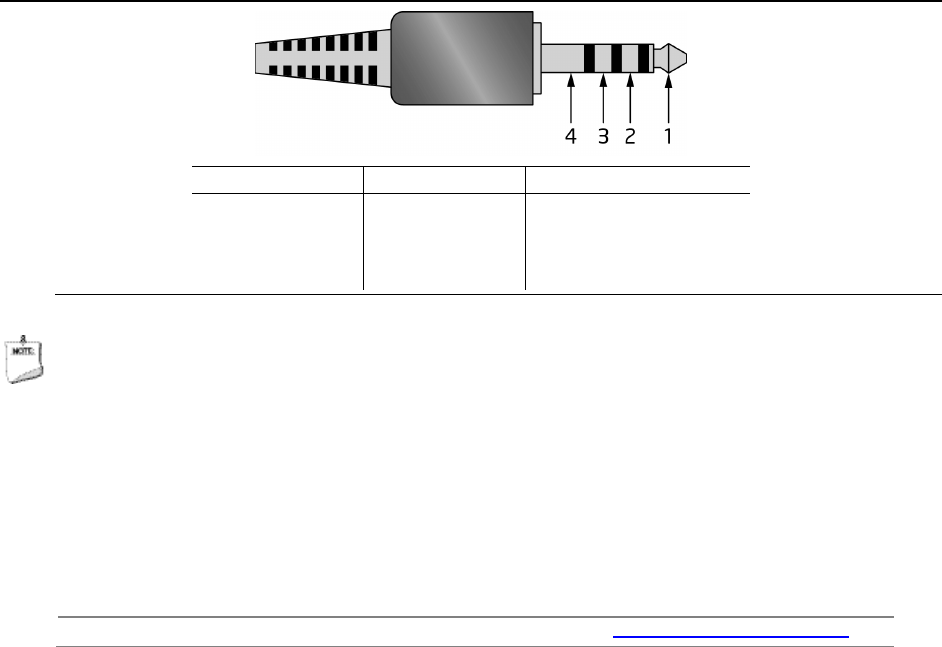

Figure 5. 4-Pin 3.5 mm (1/8 inch) Audio Jack Pin Out
NOTE
The analog circuit of the front panel audio connector is designed to power headphones or
amplified speakers only. Poor audio quality occurs if passive (nonamplified) speakers are
connected to this output.
1.9.1 Audio Subsystem Software
Audio software and drivers are available from Intel’s World Wide Web site.
For information about Refer to
Obtaining Audio software and drivers http://downloadcenter.intel.com
