Reference Thermal Solution
R
20 Intel
®
955X Express Chipset Thermal/Mechanical Design Guide
6.4 Board-Level Components Keep-out Dimensions
The location of hole patterns and keep-out zones for the reference thermal solution are shown in
Figure 6-3 and Figure 6-4.

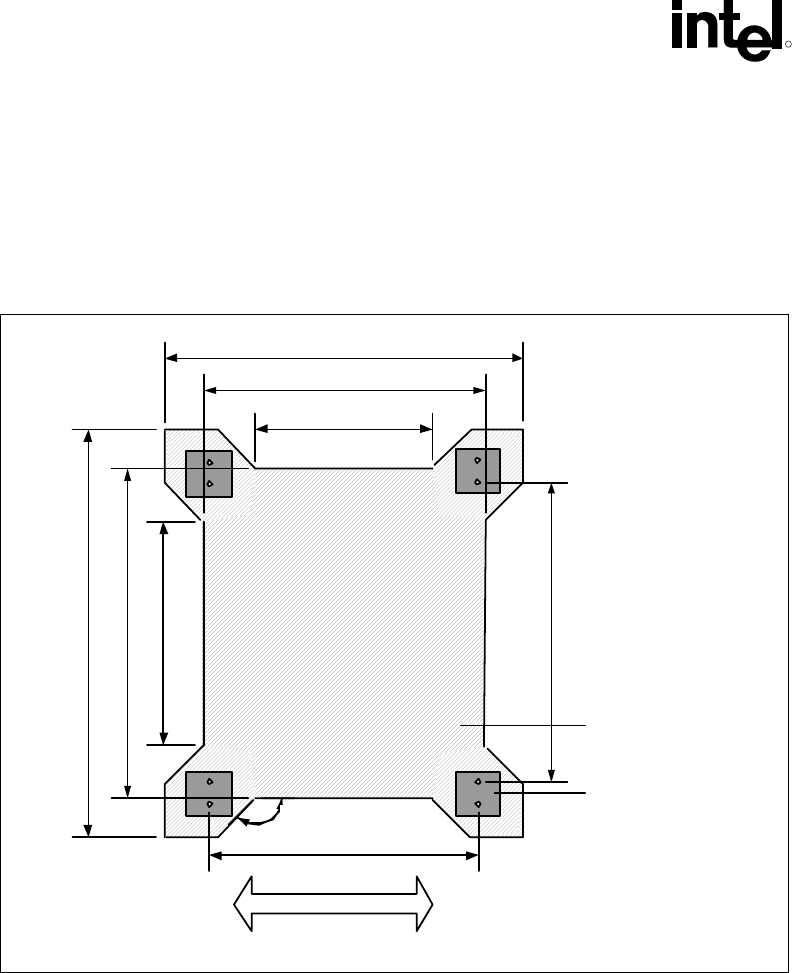

Figure 6-3. MCH Heatsink Board Component Keep-out
TN B
Heatsink Fin
26.79 mm
48.0 mm
60.6 mm
47.0 mm
135
O
45.79 mm
67.0 mm
81.0 mm
60.92 mm
Max 2.2 mm
Component
Height
No
component
this Area
Air Flow
HS_Brd_Component_Keepout
