Packaging Technology
12
Intel® 3210 and 3200 Chipset Thermal/Mechanical Design Guide
Notes:
1.
All dimensions are in millimeters.
2.
All dimensions and toler
ances conform to ANSI Y14.5 - 1994.

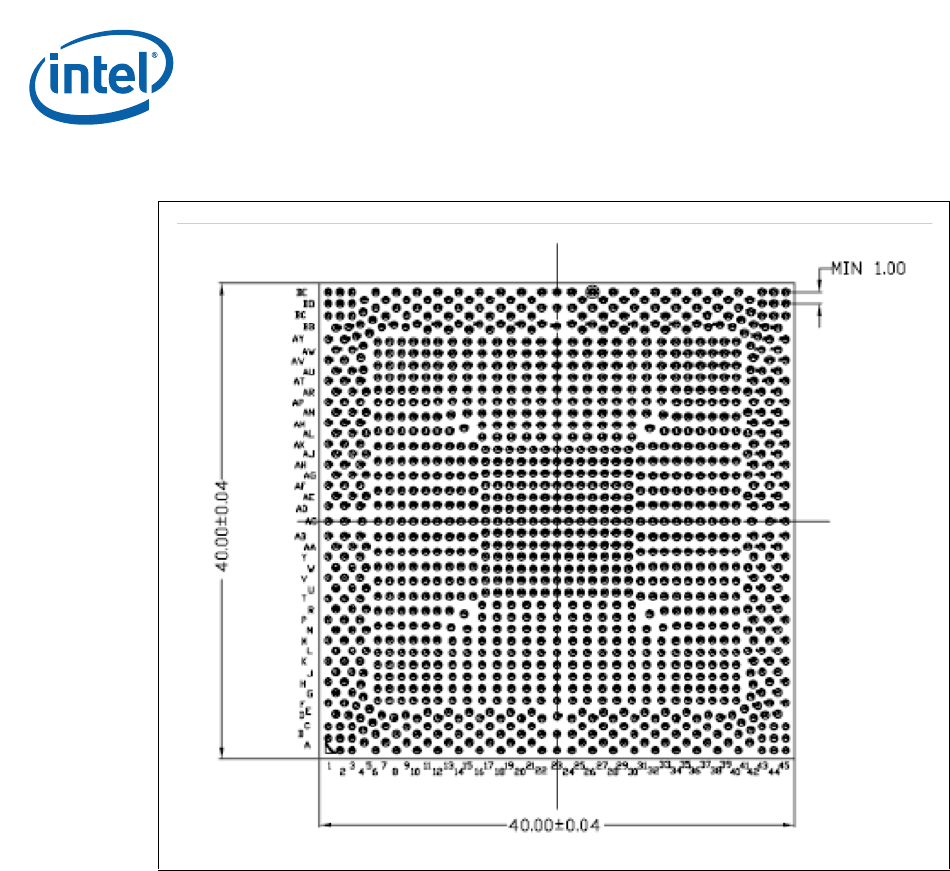

Figure 2-3.
MCH Package Dime
nsions (Bottom View)
1
...
...
10
11
12
13
14
...
...
58
