• The HDMI* interface supports HDMI with 3D, 4K, Deep Color, and x.v.Color. The
DisplayPort* interface supports the VESA DisplayPort* Standard Version 1,
Revision 2.
• The processor supports High-bandwidth Digital Content Protection (HDCP) for
high-definition content playback over digital interfaces.
• The processor also integrates dedicated a Mini HD audio controller to drive audio
on integrated digital display interfaces, such as HDMI* and DisplayPort*. The HD
audio controller on the PCH would continue to support down CODECs, and so on.
The processor Mini HD audio controller supports two High-Definition Audio streams
simultaneously on any of the three digital ports.
• The processor supports streaming any 3 independent and simultaneous display
combination of DisplayPort*/HDMI*/DVI/eDP*/VGA monitors with the exception of
3 simultaneous display support of HDMI*/DVI . In the case of 3 simultaneous
displays, two High Definition Audio streams over the digital display interfaces are
supported.
• Each digital port is capable of driving resolutions up to 3840x2160 at 60 Hz
through DisplayPort* and 4096x2304 at 24 Hz/2560x1600 at 60 Hz using HDMI*.
• DisplayPort* Aux CH, DDC channel, Panel power sequencing, and HPD are
supported through the PCH.

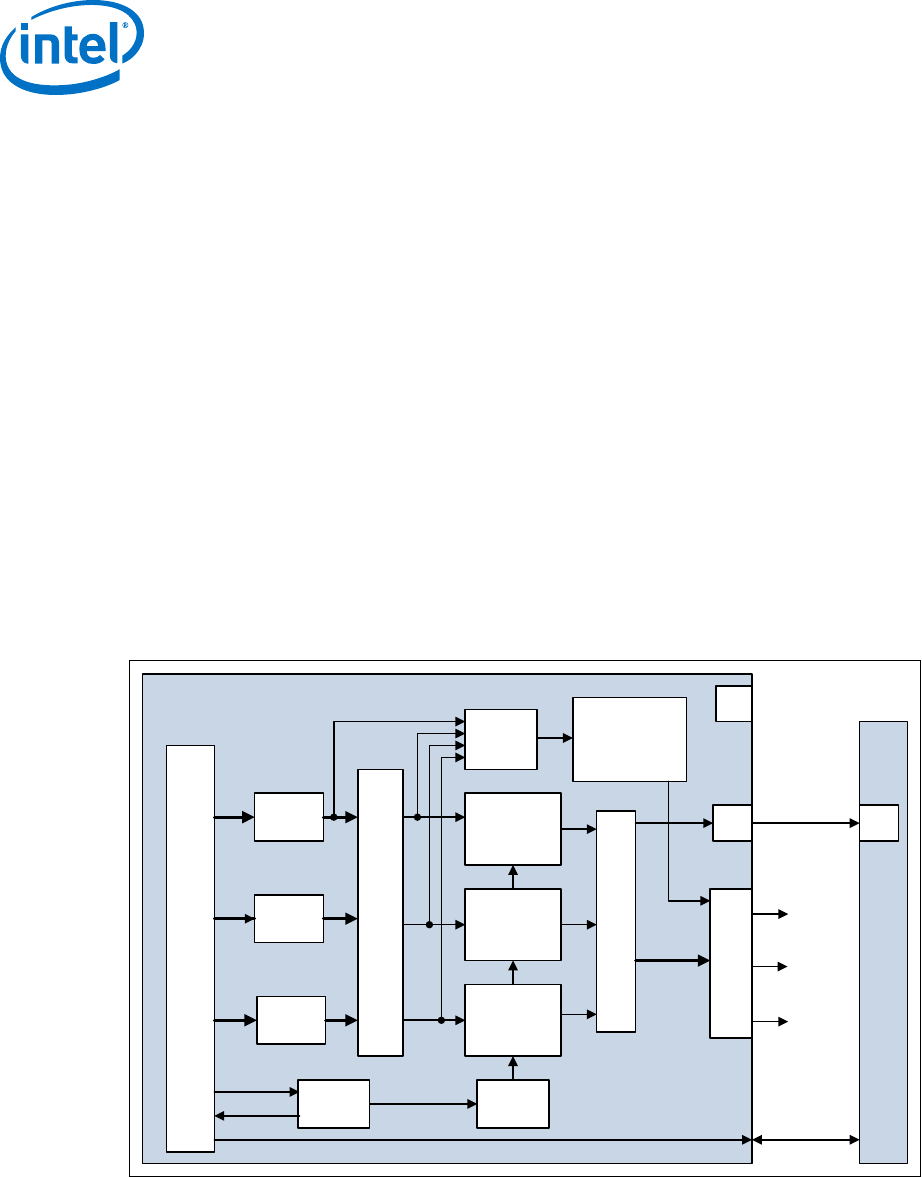

Figure 6. Processor Display Architecture
Memory \ Config Interface
Display
Pipe A
Display
Pipe B
Display
Pipe C
Panel Fitting
HD Audio
Controller
Transcoder A
DP / HDMI
Timing, VDIP
Transcoder B
DP / HDMI
Timing, VDIP
Transcoder C
DP / HDMI
Timing, VDIP
eDP* Mux
Transcoder eDP*
DP encoder
Timing, VDIP
DPT, SRID
Port Mux
Audio
Codec
DP
Aux
PCH Display
DDI Ports B, C, and D
DP /
HDMI /
DVI
DP /
HDMI /
DVI / eDP
FDI
FDI
RX
DP /
HDMI /
DVI
D
C
B
Display is the presentation stage of graphics. This involves:
• Pulling rendered data from memory
• Converting raw data into pixels
• Blending surfaces into a frame
Processor—Interfaces
Desktop 4th Generation Intel
®
Core
™
Processor Family, Desktop Intel
®
Pentium
®
Processor Family, and Desktop Intel
®
Celeron
®
Processor Family
Datasheet – Volume 1 of 2 December 2013
32 Order No.: 328897-004
