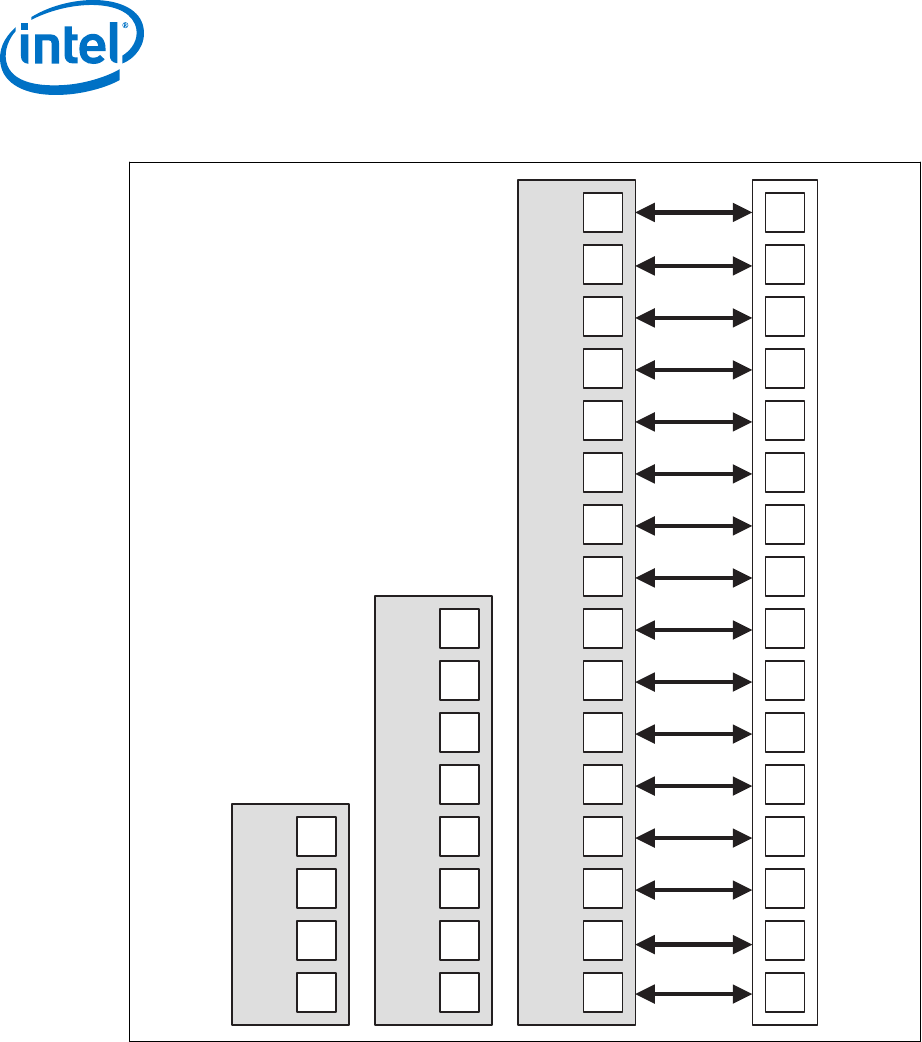

Figure 4. PCI Express* Typical Operation 16 Lanes Mapping
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1 X 16
Co
ntroller
Lane 0
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Lane 1
Lane 2
Lane 3
Lane 4
Lane 5
Lane 6
Lane 7
Lane 8
Lane 9
Lane 10
Lane 11
Lane 12
Lane 13
Lane 14
Lane 15
0
1
2
3
4
5
6
7
1 X 8 Controller
0
1
2
3
1 X 4 Cont
ro
ller
Direct Media Interface (DMI)
Direct Media Interface (DMI) connects the processor and the PCH. Next generation
DMI2 is supported.
Note: Only DMI x4 configuration is supported.
• DMI 2.0 support.
• Compliant to Direct Media Interface Second Generation (DMI2).
• Four lanes in each direction.
