4.7.1 A.C. Test Conditions
A.C. values are derived using the 50 pF load shown in Figure 8. Figure 25, “Output Delay or Hold vs.
Load Capacitance” on page 52
, shows how timings vary with load capacitance. Input waveforms
(except for CLKIN) are assumed to have a rise and fall time of ≤ 2ns from 0.8V to 2.0V.

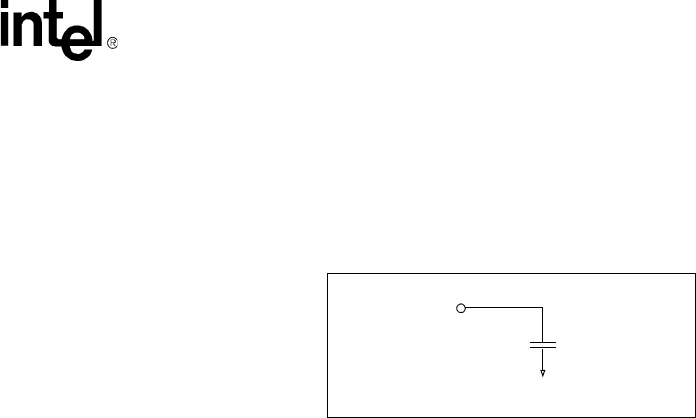

Figure 8. A.C. Test Load
Output Pin
C
L
= 50 pF for all signals
C
L
