64-bit Intel Xeon Processorwith 1MB L2 Cache Thermal/Mechanical Design Guidelines

R
64-bit Intel
®
Xeon™ Processor MP with 1 MB L2 Cache 49
Thermal/Mechanical Design Guidelines
D Quality and Reliability
Requirements
D.1 Intel Verification Criteria for the Reference Designs
D.1.1 Reference Heatsink Thermal Verification
The Intel reference heatsinks will be verified within specific boundary conditions based on the
methodology described in Appendix B.
The test results, for a number of samples, are reported in terms of a worst-case mean + 3σ value for
thermal characterization parameter using real processors.
D.1.2 Environmental Reliability Testing
D.1.2.1 Structural Reliability Testing
Structural reliability tests consist of unpackaged, board-level vibration and shock tests of a given
thermal solution in assembled state, as well as long-term reliability testing (temperature cycling,
bake test). The thermal solution should be capable of sustaining thermal performance after these
tests are conducted; however, the conditions of the tests outlined here may differ from the
customers’ system requirements.
D.1.2.2 Random Vibration Test Procedure
• Duration: 10 min/axis, 3 axes
• Frequency Range: 5 Hz to 500 Hz
• Power Spectral Density (PSD) Profile: 3.13 G RMS (refer to Figure D-1).

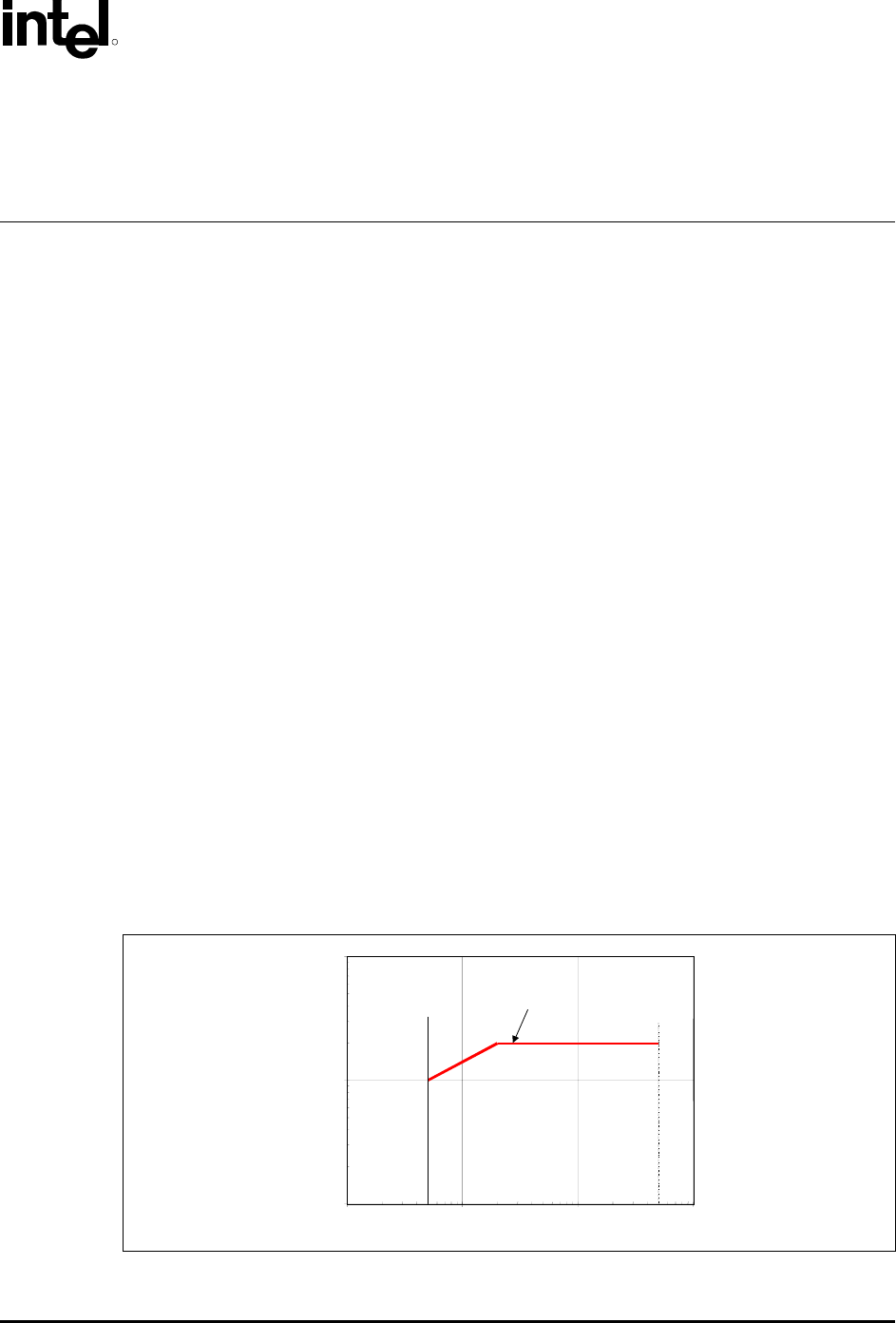

Figure D-1. Random Vibration PSD
0.001
0.01
0.1
1 10 100 1000
Frequency (Hz)
PSD (g^2/Hz)
3.13 GRMS (10 Minutes Per Axis)
5 Hz
500 Hz
(5, 0.01)
(20, 0.02) (500, 0.02)
