Thermal Profile between the T
CASE
MAX@T
CONTROL
and T
CASE
MAX points at the corresponding
power levels.
Refer to Section 2.3.1 for the implementation of the T
CONTROL
value in support of fan speed control
(FSC) design to achieve better acoustic performance.
2.2.3 Performance Targets
The Thermal Profile specification for this processor is published in the 64-bit Intel
®
Xeon™
Processor MP with 1 MB L2 Cache Datasheet. The Thermal Profile specification is shown as a
reference in the subsequent discussions.

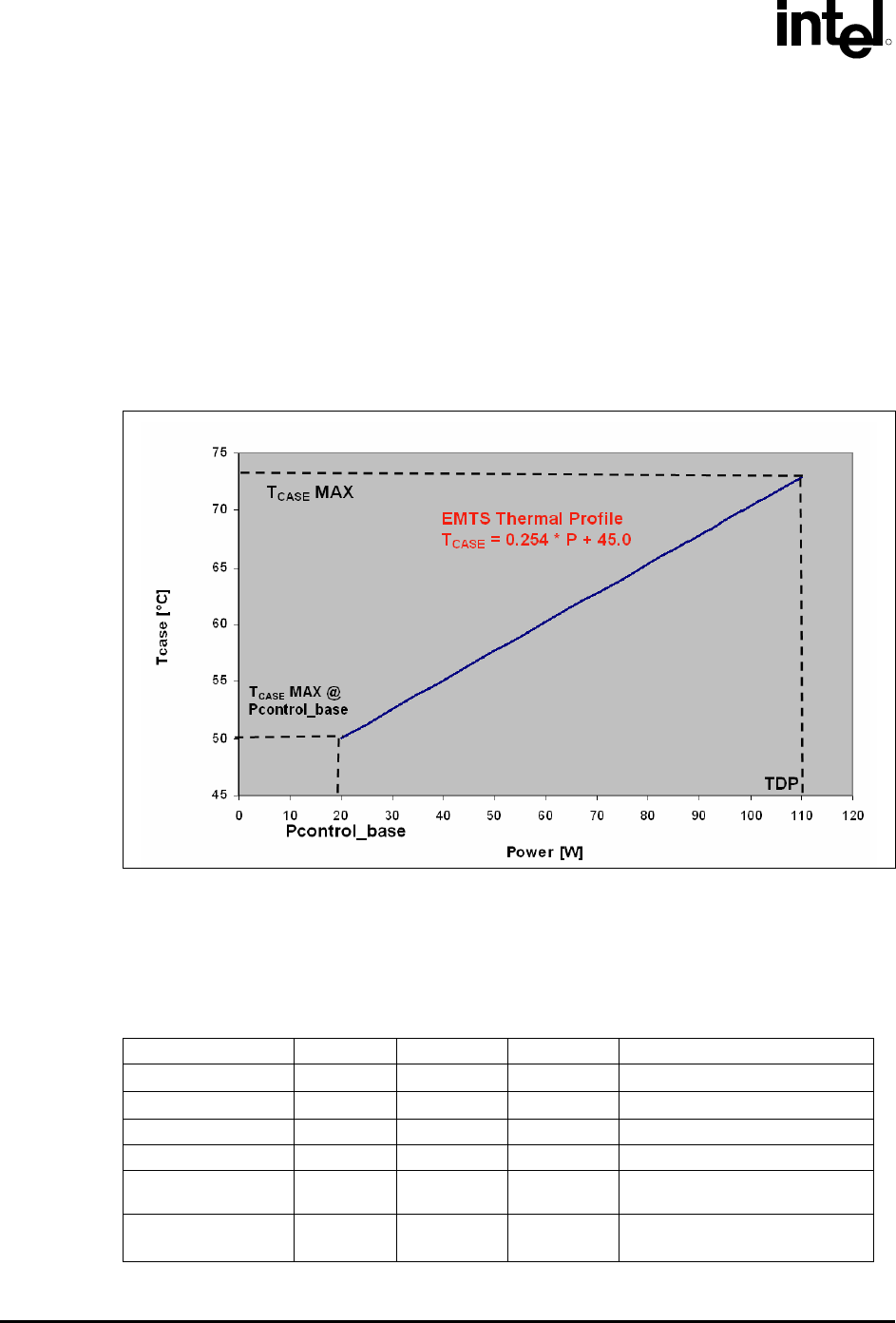

Figure 2-5. Thermal Profile for the 64-bit Intel
®
Xeon™ Processor MP with 1 MB L2 Cache
NOTE: The thermal specification shown in this graph is for reference only. Refer to the 64-bit Intel
®
Xeon™
Processor MP with 1 MB L2 Cache Datasheet for the Thermal Profile specification. In case of conflict,
the data information in the datasheet supersedes any data in this figure.
Table 2-2 describes thermal performance targets for the processor cooling solution enabled by Intel.
Table 2-2. Performance Target Table (Sheet 1 of 2)
Parameter Minimum Maximum Unit Notes
Ψ
CA
0.299 °C/W
Mean + 3 σ (non-uniform heating)
Pressure Drop 0.15 In. H
2
O
Altitude Sea-level Heatsink designed at 0 meters
Airflow 23 CFM Airflow through the heatsink fins
TIM-2 Dispense
Weight
400 mg Shin-Etsu*G751. Dispense weight
is an approximate target.
TIM-2 Compressive
Load
33
147
50
222
lbf
N
Generated by the cooling solution.
