Testing Methods
R
42 64-bit Intel
®
Xeon™ Processor MP with 1 MB L2 Cache
Thermal/Mechanical Design Guidelines

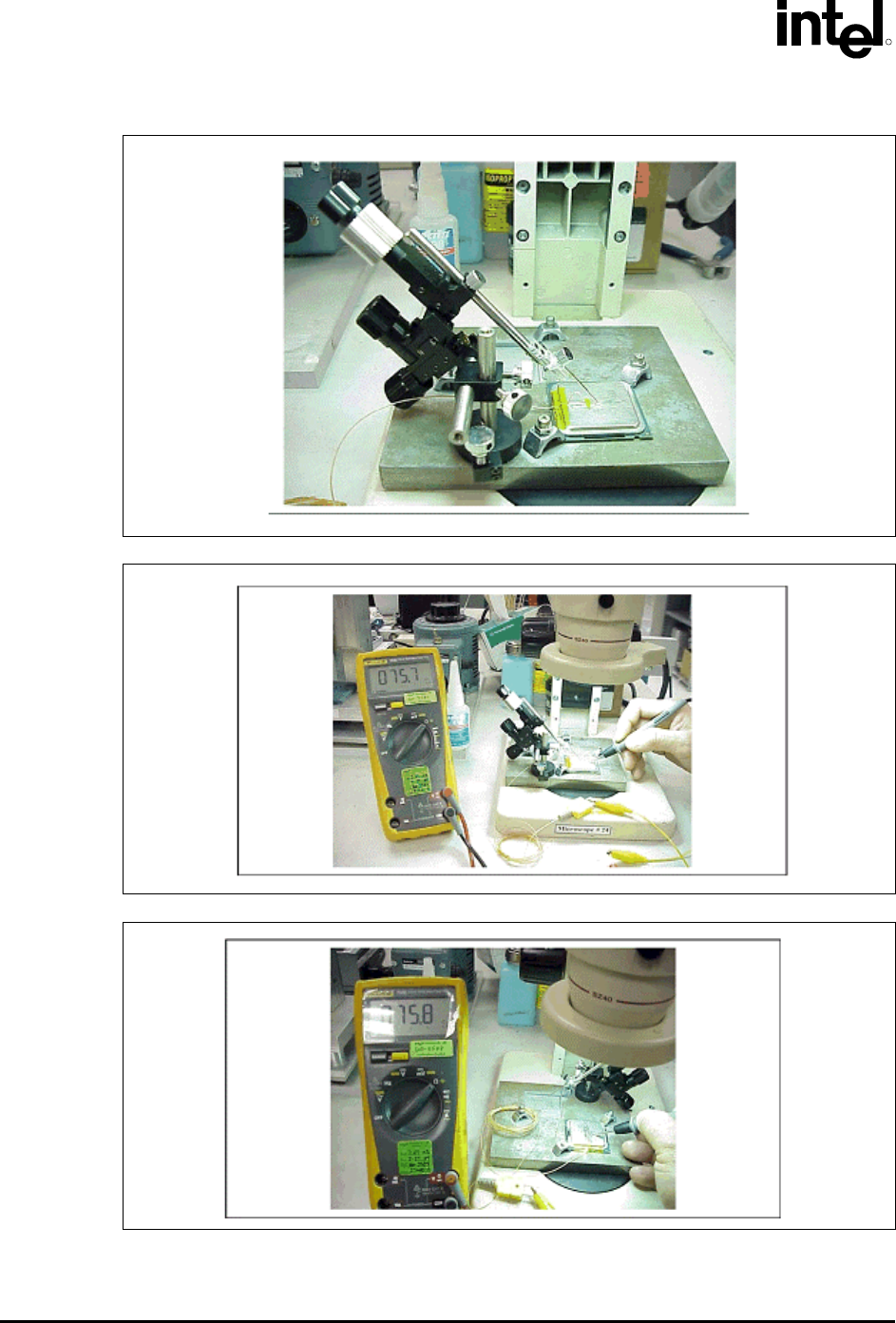

Figure B-8. 3D Micromanipulator to Secure Bead Location
Figure B-9. Measuring Resistance between Thermocouple and IHS
Figure B-10. Applying the Adhesive on the Thermocouple Bead
