Installation Guide

Mounting Adaptor (#11599-B)
Installation Instructions
1. Place the flat gasket (2) on the sink bowl
connection lip. Insert ten screws (1)
through the sink bowl connection lip,
flat gasket (2), and adaptor flange (3).
With screws protruding through the
adaptor flange (3), attach ten washers (4)
and ten nuts (5). Tighten all screws evenly.
2. Place mounting flange (6) over the
adaptor flange connection lip (3). Push
mounting flange (6) up out of the way
and fit inside groove of the mounting
gasket (7) onto the adaptor flange
connection lip (3).
3. Move mounting flange (6) down over
mounting gasket (7). Be certain that the
threaded fasteners in the mounting
flange (6) fit into recesses in the top of
the mounting gasket (7).
4. Attach two screws (8) through opposite
holes in the mounting gasket (7), and
into the threaded fasteners in the
mounting flange (6). The screws (8)
should be protruding approximately
1/4 inch below the mounting gasket (7).
5. Position the disposer beneath the
mounting gasket (7) and engage the two
protruding screws in the keyhole slots
in the disposer body flange. Assemble
the remaining four screws (8) and turn
the disposer into place for plumbing
connections. Tighten all screws evenly
to secure the unit.
Part No. 13966-N October 2007

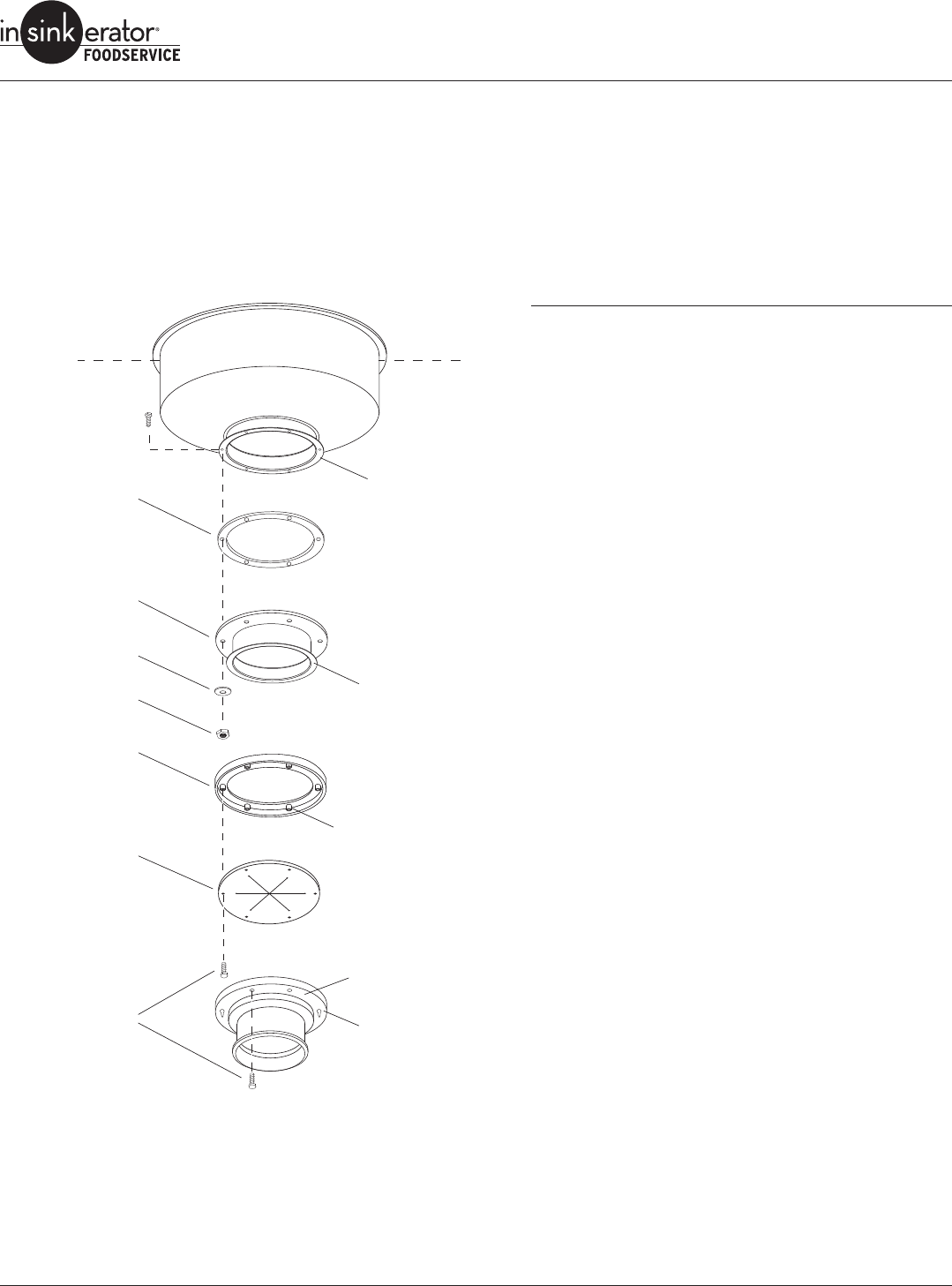

(1) Screw
(#1468)
(2) Flat Gasket
(#12614)
(3) Adaptor Flange
(#12664-A)
(4) Washer
(#11444)
(5) Nut
(#11179)
(6) Mounting Flange
(#11004-C)
(7) Mounting Gasket
(#11341)
(8) Screw
(#1491)
Disposer
Body Flange
Threaded Fasteners
Sink Bowl
Connection Lip
Adaptor Flange
Connection Lip
Keyholes
Sink
This adaptor will fit a sink opening of:
7" I.D. and 8-1/2" O.D.
with 8-1/16" bolt hole circle (10 bolts)
