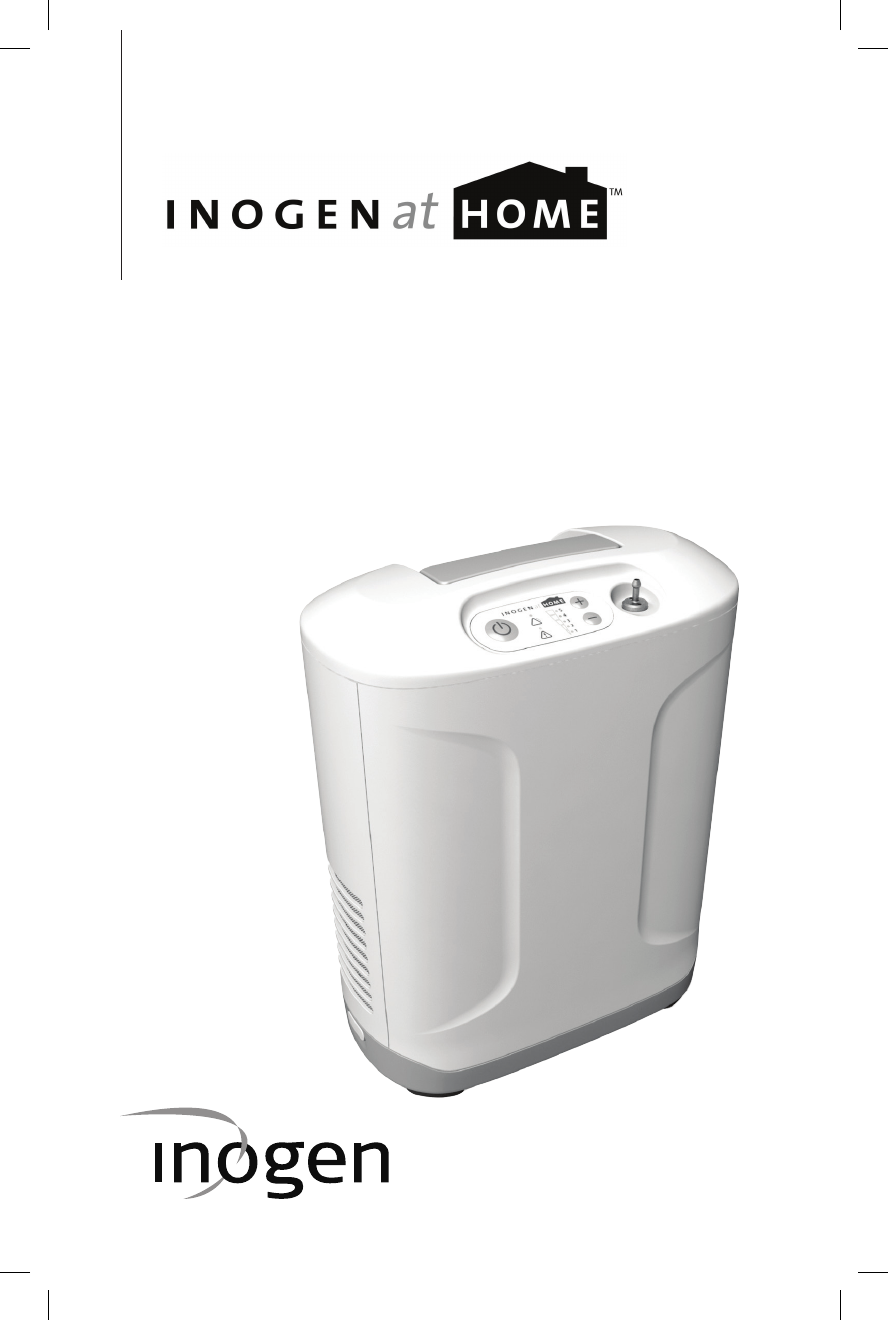

user manual ® 1
Contents Chapter 1 1 Glossary of Symbols Chapter 2 2 2 2 3 Warnings, Cautions and Contraindications Contraindications Warnings Cautions Chapter 3 4 4 Indications for Use Indications for Use Chapter 4 4 4 5 5 User Interfaces, Controls and Serviceable Items User Interfaces User Controls Serviceable Items Chapter 5 6 Operating Instructions Chapter 6 7 Audible and Visual Indicators Chapter 7 10 Troubleshooting Chapter 8 10 10 11 11 11 12 13 Cleaning, Care and Maintenance
1. Glossary of Symbols Symbol Key WARNING CAUTION A warning indicates that the personal safety of the patient may be involved. Disregarding a warning could result in significant injury A caution indicates that a precaution or service procedure must be followed. Disregarding a caution could lead to a minor injury or damage to equipment U.S. Federal Regulation Restricts this device to sale by order of physician.
2. Warnings, Cautions and Contraindications Contraindications • This equipment is to be used as an oxygen supplement and is NOT INTENDED to be life supporting or life sustaining. Warnings • • • • • • • • • 2 The device produces concentrated oxygen gas which accelerates combustion. DO NOT USE THE DEVICE WHEN SMOKING OR NEAR OPEN FLAME, MATCHES, PETROLEUM, OIL, GREASE, SOLVENTS, RADIANT HEATERS, AEROSOLS etc.
• • To avoid danger of choking and strangulation hazard, keep tubing away from children and pets. If you begin to feel ill or are experiencing discomfort while using the oxygen concentrator, consult your health care provider immediately.
In order to ensure a safe installation and operation of the Inogen At Home Oxygen Concentrator Model GS-100, read and understand this entire manual before using the device. The Inogen At Home Oxygen Concentrator has a 5 year expected life except 1 year expected life for user serviceable sieve bed columns. 3. Indications for Use The Inogen At Home Oxygen Concentrator is used on a prescriptive basis by patients requiring supplemental oxygen.
User Interfaces Audible Indicators An audible alarm (beep) indicates either a change in operating status or a condition that may need response (alarm). More frequent beeps indicate higher priority conditions. Flow Setting Indicator A green indicator light indicates the selected flow setting. User Controls ON / OFF Button Press once to turn “ON”; Press and hold for one second to turn “OFF”.
5. Operating Instructions Nozzle Fitting 2. 3. 4. 4A1 1. 5. 6. 7. 8. 9. 6 Place the concentrator in a well-ventilated location; air intake and exhaust must have clear access. Ensure that the concentrator is at least 6 inches (15 cm.) away from walls, furniture and curtains that could impede adequate airflow to the device. Ensure particle filter is in place. Ensure intake filter is in place. Follow instructions A or B below: A.
6. Audible and Visual Indicators Blue Indicator Light Flow Setting Indicator Yellow Indicator Light The concentrator has an audible alarm and three visual indicators (green, yellow and blue). Notifications The concentrator monitors various parameters during operation and utilizes an intelligent alarm system to indicate a malfunction of the concentrator.
Low Priority Alarms The following low priority alarm messages are accompanied by a double beep and a solid yellow light. Indicator Condition Action/ Explanation 4 Low Oxygen Concentrator is producing oxygen at a slightly decreased level. Contact your equipment provider to arrange service. 3 Service Needed The concentrator is operating to specification but requires service at the earliest convenience. Contact your equipment provider to arrange service.
High Priority Alarms The following high priority alarm messages are accompanied by a five beep pattern, repeated every 10 seconds and a flashing yellow light warning indicating immediate response by the operator is required. Indicator Condition Action/ Explanation 5 Fire Hazard Smoke has been detected inside the device and device is shutting down. Allow the concentrator to air out in a smoke-free environment and restart.
7. Troubleshooting Contact your home care provider if you need assistance with the device.
Filter Cleaning and Replacement The particle filter must be cleaned weekly to ensure the ease of air flow. Remove filter from the side of the device. Clean the particle filter with a mild liquid detergent (such as DawnTM) and water; rinse in water and dry before reuse. Ensure the filter is completely dry before reinstalling into the concentrator. Particle Filter Air Inlet Filter Replace when filter is dirty according to visual indicator.
For assistance, if needed, in setting up, using, maintaining, or reporting unexpected operation or events, contact your equipment provider, or the manufacturer. Column Change Procedure There are two columns (metal tubes) on the concentrator located behind the particle filter. These two columns will be removed and replaced when service is required. Ensure adequate time to complete all steps without disruption is allotted when performing this maintenance. 1.
Storage When not in use, store indoors away from excessive moisture and temperatures. Storage conditions outside of range specified may result in damage and device malfunction. Disposal of Equipment and Accessories Follow your local governing ordinances for disposal and recycling of the concentrator and accessories. 9. Specifications, Inogen At Home, Model GS-100 Dimensions: 16.
Guidance and Manufacturer’s Declaration - Electromagnetic Immunity: The Concentrator is intended for use in the electromagnetic environment specified below. The user of the Concentrator should make sure it is used in such an environment.
NOTE At 80 MHz and 800 MHz, the higher frequency range applies. NOTE These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects, and people. NOTE UT is the a.c. main voltage prior to application of the test level.
® ©2015 Inogen. All rights Reserved. Inogen, Inc. 326 Bollay Drive Goleta, CA 93117 Toll Free: 877-466-4362 +1-805-562-0515 (Outside the USA) 0473 E-mail: info@inogen.net www.inogen.
