User Manual

4.5.4. Changing the battery
It is imperative to use a battery authorized by Ingenico.
There is danger of explosion if battery used is not approved by Ingenico.
• Remove the portable from its base
• Turn it off by pressing simultaneously and (yellow key) for about one
second
• Remove the cover of the battery housing (see section 4.5.1 “installing battery”)
• Lift the battery and remove it from its compartment
• Carefully disconnect battery, following the
instructions below.

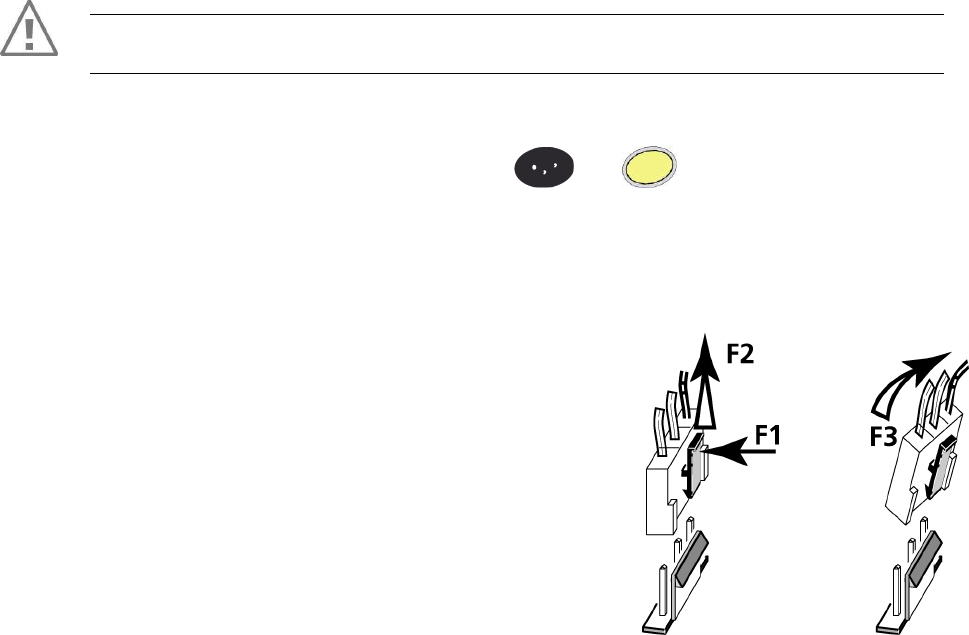

a) Unlock the connector by pressing the locking
mechanism as indicated by F1 arrow while pulling
wires (F2 arrow), to disconnect the connector.
Release traction on it as soon as the connector
comes unclipped
b) Finish extracting connector by tilting it slightly
(F3 arrow) to bring it away from the terminal
housing
• Inform the terminal that its battery has been changed. Do so by starting the
terminal without battery and fitting it on its base
• Connect and install the new battery by following the instructions in section 4.5.1
“Installing battery”
• Close the battery cover flap and charge the battery. See section "4.5.3 “Charging
the Battery"
• In order to preserve the environment, dispose of used batteries in compliance with
current recycling legislation in the country
• If the terminal is stored for a long time (more than two months), remove the
battery from the terminal
The terminal memorizes that there is no battery simply by powering up. It will then
correctly perform with the next battery.
