4.5. Battery
4.5.1. Main characteristics
Characteristics NimH 1500 mAh
Li-ion 1700 mAh
Capacity* Up to 300 transactions typical Up to 340 transactions typical
Charge
50% capacity in 2 h; full
capacity in about 8 hours
50% capacity in 1.5 h; full capacity
in 4 hours
Autonomy Up to 300 h in stand by
up to 340 h in stand by
* The battery capacity depends on the model of terminal and its use
4.5.2. Installing the battery
WARNING
Switch off the terminal prior to connecting the battery.

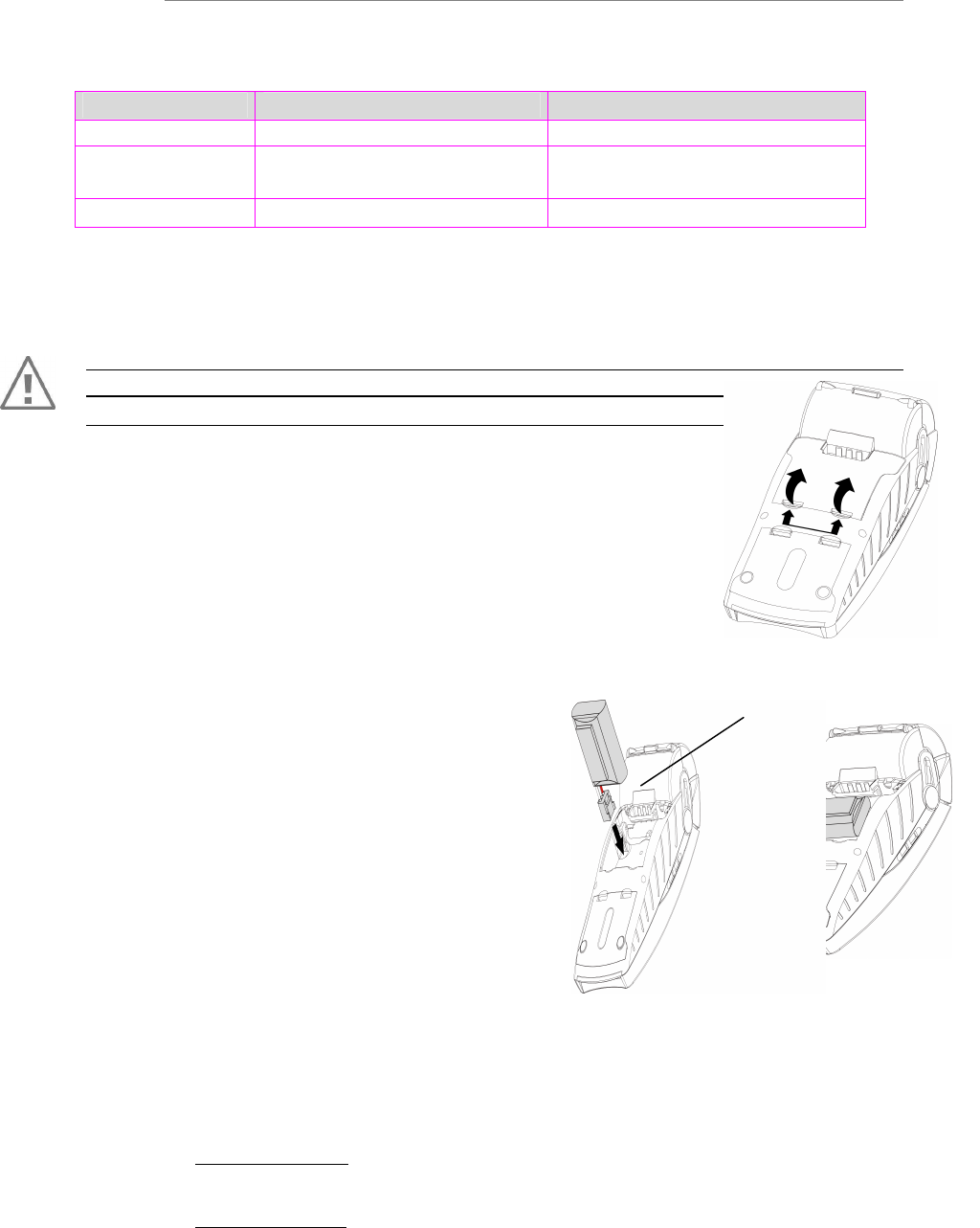

• Turn your terminal and unclip the cover flap battery by
pushing on the clips with your nails as shown on the picture
• Disengage the cover
• Take the battery pack included in the box
• Locate the battery pack connector fool proofing
and the board connector located under the battery
compartment
• Plug the battery pack connector on the
board according to the connector locating system and
the red wire (as shown on figure).
Verify that it locks
• Place the battery pack in its compartment
• Close the battery compartment cover flap
4.5.3. Charging the battery
 When does the battery need to be charged?
• On initial start up, charge the battery for 16 hours under the environmental
conditions stated above
• When used daily, the terminal recharges its batteries each time it is placed on
its base . Charging is automatic
• A completely discharged battery requires up to 8 hours for a complete
recharge according to the type of battery
Red wire
