Projector User's Manual

Connection 15
Connecting a monitor
If you want to view your presentation close-up on a monitor as well as on the
screen, you can connect the D-SUB OUT signal output socket on the projector to
an external monitor with a VGA or VGA to DVI-A cable by following the instructions
below.
To connect the projector to a monitor (either through a VGA cable
or VGA to DVI-A cable):

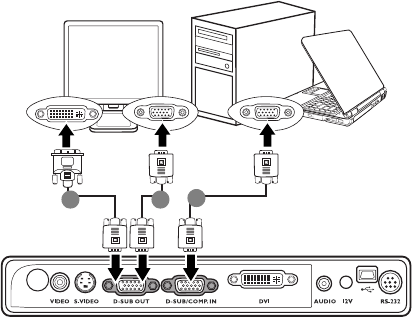

The final connection path should be like that shown in the following diagram:
• With a VGA cable: • With a VGA to DVI-A cable:
Note: Your monitor must be equipped with
a DVI input socket.
1. Connect the projector to a computer as described in "Connecting a
computer" on page 13.
The D-SUB output only works when an appropriate D-SUB input is made
to the projector. Be sure the projector is connecting with the computer
using the D-SUB/COMP. IN socket, not the DVI socket.
2. Take a suitable VGA cable (only
one supplied) and connect one
end of the cable to the D-Sub
input socket of the video
monitor.
3. Connect the other end of the
cable to the D-SUB OUT socket
on the projector.
2. Take a VGA to DVI-A cable and
connect the DVI end of the cable
to the DVI input socket of the
video monitor.
3. Connect the VGA end of the
cable to the D-SUB OUT socket
on the projector.
Notebook or desktop computer
(VGA)
(DVI)
iii
iii
i. VGA to DVI-A
cable
ii. VGA cable
iii. VGA cable
