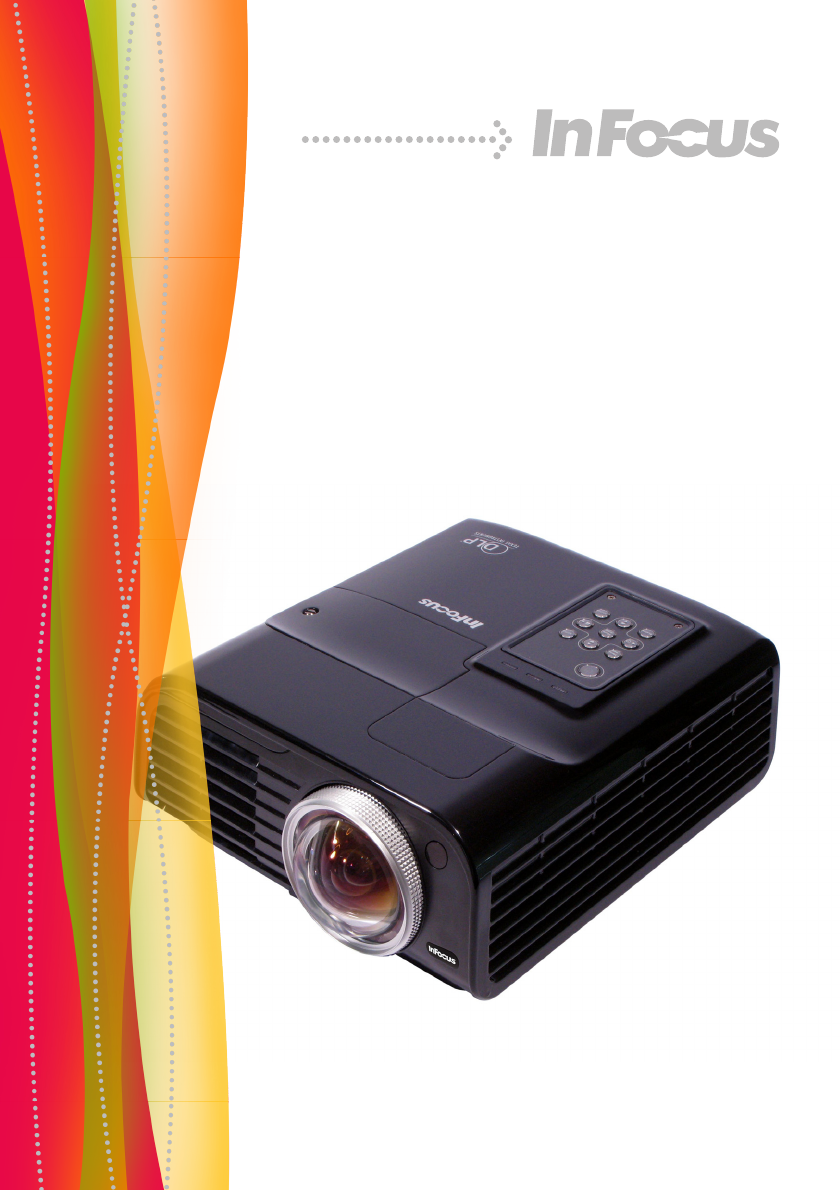

XS1 Reference Guide
Table of contents Introduction.................. 3 Projector features........................... 3 Shipping contents .......................... 4 Projector exterior view ................... 5 Controls and functions ................... 6 Positioning your projector ....................... 9 Hiding the image.......................... 40 Operating in a high altitude environment ................................. 40 Adjusting the sound ..................... 41 Personalizing the projector menu display...........
Introduction Projector features The projector integrates high-performance optical engine projection and a userfriendly design to deliver high reliability and ease of use. The projector offers the following features.
Shipping contents The projector is shipped with the cables required for connection to a PC or video equipment. Carefully unpack and verify that you have all of the items shown below. If any of these items are missing, please contact your place of purchase. Standard accessories The supplied accessories will be suitable for your region, and may differ from those illustrated.
Projector exterior view Front/upper side 5 1 1. 2. 3. 4. 5. 6 6. 7. 7 8. 8 9. 10. 2 3 4 PU SH 11. 12. 13. 14. 15. 16. 17. Rear/lower side 13 14 15 16 17 18 19 20 21 22 9 10 18. 19. 20. 11 12 4 23 21. 22. 23. Lamp cover Vent (heated air exhaust) Projection lens Quick-release button External control panel (See "Projector" on page 6 for details.
Controls and functions Projector 7. 1 8 2 3 4 9 5 10 6 11 7 12 13 9 1. 2. 3. 4. 5. 6. 6 BLANK Used to hide the screen image. See "Hiding the image" on page 40 for details. 8. LAMP indicator light Indicates the status of the lamp. Lights up or flashes when the lamp has developed a problem. See "Indicators" on page 56 for details. 9. Keystone/Arrow buttons ( / Up, / Down) Manually corrects distorted images resulting from an angled projection. See "Correcting keystone" on page 30 for details.
Remote control 5. 6 1 7 2 8 3 9 4 10 6. 11 7 7. 5 1. 2. 3. 4. 8. Power Toggles the projector on or off. See "Starting up the projector" on page 22 and "Shutting down the projector" on page 42 for details. 9. FREEZE Freezes the projected image. See "Freezing the image" on page 39 for 10. details. Left When the On-Screen Display (OSD) menu is activated, the #3, #7 and #9 11. buttons are used as directional arrows to select the desired menu items and to make adjustments.
Remote control effective range Infra-Red (IR) remote control sensors are located on the front and the back of the projector. The remote control must be held at an angle within 30 degrees perpendicular to the projector's IR remote control sensors to function correctly. The distance between the remote control and the sensors should not exceed 8 meters (~ 26 feet). Make sure that there are no obstacles between the remote control and the IR sensors on the projector that might obstruct the infra-red beam.
Positioning your projector Choosing a location Your projector is designed to be installed in one of four possible installation locations: 1. Front Table Select this location with the projector placed near the floor in front of the screen. This is the most common way to position the projector for quick setup and portability. 2. Front Ceiling Select this location with the projector suspended upside-down from the ceiling in front of the screen.
Obtaining a preferred projected image size The distance from the projector lens to the screen, the zoom setting, and the video format each factors in the projected image size. 4:3 is the native aspect ratio of this projector. To be able to project a complete 16:9 (widescreen) aspect ratio image, the projector can resize and scale a widescreen image to the projector's native aspect width. This will result in a proportionally smaller height equivalent to 75% of the projector's native aspect height.
InFocus has provided a table of 4:3-aspect-ratio screen sizes to assist you in determining the ideal location for your projector. There are two dimensions to consider, the perpendicular horizontal distance from the center of the screen (projection distance), and the vertical offset height of the projector from the horizontal edge of the screen (offset). How to determine the position of the projector for a given screen size 1. 2. Select your screen size.
4:3 Screen Diagonal Screen Center of lens Offset Projection distance 4:3 screen diagonal Feet Inches mm 6 72 7 8 84 96 9 108 1692 1829 2000 2134 2438 2500 2743 3000 3007 Recommended projection distance from screen in mm Vertical offset in mm 900 973 1064 1135 1297 1330 1459 1596 1600 101 110 120 128 146 150 165 180 180 There is 3% tolerance among these numbers due to optical component variations.
Connection When connecting a signal source to the projector, be sure to: 1. 2. 3. Turn all equipment off before making any connections. Use the correct signal cables for each source. Ensure the cables are firmly inserted. In the connections shown below, some cables may not be included with the projector (see "Shipping contents" on page 4). They are commercially available from electronics stores.
The final connection path should be like that shown in the following diagram: Notebook or desktop computer i. VGA cable ii. VGA to DVI-A cable i or ii iii iii. Audio cable Many notebooks do not turn on their external video ports when connected to a projector. Usually a key combo like FN + F3 or CRT/LCD key turns the external display on/off. Locate a function key labeled CRT/LCD or a function key with a monitor symbol on the notebook. Press FN and the labeled function key simultaneously.
Connecting a monitor If you want to view your presentation close-up on a monitor as well as on the screen, you can connect the D-SUB OUT signal output socket on the projector to an external monitor with a VGA or VGA to DVI-A cable by following the instructions below. To connect the projector to a monitor (either through a VGA cable or VGA to DVI-A cable): • With a VGA cable: • With a VGA to DVI-A cable: Note: Your monitor must be equipped with a DVI input socket. 1.
Connecting Video source devices This section describes how to connect the projector to Video source devices using video cables. Video cable connections are recommended for Video presentations.
Connecting a DVI source device The projector provides a DVI input socket that allows you to connect it to a DVI source device like a DVD player, or a VGA output device like a notebook or desktop computer. There are three types of DVI connectors: DVI-A, DVI-D, and DVI-I. The DVI-I socket is an integrated connector which supports both formats: DVI-A, and DVI-D. DVI-A format is used to carry a DVI signal to an analog (VGA) display, or viceversa.
The final connection path should be like that shown in the following diagram: AV device DVI-D or DVI-I cable Audio cable In the unlikely event that you connect the projector to a DVD player via the projector’s DVI-D input and the projected picture displays wrong colors, please change the color space to YUV. See "Changing Color Space" on page 28 for details.
Connecting a Component Video source device Examine your Video source device to determine if it has a set of unused Component Video output sockets available: • • If so, you can continue with this procedure. If not, you will need to reassess which method you can use to connect to the device. To connect the projector to a Component Video source device: 1.
Connecting an S-Video source device Examine your Video source device to determine if it has an unused S-Video output socket available: • • If so, you can continue with this procedure. If not, you will need to reassess which method you can use to connect to the device. To connect the projector to an S-Video source device: 1. Take an S-Video cable and connect one end to the S-Video output socket of the Video source device. 2.
Connecting a composite Video source device Examine your Video source device to determine if it has a set of unused composite Video output sockets available: • • If so, you can continue with this procedure. If not, you will need to reassess which method you can use to connect to the device. To connect the projector to a composite Video source device: 1. Take a Video cable and connect one end to the composite Video output socket of the Video source device. 2.
Operation Starting up the projector 1. Plug the power cord into the projector and into a wall socket. Turn on the wall socket switch (where fitted). Check that the Power indicator on the projector lights orange after power has been applied. 2. Remove the lens cover. If it is left on, it could become deformed due to the heat produced by the projection lamp. PU SH 3. Press II Power on the projector or remote control to start the projector.
Using the menus The projector is equipped with On-Screen Display (OSD) menus for making various adjustments and settings. Below is the overview of the OSD menu. Main menu icon Main menu DISPLAY Wall Color Off Aspect Ratio Keystone Highlight Auto ENTER Status Position Sub-menu Phase 0 H. Size 0 Press Menu/ Exit to the previous page or to exit. Digital Zoom Current input signal Analog RGB MENU Exit To use the OSD menus, please set the OSD menu to your familiar language first. 1.
Securing the projector Using a security cable lock The projector has to be installed in a safe place to prevent theft. Otherwise, purchase a lock, such as the Kensington lock, to secure the projector. You can locate a Kensington lock slot on the rear side of the projector. See item 10 on page 5 for details. A Kensington security cable lock is usually a combination of key(s) and the lock. Refer to the lock’s documentation for finding out how to use it.
Setting a password Once a password has been set and the power on lock is activated, the projector cannot be used unless the correct password is entered every time the projector is started. Once a password has been set and the splash screen lock is activated, you cannot change the splash screen that displays at projector startup unless the correct password is entered. 1. 2. 3. 4. 5. 6. Open the OSD menu and go to the SYSTEM SETUP: Advanced > Security Settings menu. Press Mode/Enter.
Entering the password recall procedure Press and hold AUTO on the projector or remote control for 3 seconds. The projector will display a coded number on the screen. Write down the number and turn off your projector. Seek help from the local service center to decode the number. You may be required to provide proof of purchase documentation to verify that you are an authorized user of the projector. RECALL PASSWORD Please write down the recall code, and contact InFocus Customer Center.
ii. If the password is incorrect, the password error message displays lasting for three seconds, and the message 'INPUT PASSWORD' displays for your retry. You can press Menu/Exit to cancel the change or try another password. Though the password function is disabled, you need to keep the old password in hand should you ever need to re-activate the password function by entering the old password. Switching input signal The projector can be connected to multiple devices at the same time.
Changing Color Space In the unlikely event that you connect the projector to a DVD player via the projector’s DVI-D input and the projected picture displays wrong colors, please change the color space to YUV. To do this: 1. 2. Press Menu/Exit and then press / until the SOURCE menu is highlighted. Press to highlight Color Space Conversion and press / to select YUV. This function is only available when the DVI-D input socket is in use.
Adjusting the projected image Adjusting the projection angle The projector is equipped with 1 quick-release adjuster foot and 1 rear adjuster foot. These adjusters change the image height and projection angle. To adjust the projector: 1. Press the quick-release button and lift the front of the projector. Once the image is positioned where you want it, release the quick-release button to lock the foot in position. 2. Screw the rear adjuster foot to fine tune the horizontal angle.
Correcting keystone Keystoning refers to the situation where the projected image is noticeably wider at either the top or bottom. It occurs when the projector is not perpendicular to the screen. To correct this, besides adjusting the height of the projector, you will need to manually correct it following ONE of these steps. • • Press / on the projector or remote control to display the Keystone correction page. Press to correct keystoning at the top of the image.
Magnifying and searching for details on the projected picture If you need to find the details on the projected picture, magnify the picture. Use the direction arrow keys for navigating the picture. • Using the remote control 1. Press Digital Zoom +/- to display the Zoom bar. Press Digital Zoom + to magnify the center of the picture. Press the key repeatedly until the picture size is suitable for your need. 2. Use the directional arrows ( , , , ) on the projector or remote control to navigate the picture. 3.
Selecting the aspect ratio The 'aspect ratio' is the ratio of the image width to the image height. Most analog TV and computers are in 4:3 ratio, which is the default for this projector, and digital TV and DVDs are usually in 16:9 ratio. With the advent of digital signal processing, digital display devices like this projector can dynamically stretch and scale the image output to a different aspect than that of the image input source.
Optimizing the image Selecting a picture mode The projector is preset with several predefined picture modes so that you can choose one to suit your operating environment and input source picture type. To select a operation mode that suits your need, you can follow one of the following steps. • Press Mode/Enter repeatedly until your desired mode is selected. • Go to the PICTURE > Preset Mode menu and press / to select a desired mode.
Setting the User 1/User 2 mode There are two user-definable modes if the current available picture modes are not suitable for your need. You can use one of the picture modes (except the User 1/2) as a starting point and customize the settings. 1. 2. 3. Press Menu/Exit to open the On-Screen Display (OSD) menu. In the PICTURE menu, highlight Preset Mode and press / to select User 1 or User 2. Press to highlight Reference Mode.
Fine-tuning the image quality in user modes According to the detected signal type, there are some user-definable functions available when User 1 or User 2 is selected. You can make adjustments to these functions based on your needs. Adjusting Brightness Highlight Brightness in the PICTURE menu and adjust the values by pressing / on the projector or remote control. The higher the value, the brighter the image. And lower the setting, darker the image.
Adjusting BrilliantColor™ Highlight BrilliantColor™ in the PICTURE menu and select by pressing the projector or remote control. / on This feature utilizes a new color-processing algorithm and system level enhancements to enable higher brightness while providing truer, more vibrant colors in picture. It enables a greater than 50% brightness increase in mid-tone images, which are common in video and natural scenes, so the projector reproduces images in realistic and true colors.
To adjust the settings: 1. 2. 3. 4. 5. Go to the PICTURE menu and highlight 3D Color Management. Press Mode/Enter and the 3D Color Management page displays. Highlight Primary Color and press / to select a color from among Red, Yellow, Green, Cyan, Blue, or Magenta. Press to highlight Hue and press / to select its range. Increase in the range will include colors consisted of more proportions of its two adjacent colors. Please refer to the illustration to the right for how the colors relate to each other.
Setting the presentation timer The presentation timer can indicate the presentation time on the screen to help you achieve better time management when giving presentations. Follow these steps to utilize this function: 1. 2. Go to the SYSTEM SETUP: Basic > Presentation Timer Presentation Timer menu and press Mode/ Timer Period 15 Timer Display Always Enter to display the Presentation Timer Timer Position Top-Left Timer Counting Direction Count Down page.
To cancel the timer, perform the following steps. 1. 2. Enter the SYSTEM SETUP: Basic > Presentation Timer menu and highlight Off. Press Mode/Enter. A confirmation message displays. Highlight Yes and press Mode/Enter to confirm. You will see the message “Timer is Off” displaying on the screen. Locking control keys With the control keys on the projector locked, you can prevent your projector settings from being changed accidentally (by children, for example).
Hiding the image In order to draw the audience's full attention to the presenter, you can use BLANK on the projector or remote control to hide the screen image. The word 'BLANK' appears in the corner of the screen while the image is hidden. When this function is activated with an audio input connected, the audio can still be heard. Once BLANK is pressed, the projector lamp enters Economic mode automatically.
Adjusting the sound The sound adjustments made as below will have an effect on the projector speaker. Be sure you have made a correct connection to the projector audio input. See "Connection" on page 13 for how the audio input is connected. Muting the sound To temporarily turn off the sound, 1. 2. 3. Press Menu/Exit and then press / until the SYSTEM SETUP: Advanced menu is highlighted. Press to highlight Audio Settings and press Mode/Enter on the projector or remote control.
Shutting down the projector 1. Press II Power and a confirmation message will display prompting you. If you don't respond in a few seconds, the message will disappear. 2. Press II Power a second time. The Power indicator light flashes orange, the projection lamp shuts down, and the fans will continue to run for approximately 90 seconds to cool down the projector. CAUTION • To protect the lamp, the projector will not respond to any commands during the cooling process.
Menu operation Menu system Please note that the on-screen display (OSD) menus vary according to the signal type selected. Main menu Sub-menu Wall Color 1. DISPLAY Aspect Ratio Keystone Position Phase H.
Timer Period Timer Display Presentation Timer 4. SYSTEM SETUP: Basic Timer Position Timer Counting Count down/Count up Direction Sound Reminder On/Off On/Off Language Projector Position Auto Power Off Blank Timer Panel Key Lock Timer Controller 5.
DISPLAY menu FUNCTION (default setting/ value) DESCRIPTION Wall Color Correct the projected picture’s color when the projection surface is not white. See "Fine-tuning the image quality in user modes" on page 35 for details. There are four options to set the image's aspect ratio depending on your input signal source. See "Selecting the aspect ratio" on page 32 for details. Corrects any keystoning of the image. See "Correcting keystone" on page 30 for details.
PICTURE menu Some picture adjustments are available only when certain input sources are in use. Unavailable adjustments are not shown on the screen. FUNCTION (default setting / value) DESCRIPTION Preset Mode Pre-defined picture modes are provided so you can optimize your projector image set-up to suit your program type. See "Selecting a picture mode" on page 33 for details.
SYSTEM SETUP: Basic menu FUNCTION (default setting / value) DESCRIPTION Presentation Timer Reminds the presenter to finish the presentation within a certain time frame. See "Setting the presentation timer" on page 38 for details. Language Sets the language for the On-Screen Display (OSD) menus. See "Using the menus" on page 23 for details. Projector Position The projector can be installed on a ceiling or behind a screen, or with one or more mirrors. See "Choosing a location" on page 9 for details.
SYSTEM SETUP: Advanced menu FUNCTION (default setting / value) DESCRIPTION Quick Cooling Enables or disables the Quick Cooling function. Selecting On enables the function and projector cooling time will be shortened from a normal 90-second duration to approximately 30 seconds. (On) High Altitude A mode for operation in high altitude areas. See "Operating in a high altitude environment" on page 40 for details.
INFORMATION menu This menu shows you the current operating status of the projector. Some picture adjustments are available only when certain input sources are in use. Unavailable adjustments are not shown on the screen. FUNCTION DESCRIPTION Source Shows the current signal source. Preset Mode Shows the selected mode in the PICTURE menu. Current System Status Resolution Shows the native resolution of the input signal. Color System Shows input system format, NTSC, PAL, SECAM, or RGB.
Maintenance Care of the projector Your projector needs little maintenance. The only thing you need to do on a regular basis is to keep the lens clean. Never remove any parts of the projector except the lamp. Contact your dealer if other parts need replacing. Cleaning the lens Clean the lens whenever you notice dirt or dust on the surface. • • Use a canister of compressed air to remove dust.
Lamp information Getting to know the lamp hour When the projector is in operation, the duration (in hours) of lamp usage is automatically calculated by the built-in timer. The method of calculating the equivalent lamp hour is as follows: Total (equivalent) lamp hour = 1 (hours used in Economic mode) + 4/3 (hours used in normal mode) See "Setting Lamp Mode as Economic" below for more information on Economic mode. The lamp hour in Economic mode is calculated as 3/4 of that in normal mode.
Timing of replacing the lamp When the Lamp indicator lights up red or a message appears suggesting it is time to replace the lamp, please install a new lamp or consult your dealer. An old lamp may cause a malfunction in the projector and in some instances the lamp may explode. CAUTION The Lamp indicator light and Temperature warning light will light up if the lamp becomes too hot. Turn the power off and let the projector cool for 45 minutes.
Replacing the lamp WARNING Hg - Lamp contains mercury. Manage in accordance with local disposal laws. See www.lamprecycle.org • To reduce the risk of electrical shock, always turn the projector off and disconnect the power cord before changing the lamp. • To reduce the risk of severe burns, allow the projector to cool for at least 45 minutes before replacing the lamp.
4. Loosen the screw that secures the lamp. 5. Lift the handle so that it stands up. Use the handle to slowly pull the lamp out of the projector. CAUTION • Pulling it too quickly may cause the lamp to break and scatter broken glass in the projector. • Do not place the lamp in locations where water might splash on it, children can reach it, or near flammable materials. • Do not insert your hands into the projector after the lamp is removed.
7. Tighten the screw that secures the lamp. CAUTION • Loose screw may cause a bad connection, which could result in malfunction. • Do not over tighten the screw. 8. Ensure the handle is fully laid flat and locked in place. 9. Replace the lamp cover on the projector. 10. Use a coin to turn the screw clockwise until the lamp cover is secured. CAUTION • Loose screw may cause a bad connection, which could result in malfunction. • Do not over tighten the screw. 11. Restart the projector.
Indicators Light Power Status & Description Temp Lamp Power events Orange Orange Orange Orange Off Off The projector has just been connected to a power outlet or the lamp door is open. Stand-by mode. Green Flashing Off Off Powering up. Green Off Off Orange Flashing Off Off Orange Flashing Off Off Normal operation. 1. The projector needs 90 seconds to cool down as it was abnormally shut down without the normal cooling down process. Or 2.
Troubleshooting The projector does not turn on. Cause Remedy There is no power from the power cable. Plug the power cord into the AC inlet on the projector, and plug the power cord into the power outlet. If the power outlet has a switch, make sure that it is switched on. Attempting to turn the projector on again during the cooling process. Wait until the cooling down process has completed. No picture Cause Remedy The video source is not turned on or connected correctly.
Specifications Projector specifications All specifications are subject to change without notice. Optical Control Resolution 1024 x 768 XGA Display system 1-CHIP DMD Lens F/Number F=2.42 (fixed) Lamp 200 W lamp USB serial control Type mini B RS-232 serial control Mini Din 8 pin x 1 Electrical Power supply AC100–240V, 3.2A, 50-60 Hz (Automatic) Power consumption 365 W (Max); 5 W (Standby) Mechanical Weight 8.8 lbs (4.
Dimensions 274.87 mm (W) x 131.30 mm (H) x 304.99 mm (D) 274.87 304.99 131.30 48.57 74.30 Timing chart Supported timing for PC (including DVI-D) input Resolution 640 x 480 720 x 400 800 x 600 1024 x 768 1280 x 768 1280 x 800 1280 x 1024 VIDEO (HDCP) Horizontal Frequency (kHz) Vertical Frequency (Hz) Pixel Frequency (MHz) 31.469 37.861 37.500 43.269 31.469 37.879 48.077 46.875 53.674 48.363 56.476 60.023 68.667 47.77 49.65 63.981 59.940 72.809 75.000 85.008 70.087 60.317 72.188 75.000 85.
Supported timing for Component-YPbPr input Horizontal Frequency (kHz) Signal Format 480i(525i)@60Hz 480p(525p)@60Hz 576i(625i)@50Hz 576p(625p)@50Hz 720p(750p)@60Hz 720p(750p)@50Hz 1080i(1125i)@60Hz 1080i(1125i)@50Hz Vertical Frequency (Hz) 15.73 31.47 15.63 31.25 45.00 37.50 33.75 28.13 59.94 59.94 50.00 50.00 60.00 50.00 60.00 50.00 Supported timing for Video and S-Video inputs Video mode NTSC PAL SECAM PAL-M PAL-N PAL-60 NTSC4.43 60 Specifications Horizontal Frequency (kHz) 15.73 15.63 15.63 15.
