IRF1404PbF
www.irf.com 9
IR WORLD HEADQUARTERS: 101N.Sepulveda blvd, El Segundo, California 90245, USA Tel: [phone]
TAC Fax: [phone]
Visit us at www.irf.com for sales contact information.04/2012
Data and specifications subject to change without notice.
This product has been designed and qualified for the Industrial market.
Qualification Standards can be found on IR’s Web site.
TO-220 package is not recommended for Surface Mount Application.

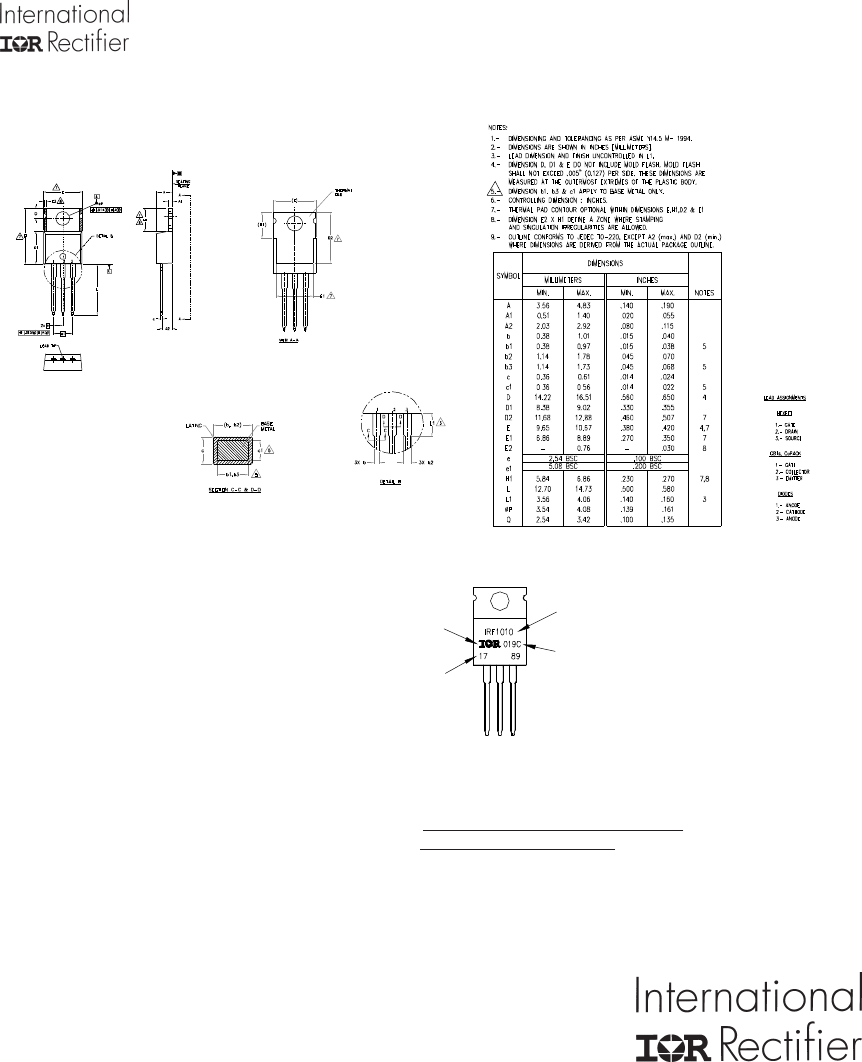

TO-220AB Package Outline
Dimensions are shown in millimeters (inches)
TO-220AB Part Marking Information
INTERNATIONAL
PART NUMBER
RECTIFIER
LOT CODE
AS S E MB L Y
LOGO
YEAR 0 = 2000
DAT E CODE
WEEK 19
LINE C
LOT CODE 1789
EXAMPLE : THIS IS AN IRF1010
Note: "P" in as s embly line pos ition
indi cates "L ead - F r ee"
IN THE ASS EMBLY LINE "C"
AS S EMBLED ON WW 19, 2000
Notes:
1. For an Automotive Qualified version of this part please see http://www.irf.com/product-info/auto/
2. For the most current drawing please refer to IR website at http://www.irf.com/package/
