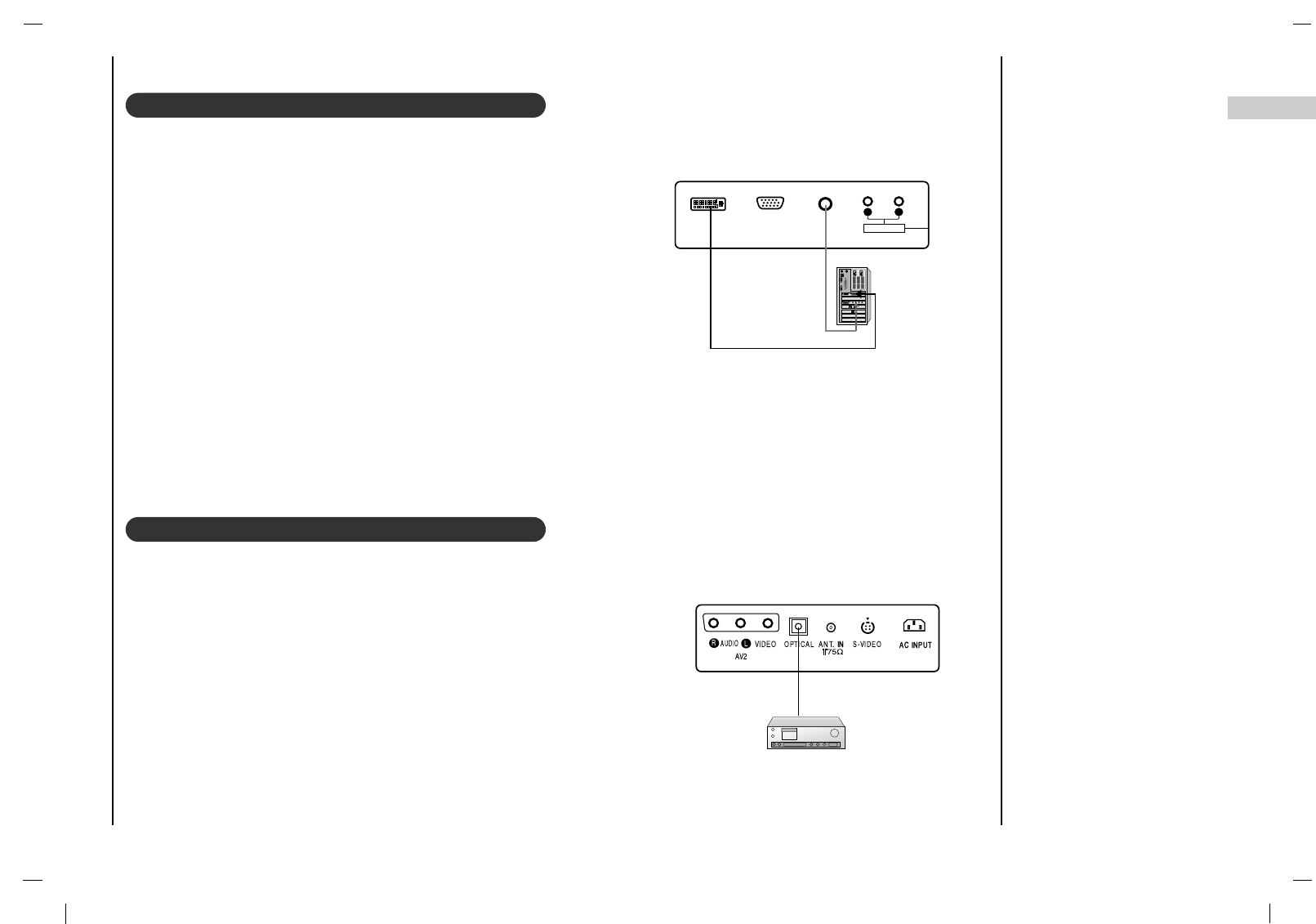

Connection to External equipment
DVI / DTV
Connect the signal cable from the monitor output socket of the PERSONAL
COMPUTER to the DVI INPUT socket of the set.
Connect the audio cable from the PC to the AUDIO INPUT sockets of the set.
Press the INPUT SELECT button to select
DVI.
Switch on the DVI, and the DVI screen appears on the set.
DVI-DTV input signal : 480p-60Hz, 576p-50Hz, 720p-50Hz, 720p-60Hz,
1080i-50Hz, 1080i-60Hz.
Note: When the set is inputted DVI-DTV signal in DTV mode, automatically it
is set to RGB-DTV mode.
DVI Interface with HDCP Copy Protection enables all-digital rendering of
video without the losses.
This TV SET can receive the High-Definition Multimedia Interface(HDMI) or
Input of Digital Visual Interface(DVI).
Digital Audio
- Send the set’s audio to external audio equipment (stereo system)
via the Digital Audio Output (Optical)
Caution : Do not look into the optical output port. Looking at the laser
beam may damage your vision.
How to connect
Connect one end of an optical cable to the TV Digital Audio (Optical)
Output port.
Connect the other end of the optical cable to the digital audio (opti-
cal) input on the audio equipment.
DVI INPUT
AUDIO INPUT
AUDIO INPUTAUDIO INPUT
AUDIOAUDIO
R L
RGB INPUT
S-VIDEOOPTICAL
ANT.IN. IN
AC INPUTAC INPUT
AV2
VIDEO
AUDIO
L
R
