User's Manual

13
EN
Connection to External equipment
OPTICALOPTICAL
ANTANT. IN
AV1
VIDEO
AUDIOAUDIO
L
R
AV2
VIDEO
AUDIOAUDIO
L
R
RL
AUDIO VIDEO

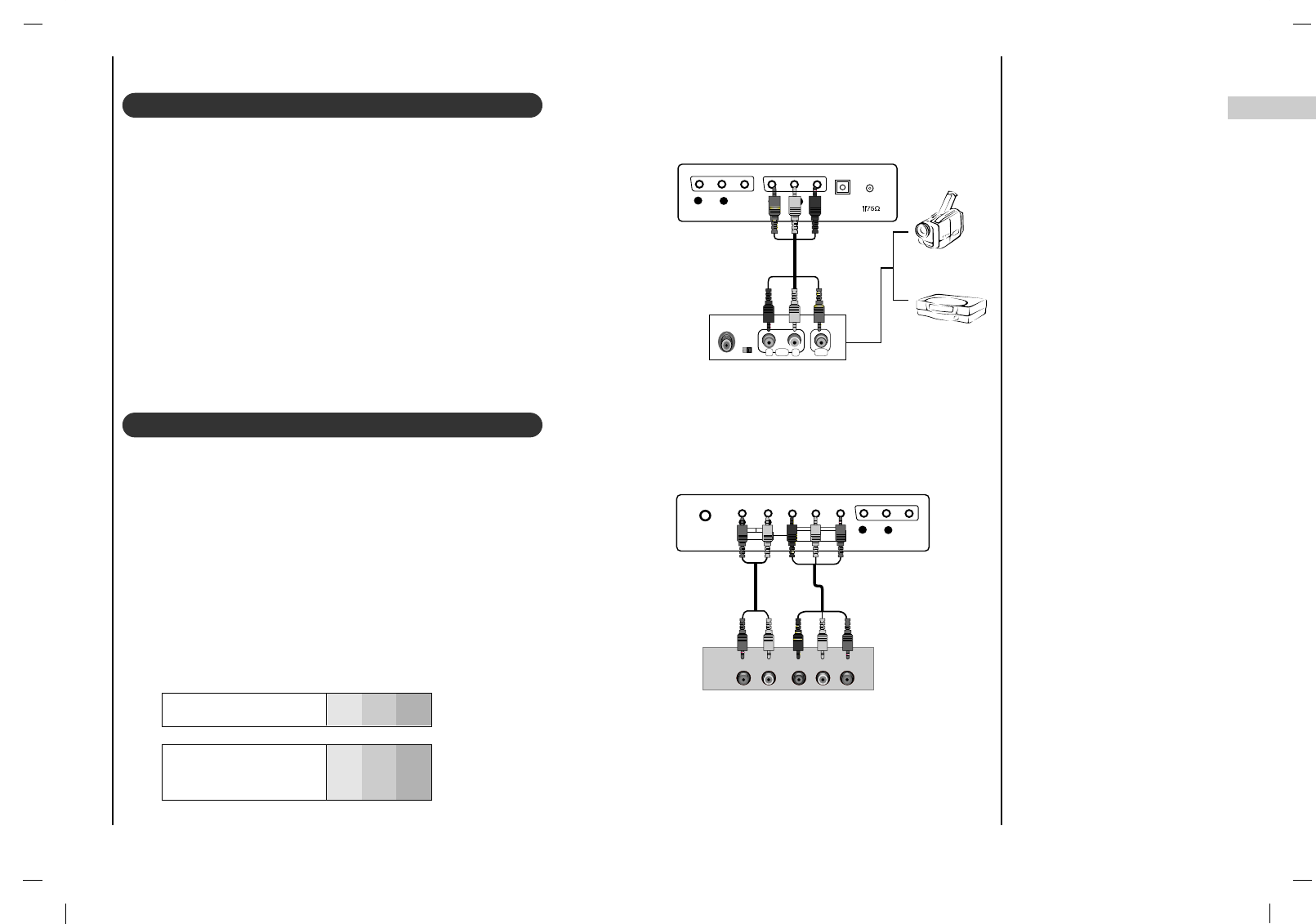

External A/V Source Setup
Connections
Connect the audio/video output jacks on the external A/V equipment to
the corresponding input jacks on the TV. When connecting the TV to
external A/V equipment, match the jack colors (Video = yellow, Audio
Left = white, and Audio Right = red).
Viewing Setup
1. Turn on the external A/V equipment.
2. Use the INPUT SELECT button on the remote control to select AV1
or AV2.
3. Operate the corresponding external equipment. Refer to external
equipment operating guide.
DVD Setup
Connections
Connect the DVD video outputs to the COMPONENT (Y, PB, PR)
jacks and connect the DVD audio outputs to the AUDIO jacks.
Viewing Setup
1. Turn on the DVD player, insert a DVD.
2. Use the INPUT SELECT button on the remote control to select
COMPONENT.
3. Refer to the DVD player's manual for operating instructions.
Camcorder
Video Game set
External Equipment
Component ports
of the TV
Y PB
PR
Video output ports
of DVD player
Y
Y
Y
Y
Pb
B-Y
Cb
PB
Pr
R-Y
Cr
PR
• Component Input ports
To get better picture quality, connect a DVD player to
the component input ports as shown below.
DVD
AUDIO INPUT
AUDIO INPUTAUDIO INPUT
AUDIOAUDIO
R L
COMPONENT COMPONENT INPUT INPUT
(480i/480p/720p/1080i)(480i/480p/720p/1080i)
Y P b P r
AV1
VIDEO
AUDIOAUDIO
L
R
AUDIO Y PB PR(L)
(R)
