Installation and Assembly Instructions

Showpiece™ Stand Manual Page 5 of 8 Ver 0109 www.itsgames.com
© 2009 Incredible Technologies All rights reserved
Step 1:
Attach Base Beams to Showpiece Cabinet

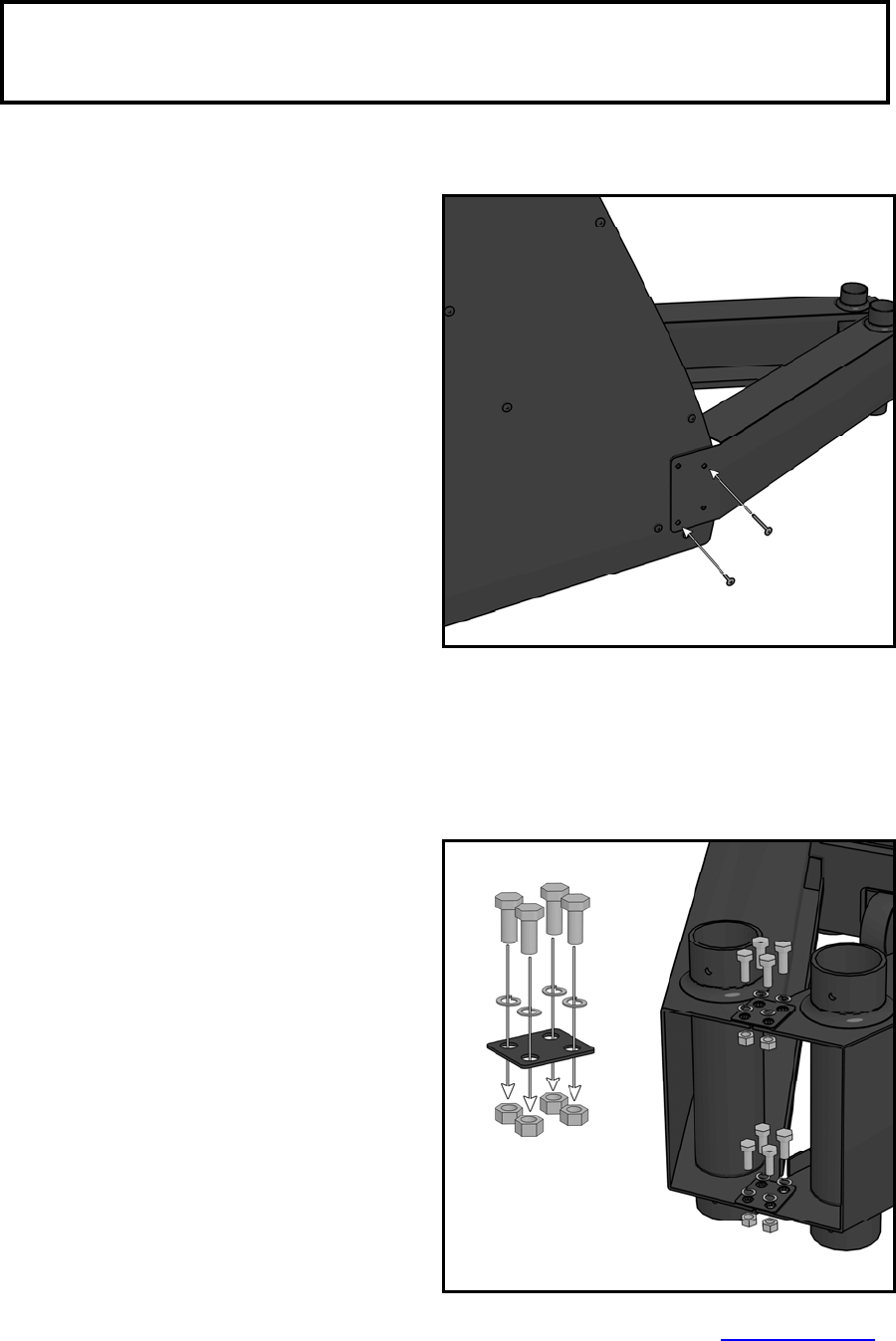

The Stand is affixed to the lower back section of the Showpiece Cabinet. Install one
Base Beam on one side first, and then move to the other side.
Locate the two bolts at the base of the
side the cabinet. Use a 4mm Hex Key to
remove the two bolts.
Note: If your Showpiece Cabinet has
additional bolts in this area, remove them
and the nuts on the other side through the
rear access panel.
Align one of the Base Beams with the bolt
holes. You may need to prop up the
other end of the bracket to keep the
bracket level during installation.
In the upper hole, use the ¼-20 x 50mm
Screw that was originally removed from
the hole. For the lower hole, use the ¼-
20 x 30mm screw provided with this kit.
Tighten both screws with a 4mm Hex Wrench. Be sure the screws are tightened
securely, but do not over tighten.
Attach the second Base Beam to the other side of the cabinet in the same manner.
Remove the two lower screws, align the bracket with the bolt holes, and securely replace
the appropriate screws.
Install the two rectangular Connector
Plates to the top and bottom end surfaces
of both brackets using 4 5/16-18 x ½"
Screws, 4 Lock Washers and 4 Hex Nuts.
When installed properly, the brackets
should be level with the ground, and flush
against the backside of the cabinet to
form a triangle.
