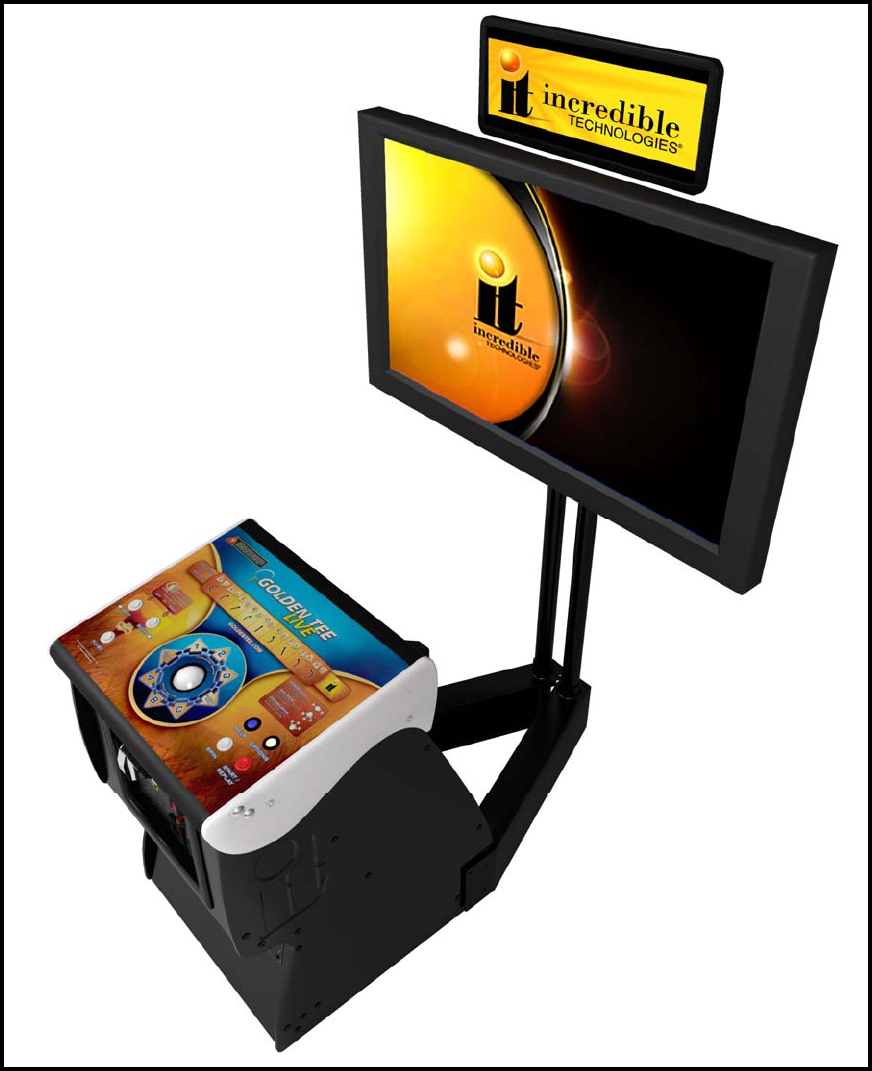

Showpiece Cabinet Integrated Stand For 32" - 52" LCD HDTV Installation and Assembly Instructions © 2009 Incredible Technologies Inc.
Showpiece Cabinet Integrated Stand for 32" - 52" LCD HDTV WARNINGS • Read the entire manual before starting installation and assembly. If you have any questions please call IT Tech Support at 847-870-7027 x121. • Installation should only be attempted by someone with good mechanical aptitude and understands these instructions completely. • A qualified assistant is recommended to safely lift and position equipment.
Parts Lists Stand Components 2 Base Beams SM 304-400 2 Vertical Brackets SM 304-406 2 Vertical Poles SM304-403 2 Base Connector Plate SM304-407 Horizontal Monitor Plate SM304-405 Assembly Hardware 12 - 5/16"-18 x 1/2 hex head screws 92865A578 4 - 1/4-28 x 1/2 hex head screws 92865A002 Showpiece™ Stand Manual 12 - 5/16 split lock washers 90126A030 2 - 8-32 x 1¼" hex head screws 90272A201 8 - 5/16-18 nuts 95462A030 2 - Stafast mounting bolts BB142030UHD Page 3 of 8 Ver 0109 www.itsgames.
Screen Mounting Hardware 8 M4 fender flat washers 91100A130 8 M6 flat washers 91455A120 8 M8 flat washers 91455A130 4 M4 split lock washers 91202A226 4 M6 split lock washers 91202A234 4 M8 split lock washers 91202A238 4 M4 x 16 Phillips Screws 92005A226 4 M6 x 10 Phillips Screws 92005A420 4 M6 x 12 Phillips Screws 92005A422 4 M6 x 16 Phillips Screws 92005A426 4 M6 x 20 Phillips Screws 92005A428 4 M8 x 16 Phillips Screws 92005A526 4 M8 x 25 Phillips Screws 92005A530 Required Tools • • • Philli
Step 1: Attach Base Beams to Showpiece Cabinet The Stand is affixed to the lower back section of the Showpiece Cabinet. Install one Base Beam on one side first, and then move to the other side. Locate the two bolts at the base of the side the cabinet. Use a 4mm Hex Key to remove the two bolts. Note: If your Showpiece Cabinet has additional bolts in this area, remove them and the nuts on the other side through the rear access panel. Align one of the Base Beams with the bolt holes.
Step 2: Attach the Monitor Plate to Mounting Poles Lay the two Vertical Poles on a clean flat surface, about 4 ¼" apart. Place the Horizontal Monitor Plate on top of the poles. The flat surface on the plate should be flush with the poles. The small tabs on the ends of the plate should face up. Align the 4 holes on the plate with the top 4 threaded holes on the poles. Secure the plate to the poles using the supplied 5/16-18 x ½" Hex Screws and lock washers, using a ½" hex driver.
Step 4: Attach Vertical & Marquee Brackets to HDTV Carefully place your HDTV screen face down on a flat, smooth, and clean surface. A soft cloth or sheet is recommended to prevent scratching the screen. The Vertical Brackets have been designed to work with most hole patterns found on HDTVs. If the holes on your HDTV do not line up with the vertical brackets, do not use this stand. Place the Vertical Brackets on the back of the HDTV and align to the proper mounting holes.
Step 5: Mount HDTV to Monitor Plate Use an assistant to carefully lift the HDTV and position it in front of the Monitor Bracket. Hook the two Vertical Brackets onto the top bar of the Horizontal Monitor Plate, then slowly swing the screen down and into place against the lower bar of the plate. Use a flat screwdriver or ¼" hex driver to lock the screen into place by inserting two 8-32 x 1¼" screws onto the bottom of the Vertical Bracket, and tighten firmly against the Monitor Plate.
