Railway Computers
V2400 Series Expansion Modules
Introduction
Expansion peripheral modules (EPM) for the V2400 series
› PCI slots for interface expansion
› EPM-3032: 2 isolated RS-232/422/485 ports with DB9 connectors
› EPM-3112: 2 isolated CAN ports with DB9 connectors
› EPM-3338: GPS, Cellular, 802.11a/b/g/n WLAN
› EPM-3438: 8+8 DI/DO with 3 KV digital isolation protection, 2 KHz
counter
› EPM-3552: VGA or DVI-I display module
› EPM-DK01: mini PCI and mini PCIe expansion modules
› EPM-DK02: 2 mini PCIe slots
› EPM-DK03: GPS receiver, 2 mini PCIe slots
Moxa’s V2400 series expansion modules, which come with serial
ports, CAN ports, wireless and GPS cards, digital input/output channel
cards, mini PCI and PCIe modules, a 2-slot mini-PCIe module, and
VGA or DVI-I display connectors, can be used with Moxa’s V2422 and
V2426 embedded computers, and give end-users the best flexibility for
setting up and expanding a variety of industrial applications.

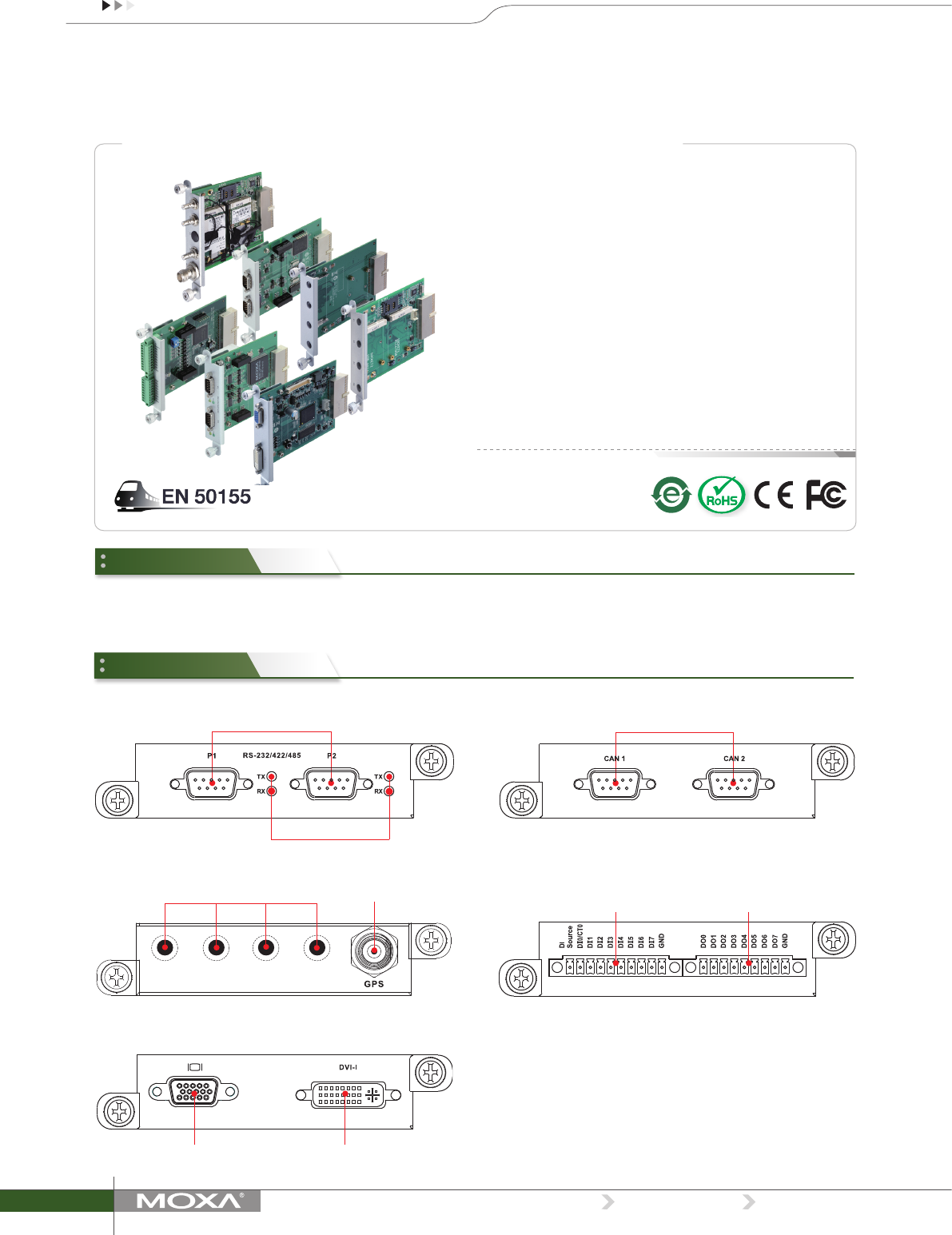

Appearance
EPM-3032
EPM-3338 EPM-3438
EPM-3552
EPM-3112
Serial Ports x 2
(RS-232/422/485, DB9)
Serial Port LED Indicators
(TX x 2, RX x 2)
CAN Ports x 2 (DB9)
Antenna Connectors x 4
GPS connector
X1 X2 X3 X4
DO Channels x 8DI Channels x 8
VGA Port x 1
DVI-I Port x 1
