Isolated Digital I/O Products
SCMD
For information call 800-444-7644
122
SCMD-MORO/MORC
Miniature Digital Relay Output Modules
Description
The SCMD digital relay output modules are used for switching AC and DC loads
such as relays, solenoids, motor starters, or indicator lamps. All models provide
up to 1000Vrms of optical isolation between the field device and the control logic.
Functionality is denoted by case colorrelay modules are brown.
Six backpanels are available for mounting SCMD-M relay output modules. See
Accessories section.
▲
Features
 UL Listed, CSA Certified, CE Compliant
 Resistive Load Only
 Max On-state Current 1A, 30WDC, 62.5VA
 Max Turn-on Time 2ms
 Max Turn-off Time 1ms
 1000Vrms Isolation
 Plug into Backpanels for Miniature or
Full-Sized Modules
 Industry Standard Pinout and Footprint
 Operating Temperature -30
°C to +80°C

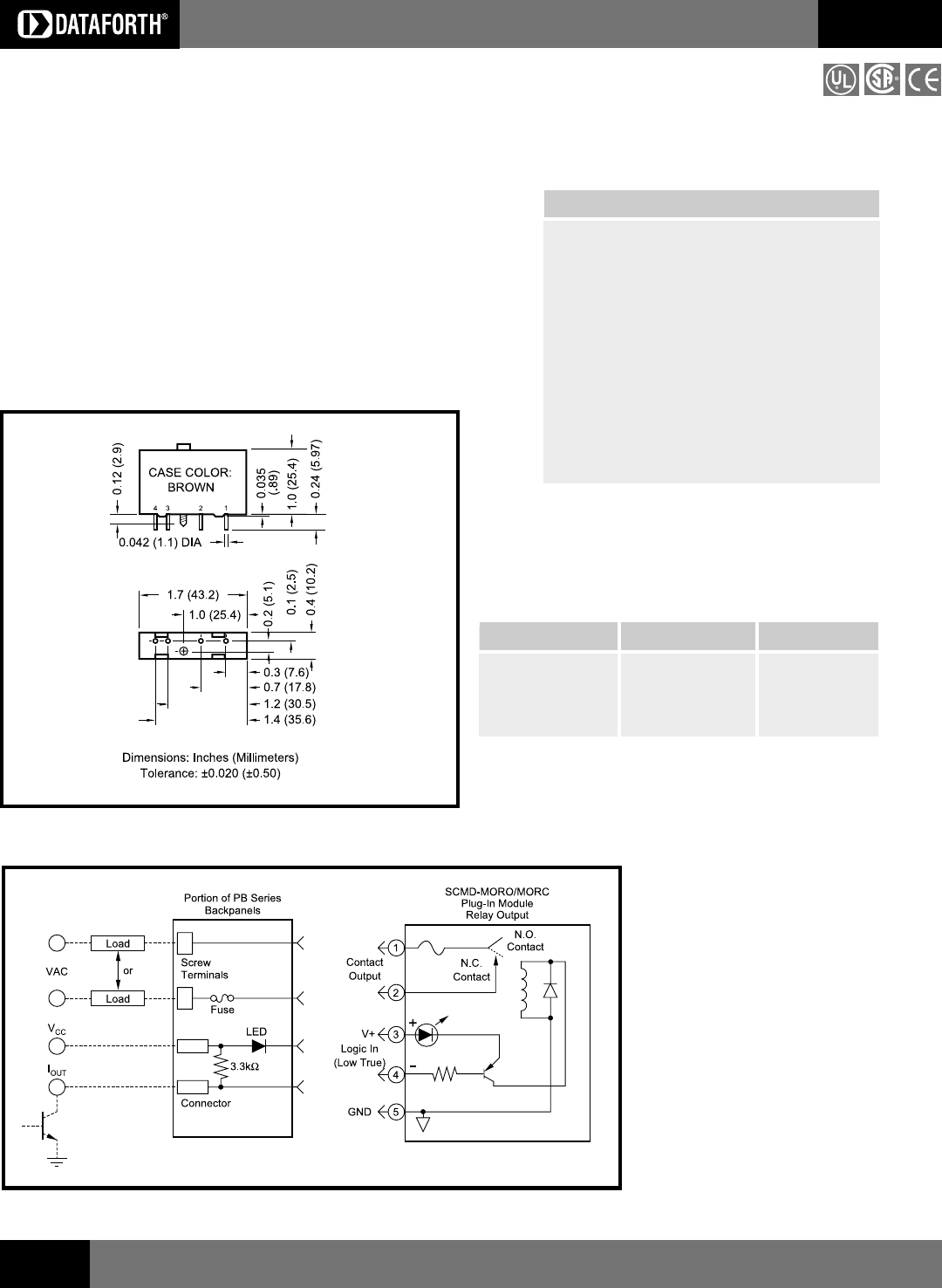

Figure 2: SCMD-MORO/MORC Circuit Diagrams
Figure 1: SCMD-MORO/MORC Physical Dimensions
Ordering Information
Model Output Range Supply Voltage
SCMD-MORO5 100/125 VDC/Vrms 5V
SCMD-MORC5 100/125 VDC/Vrms 5V
SCMD-MORO24 100/125 VDC/Vrms 24V
SCMD-MORC24 100/125 VDC/Vrms 24V
