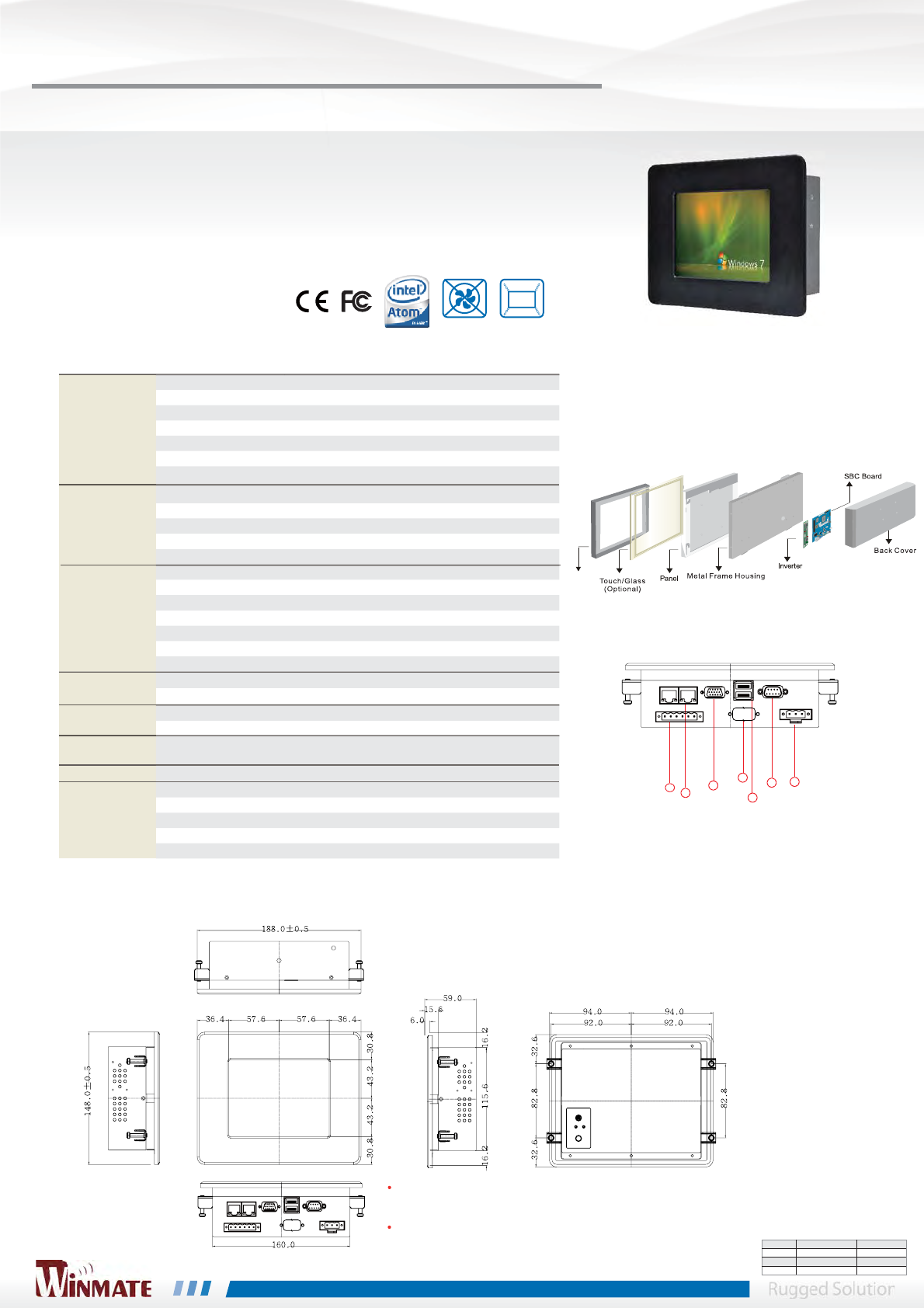

Rugged Solution

www.winmate.com.tw

Model:R05I93S-IPD1HM

Display

Model Name R05I93S-IPD1HM

Size/Type 5.7'' TFT

Resolution (pixels) 640x 480

Number of Colors 262 K

Brightness (cd/m2) 220

Contrast Ratio 300:1

Viewing Angle -70~70 (H) ; -40~60 (V)

Product Features:

Product Specifications:

Fanless

IP65

HMI Panel PC

System

Processor Intel

Atom Z510P 1.1GHz

Chipset Intel

US15W XL

Memory 1 x SO-DIMM DDR2 400/533 ( max 1GB )

IDE/SATA 1 x 44pin IDE ( UDMA33/66/100 )

Storage 1 x Mini PCI-E SSD

Environment

Driver OS Support

Operating Temperature -10°C to 60°C

Humidity 30% to 90% ( non condensing )

Windows XP embedded / Windows 7 / Win CE

/ Linux

Input / Output

USB Port 2 x USB 2.0

Etherner 2 x RJ45-10/100/1000

VGA 1 x VGA ( female )

RS-232 1 x RS-232 COM Port

RS-422/485 1 x RS-232/422 / 485 COM Port ( Default RS-485 )

CAN BUS 1 x CAN BUS ( optional )

DC-IN 1 x Terminal Block ( Phoenix type )

I / O View:

Panel Mount

6mm IP65 Front bezel

1. CAN BUS ( optional )

2. 2 x RJ-45

3. VGA

4. RS-485 ( default )

Rev. Reasons Revised Date

1.3 Spec change Jun .30.11

1.4 Spec change Jul .01.11

1.5 Spec change Jul .04.11

Dimensions:

Front View

Side View Back View

Power

Power Input 12V DC-IN

Power consumption 18W (typ.) ( Max.backlight & high CPU load )

Default

Mechanical IP65 Panel Mount ( 6mm bezel )

Touch 4 Wires Resistive

CPU Z510P 1.1GHz ( Z530P by request )

Storage 1 x Mini PCI-E SSD 8GB

RAM 1 x SO-DIMM DDR2 400/533 512MB

Accesories External Adapter 110~230V AC-IN Power Adapter

•

5.7'' TFT LCD with Resistive Touchscreen

•

Embedded Intel

Atom Z510P 1.1GHz Processor

•

NEMA4/IP65 compliant front panel

•

Support Dual Gigabit Ethernet

•

Optional Controller Area Network (Suppor t CAN 2.0B)

•

Fanless and Ultra-low power consumption

•

Aluminium Front Bezel

Mechanical Design:

Bottom View

Front Bezel

5. 2 x USB

6. RS-232

7. 12V DC-IN Terminal Block

( Phoenix Type )

Total dimension: L x H x D= 188 x 148 x 59mm

Cutout dimension: 162 x 125mm

Note: this is a simplified drawing and some components are not marked in detail.

Please contact our sales representative if you need further product information
