Features
SubCompact Boards
Specifications
Packing List
1709100208•
USB Cable, Length 20cm
1701090150•
COM Port Cable, Length 15cm
1709100254•
Audio Cable, Length 25cm
1702150155•
Power Cable for 2.5” SATA Hard Disk, Length 15cm
1709070500•
SATA Cable, Length 50cm
1702002010•
Big Single Row 4-pin Power Input Cable for +12V Input, Length 10cm
Optional Accessories
Product DVD •
GENE-QM87 with Active Cooler •
TBD•

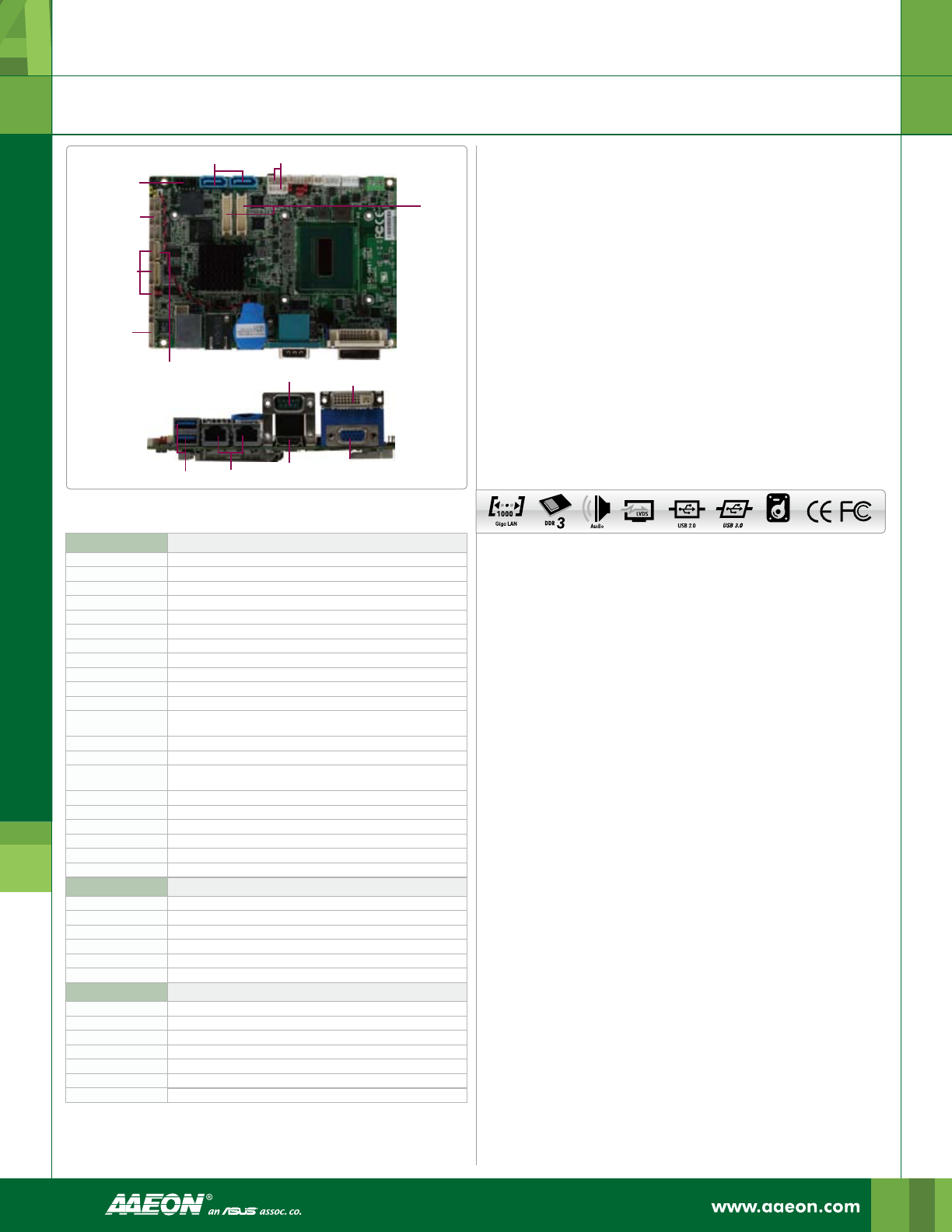

GENE-QM87
3.5” SubCompact Board with Intel® 4th Generation Core™ i7/i5/i3 Mobile Processor
Ordering Information
USB3.0
LAN
DVI
CRT
COM
LVDS x 2
Backlight x 2SATA x 2
DIO
USB x 6
COM x 3
Audio
Touch Screen Control
HDMI
SATA 3
System
Form Factor 3.5"
Processor Onboard Intel® 4th Generation Core™ i Processor
System Memory 204-pin SODIMM DDR3L, Max. 8 GB x 1
Chipset Intel® QM87
I/O Chipset Fintek F81866D
Ethernet Intel® I210AT & I218LM, 10/100/1000Base-TX, RJ-45 x 2
BIOS AMI BIOS - 16MB SPI Flash
Wake on LAN Yes
Watchdog Timer Generates a time-out system reset
H/W Status Monitoring Supports power supply voltages and temperature monitoring
Expansion Interface Mini Card x 1, LPC
Trusted Platform Module
(TPM)
Infineon SLB 9635TT 1.2
Battery Lithium battery
Power Requirement +12V, AT/ATX
Power Consumption
(Typical)
—
Board Size 5.75" x 4" (146mm x 101.6mm)
Gross Weight 0.88 lb (0.4 kg)
Operating Temperature 32°F ~ 140°F (0°C ~ 60°C)
Storage Temperature -40°F ~ 176°F (-40°C ~ 80°C)
Operating Humidity 0% ~ 90% R/H, non-condensing
MTBF (Hours) —
Display
Supports CRT/LCD, HDMI/LCD simultaneous/ dual view displays
Chipset Intel® CPU integrated
Memory Shared system memory up to 512MB
Resolutions Up to 2048 x 1536 for CRT, up to 1920 x 1200 for LCD, HDMI, DVI
LCD Interface Up to 24-bit dual-channel LVDS x 2
HDMI HDMI x 1
DVI DVI x 1
I/O
Storage SATA 6.0Gb/s x 2, CFast™ x 1
Serial Port RS-232 x 3, RS-232/422/485 (auto flow) x 1
USB USB3.0 x 2, USB2.0 x 6
PS/2 Port Keyboard x 1, Mouse x 1
Digital I/O Supports 8-bit (Programmable)
Audio Line-in, Line-out, Mic-in
Touch Screen Support 4/5/8-wire resistive touch screen
Onboard Intel® 4th Generation Core™ i Processor
■■
Intel® QM87
■■
SODIMM DDR3L 1333/1600, Max. 8 GB
■■
Gigabit Ethernet x 2, RJ-45 x 2
■■
CRT, DVI, 18/24-bit Dual-Channel LVDS LCD x 2, HDMI
■■
2CH HD Audio
■■
SATA 6.0Gb/s x 2 (Optional RAID), CFast™ x 1
■■
USB3.0 x 2, USB2.0 x 6, COM x 4, 8-bit Digital I/O
■■
Mini Card x 1
■■
+12V Only Operation
■■
Supports iAMT with Intel® QM87
■■
Onboard 4/5/8-wire Resistive Touch Screen Controller
■■
AAEON Hi-Safe/Hi-Manager SDK/Utility Supported
■■
mSATA x 1 (Optional, Would Replace Mini Card Interface)
■■
Note: All specifications are subject to change without notice.•
