B-TECH AUDIO VIDEO MOUNTS

www.btechavmounts.com

CONTENTS

INSTALLATION TOOLS REQUIRED

FEATURES

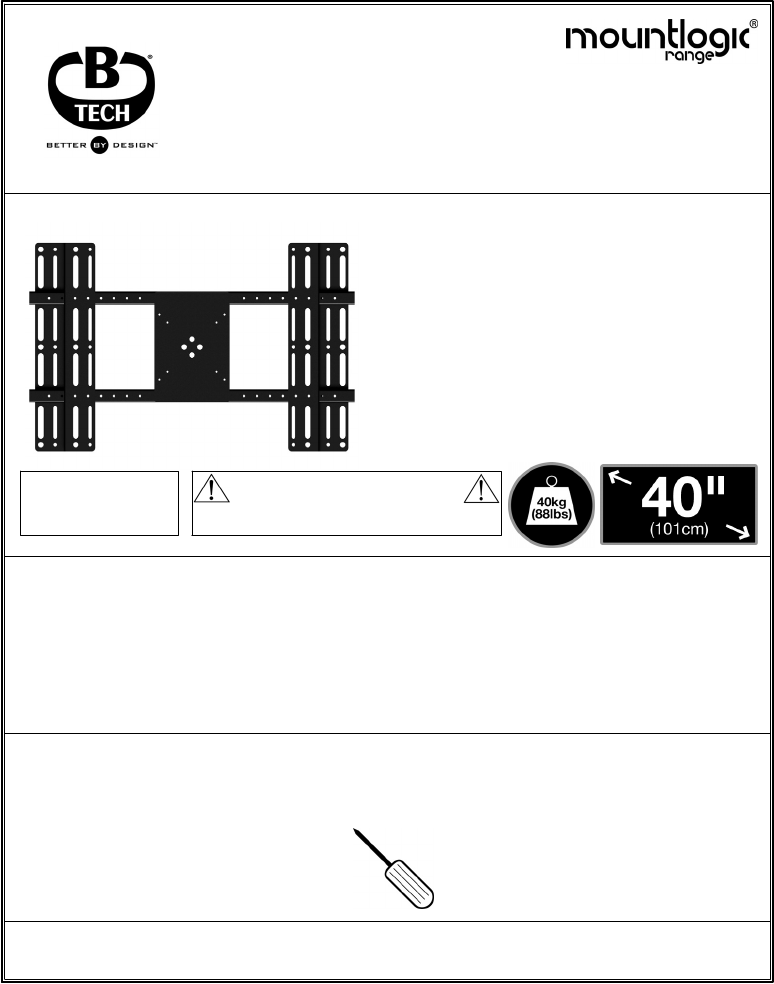

BT7505

UNIVERSAL FLAT SCREEN ADAPTOR PLATE

INSTALLATION GUIDE & PARTS LIST

This Pack Contains 1 Adaptor Pate

Crosshead

screwdriver

Installation Safety Notes.....................................................................................................................2

Parts List.............................................................................................................................................4

Installation Instructions.......................................................................................................................6

Sample Installations...............................................................................................................................10

Product Dimensions..........................................................................................................................11

B-Tech Contact Details.....................................................................................................................12

PLEASE KEEP THIS FOR FUTURE REFERENCE

● Designed for flat screens up to 40” (101cm) / 40kg (88lbs)

● Universal adaptor kit to allow fitting of Non-VESA screens to

75 x 75mm and 100 x 100mm VESA mounts

● Simple installation with all mounting hardware included

● Must be used with a 75 x 75mm or 100 x 100mm

VESA flat screen mount (BT7510 / BT7511 / BT7512 / BT7513

/ BT7514 / BT7515 / BT7518 / BT7519 / BT7521 / BT7522)

Wall / ceiling / stand /

bracket sold

separately

Actual screen size & weight limit

dependant on mount to which

BT7505 is attached

Summary of content (12 pages)

PAGE 1
BT7505 UNIVERSAL FLAT SCREEN ADAPTOR PLATE INSTALLATION GUIDE & PARTS LIST This Pack Contains 1 Adaptor Pate PLEASE KEEP THIS FOR FUTURE REFERENCE FEATURES ● ● Designed for flat screens up to 40” (101cm) / 40kg (88lbs) Universal adaptor kit to allow fitting of Non-VESA screens to 75 x 75mm and 100 x 100mm VESA mounts ● ● Simple installation with all mounting hardware included Must be used with a 75 x 75mm or 100 x 100mm VESA flat screen mount (BT7510 / BT7511 / BT7512 / BT7513 / BT7514 / BT7515 / BT75
PAGE 2
INSTALLATION SAFETY INSTRUCTIONS CAUTION: This interface kit is intended for use only with the maximum weights indicated. Use with flat screens heavier than the maximum indicated may result in instability causing possible injury. Do not attempt to install this product until all instructions and warnings have been read and properly understood. Please keep these instructions for future reference.
PAGE 3
CS Společnost B-Tech International Ltd. doporučuje provést instalaci tohoto produktu prostřednictvím odborného instalátora AV či jinak způsobilé osoby. Společnost B-Tech International Ltd, její distributoři a prodejci nenesou odpovědnost za škody nebo zranění způsobená nevhodnou instalací. Tento výrobek je nutno umístit do vhodné konstrukce a používat jen po uvedenou maximální výšku. DE B-Tech International Ltd.
PAGE 4
BT7505 PARTS LIST 2 1 2 3 4 Suitable for loads up to 40kg (88lbs) 4
PAGE 5
REF PART NAME QTY 1 ADAPTOR PLATE 1 2 INTERFACE ARM 2 3 M5 METAL WASHER 12 4 M5 x 12mm SCREW 12 INTERFACE KIT A B A M4 x 12mm SCREW 8 B M4 x 16mm SCREW 8 C M4 x 25mm SCREW 4 D M4 x 40mm SCREW 8 E M5 x 25mm SCREW 6 F M5 x 50mm SCREW 4 G M6 x 12mm SCREW 4 H M6 x 25mm SCREW 4 I M5 METAL WASHER 8 J M5 x 12mm SPACER 8 K M5 x 30mm SPACER 4 C D E F G G I PLEASE KEEP THIS FOR FUTURE REFERENCE J K 5
PAGE 6
INSTALLATION INSTRUCTIONS 1 Attach adaptor plate to a 75 x 75mm or 100 x 100mm interface plate.
PAGE 7
2 Slide the interface arms onto the adaptor plate.
PAGE 8
3 Fix the interface arms to the flat screen.
PAGE 9
4 Fix the interface arms to the adaptor plate.
PAGE 10
SAMPLE INSTALLATIONS The BT7505 must be used with a 75 x 75mm or 100 x 100mm mount (BT7510 / BT7511 / BT7512 / BT7513 / BT7514 / BT7515 / BT7518 / BT7519 / BT7521 / BT7522) BT7505 BT7505 BT7521 BT7511 BT7505 BT7514 10
PAGE 11
BT7505 PRODUCT DIMENSIONS MIN 570mm 22.4" 123mm 4.8" MAX 588mm 23.1" 20mm 0.8" MAX 320mm 12.6" 300mm 11.8" MAX ADAPTOR PLATE 170mm 6.7" 75mm 3" 100mm 3.9" 100mm 3.9" 75mm 3" 500mm 19.7" THESE INSTRUCTIONS ARE INTENDED AS A GUIDE ONLY AND B-TECH ACCEPTS NO LIABILITY FOR THE ACCURACY OF THE INFORMATION CONTAINED IN THIS DOCUMENT.
