Optional Peripherals
Model Name AUPS-A10 AUPS-A20 AUPS-B10 AUPS-B20 AUPS-C20
VESA Type VESA 75 VESA 75 VESA 75 and 100 VESA 75 and 100
VESA 75 and 100
Input Data
Input voltage Uinated/range DC +12V DC +9V~+36V DC +12V DC +9V~+36V
DC +9V ~ +36V
Input current rated
1. Adapter is 12V-6A (Load is 60W)
2. Battery is 6V-12A (Load is 60W)
1. Adapter is 12V-9A (Load is 100W)
2. Battery is 12V-9A (Load is 100W)
Standby power consumption 0.3A (0.2A if Network Management disabled)
Operation with charging current 500mA
Operation with charging power consumption 6W 10W
Charging time with system ON/OFF 8hrs / 2hrs (Battery empty)
Output Data
Output voltage for normal operation DC +12V +/-5%
Output voltage for battery operation(approx). 6~8.4V DC6 V (exhaustive discharge protection) 12~16.8V DC12 V (exhaustive discharge protection)
Output current 0A~5A 0A~8.3A
0A~7.6A
Efficiency (nominal operation) / power loss
at Vin=12V, Iout=80% of full loading
89% 93% 95% 94%
90%
Protection
Short-circuit protection Yes
Exhaustive discharge protection
1. Battery low is 10% of battery capacity
2. Shuntdown 5% of battery capacity (Default)
3. The end of battery discharge voltage is 6V
EMC / Safety certification CE, FCC
Monitoring
Ethernet interface Web-based, specification 10/100Mbps with RJ-45 connection, Cat. 5 cable
USB interface
PC-capable, specification 2.0 with full speed, i.e. 2 Mbit/s. Standard 4-core shielded cable, USB Series "mini B" connector to DC-
UPS
Physical
Dimensions (LxWxH) 152mm x 96mm x 28mm 174mm x 147mm x 35mm
233mm x 197mm x 59mm
Weight 1.2 kg 1.8 kg
3.8 kg
LED Indicator
Green DC power input
Yellow Battery charging
Orange Bettery discharging
Environment
Operating Tem. 0°C~40°C
Storage Tem. -20°C~50°C
Note1: Connecting DC input constantly is recommended. Battery will be drained after 14 hours.
Note2: System power consumption + AUPS charging power consumption = Total watts of power source
Model Name AUPS-A10 AUPS-A20 AUPS-B10 AUPS-B20 AUPS-C20
Battery Model Name BAT-LI-2S2P3800 BAT-LI-4S2P3800 BAT-LI-4S2P3800(x4)
Battery
Battery type Li-Ion 2S2P 7.4V Li-Ion 4S2P 14.8V Li-Ion 4S2P 14.8V
Battery capacity 7.4V 3800 mAH 14.8V, 3800 mAH 14.8V, 3800 mAH(x4)
Maximum charge voltage 8.4V 16.8V 16.8V
The end of discharging voltage 5.6V 11.2V 11.2V
Recommended charging current (max.) 2A 2A 2A
System continuous discharging current (max.) 7.6A 7.6A 7.6A
The end of charge condition 250mA / 1Min 200mA / 1Min 200mA / 1Min
Discharge protection Under voltage protection / Over current protection
Charge protection Over voltage protection / Over current protection
Ambient temperature 0°C~40°C
Storage temperature -20°C~60°C
Self-discharge rate 340uA~440uA
Dimensions (LxWxH) 139mm x 47mm x 26mm 165mm x 76mm x 26mm 165mm x 76mm x 26mm
Weight 236g 450g 450g
Cycle life 300 charge / discharge cycles
Backup 60W / 10Min 100W / 10Min 100W / 10Min
Safety class CE, FCC CE, FCC
AFOLUX PPC AUPS-A10 AUPS-A20 AUPS-B10 AUPS-B20
Under 50W solution
AFL-057-LX (15W~20W) 145min 145min 290min 290min
AFL-07A-N270 (20W~25W) 100min 100min 200min 200min
AFL-08AH-N270 (25W~30W) 70min 70min 140min 140min
AFL-10A-N270 (25~30W) 70min 70min 140min 140min
AFL-10A-9103 (40W~45W) 50min 50min 100min 100min
AFL-10A-LX (25W~30W) 70min 70min 140min 140min
AFL-12A-LX (25W~30W) 70min 70min 140min 140min
AFL-12B-CX2 (38W~42W) 50min 50min 100min 100min
AFL-12A-N270 (25W~30W) 70min 70min 140min 140min
AFL-12B-9103 (45W~48W) 45min 45min 90min 90min
50W ~ 100W solution
AFL-15B-915-CM370 (58W~63W) - - 35min 35min
AFL-15C-9652-T7500 (65W~70W) - - 30min 30min
AFL-17B-915-CM370 (75W~80W) - - 25min 25min
AFL-17C-9652-T7500 (85W~90W) - - 20min 20min
AFL-19B-915-CM370 (75W~80W) - - 25min 25min
AFL-19C-9652-T7500 (85W~90W) - - 20min 20min
Selection Table for UPS Modules and Main Buffering Time
BAT-LI-4S2P3800BAT-LI-2S2P3800
Note: Replacing battery module every 2 years is recommended.
Note: The backup time could be varied on different models or operating temperature.

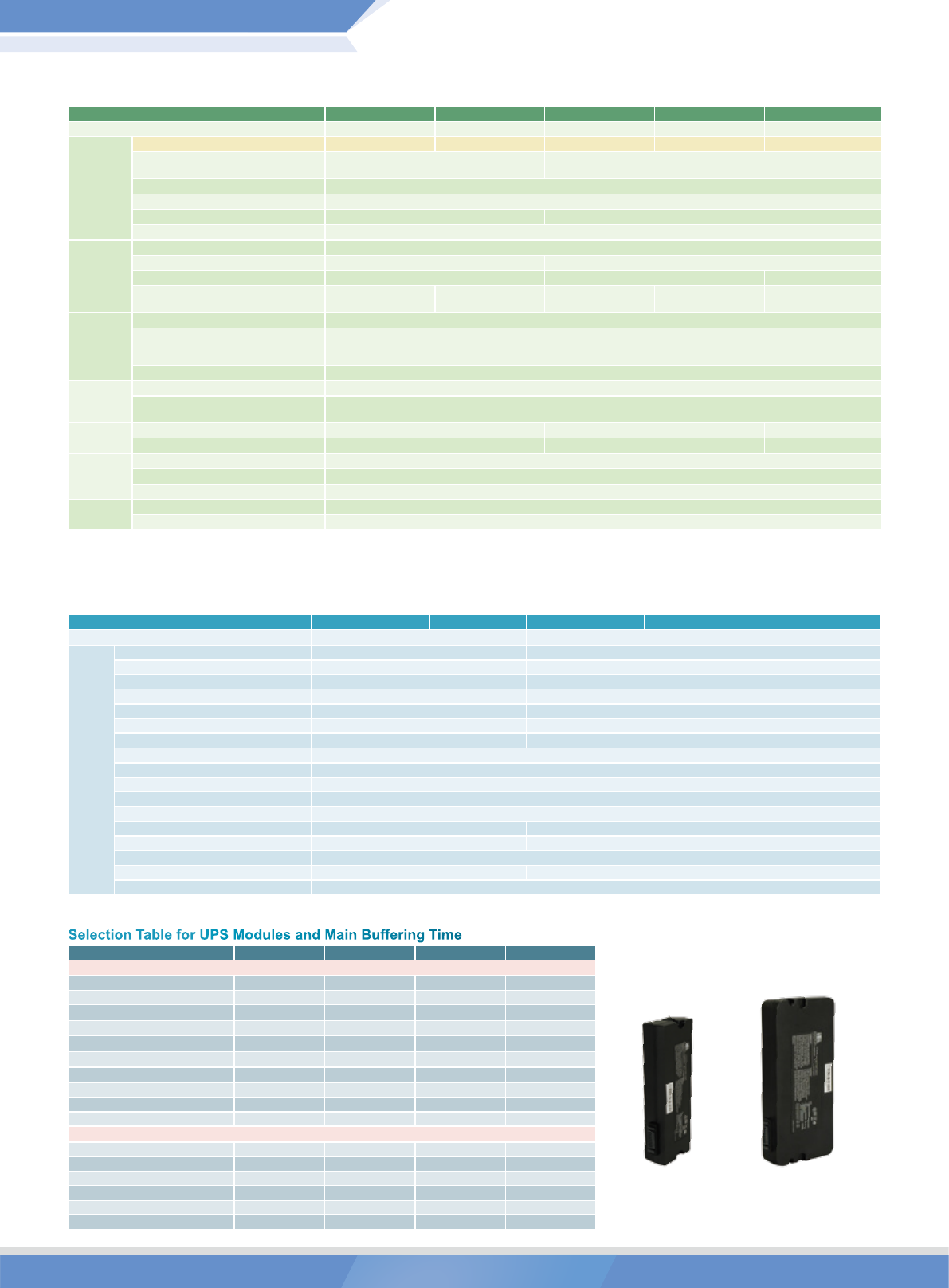

AUPS Module Specifications
Battery Module Specifications
