Dimensions Unit: mm (inch)
ARK-3440 A2
Packing List
Part Number Description
- 1 x ARK-3440 Unit
- 1 x Driver/Utility CD/Manual
1960014487T00C 2 x desk/wall mount plate
1652003234 1 x 4-pin Phoenix DC power connector
1654009744 1 x DVI-I to CRT connector
1990020592N001 1x HDD thermal pad
1990020828N001 1 x CPU thermal grease pad
Embedded OS
Part Number Description
2070009811 WES2009 ARK-3440 ENG_FRE_GER_ITA_SPA
2070009812 WES2009 ARK-3440 ENG_CHT_CHS_JPN
2070011270 WES7E ARK-3440 ENG 32 bit
Optional Items
Part Number Description
1757002161
AC-to-DC adapter, DC19 V/7.89A 150 W, with phoenix power plug,
0 ~ 40° C for home and office Use
1757004529-01 AC-to-DC Adapter, DC 19V/6.84A 130W, -20 ~ +70° C
1702002600
Power cable 3-pin 180cm, USA type, for 1757002161 and
1757004529-01
1700004713 CABLE DVI-I to DVI-D and CRT
1702002605
Power cable 3-pin 180cm, EU type, for for 1757002161 and
1757004529-01
1702031801
Power cable 3-pin 180cm, UK type, for for 1757002161 and
1757004529-01
1700018187 LPT cable 2 x 130-2.0/D-SUB 25P(F) 20 cm for ARK-3440
1700008871 COM Cable D-SUB 9P(M)/IDE#2 10P-2.0 20 cm
AMO-R010E 2 slot riser card, 1 x PCIe x1 + 1 x PCI
AMO-R009E 2 slot riser card, 2 x PCIe x1
AMO-R013E 2 slot riser card, 2 x PCI
AMO-R014E
2 slot riser card, 1 x PCI + 1 x PCIe x4
with BIOS V2.01 (P/N: 1420032188)

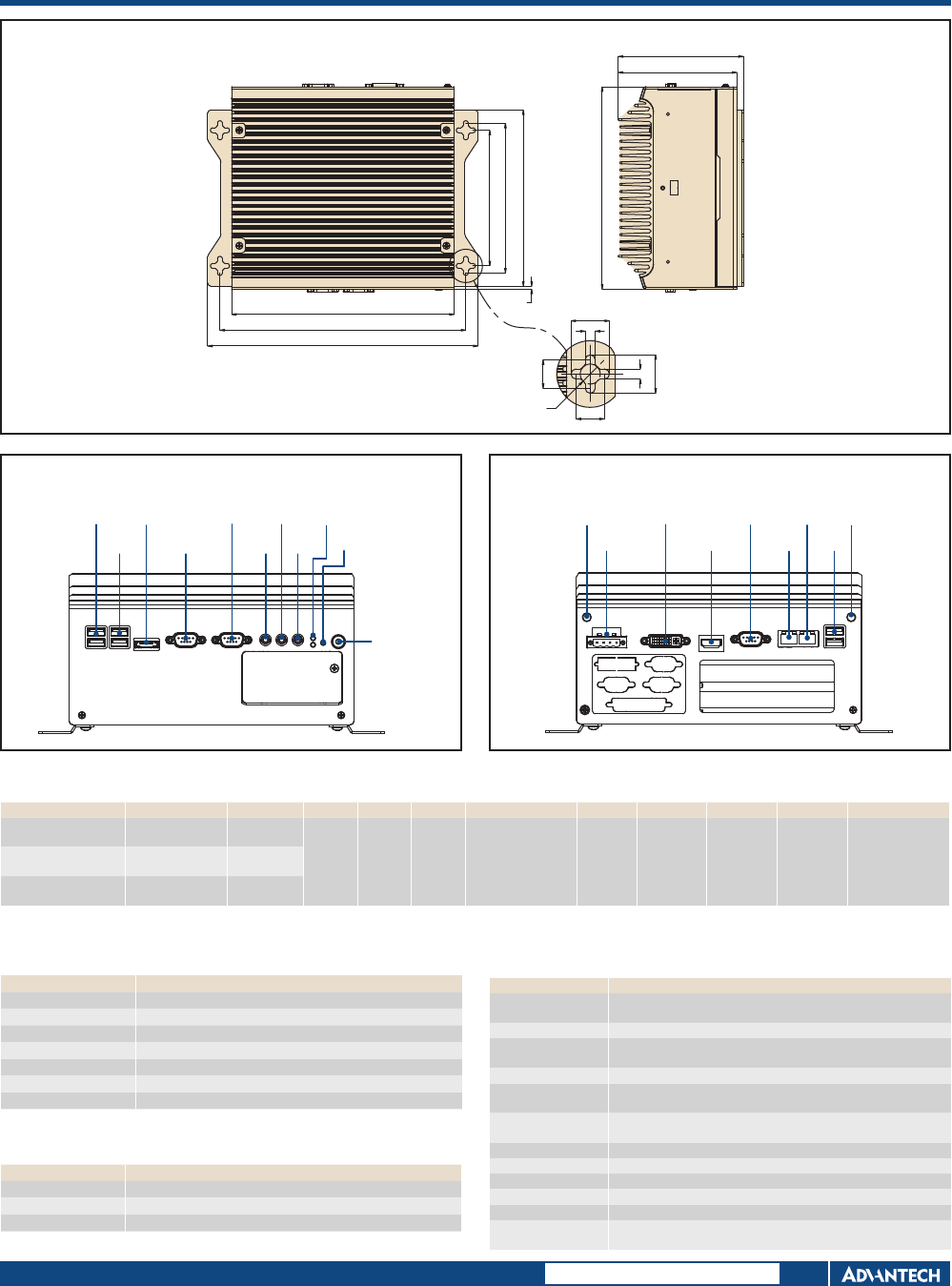

Front Panel External I/O Mechanical Layout/Drawing Rear Panel External I/O Mechanical Layout/Drawing
174
134
3
267.18
243
220
148
200
123.50
117
19
19
Ø10
5
5
14
14
ANTENNAANTENNA
DC IN
DVI-I
HDMI
COM1
LAN1
LAN2
USB6
USB5
USB2
USB1
USB4
USB3
COM3
COM2eSATA
MIC
LIN-OUT
TEMP LED
HDD LED
LIN-IN RESET
POWER
ON/OFF
ANTENNAANTENNA
DC IN
DVI-I
HDMI
COM1
LAN1
LAN2
USB6
USB5
USB2
USB1
USB4
USB3
COM3
COM2eSATA
MIC
LIN-OUT
TEMP LED
HDD LED
LIN-IN RESET
POWER
ON/OFF
Ordering Information
Part No. CPU L2 Cache HDMI DVI-I GbE RS-232/422/485 RS-232 USB 2.0 MiniPCIe DC input Expansion
ARK-3440F-U5A2E
Intel Core i7 610E
2.53 GHz
4 MB
Yes Yes 2 1 2 6 2 9 ~ 34 V
DC
1 PCIEx1 + 1 PCI
ARK-3440F-U4A2E
Intel Core i5 520E
2.4 GHz
3 MB
ARK-3440F-U1A2E
Intel Core i3 330E
2.13 GHz
3 MB
Note: Memory, storage and operating system bundled by request.
