BOXER Series - Fanless Embedded Controller Solutions
COM
VGA
Ethernet x 2
Audio
Power DC-in
PCI-E
USB x 4
HDMI
Keyboard/Mouse
Power Switch
System LED
Power LED
DVI-D
CPU
Intel® Core™-i7-2710QE/ i5-2510E 2.5 GHz/ i3-2330E/ Celeron®-B810
1.6GHz
Chipset Intel® QM67
System Memory DDR3 SODIMM x 2, supports DDR3 1066/1333, Max. 16GB
Display
Interface
VGA DB-15 x 1
DVI DVI-D x 1
HDMI HDMI x 1, support 1920 x 1080 @ 60 Hz
Others —
Storage
Device
SSD CFast™ slot
HDD SATA 6.0Gb/s x 1 (SATA 0, 2)
Network
LAN Gigabit Ethernet, RJ-45 x 2
Wireless Optional by mini-card
Front I/O
USB Host —
LAN —
Serial Port RS-232 x 3
DIO —
Audio —
KB/MS —
Others Power button x 1

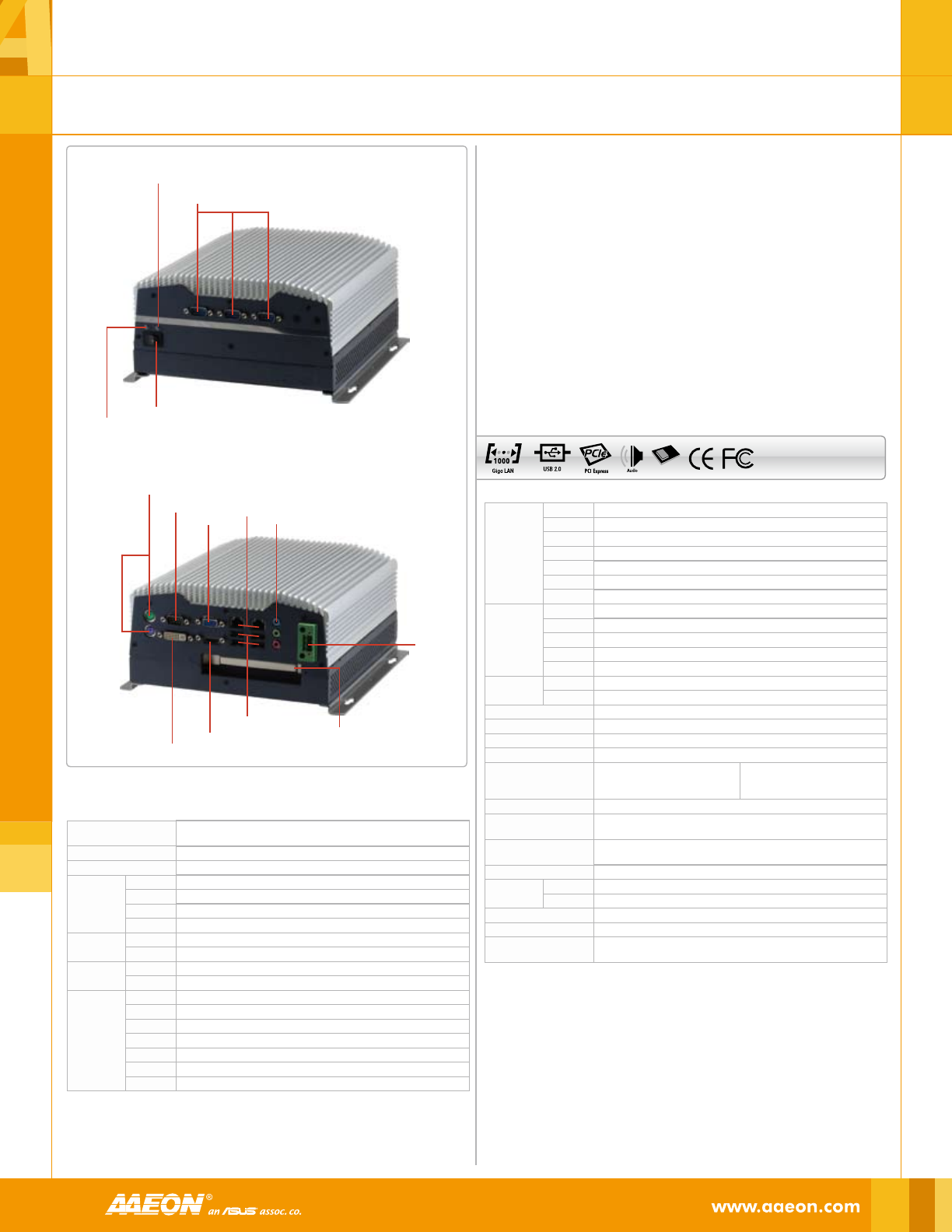

AEC-6876
Intel® Core™ i7-2710QE/ i5-2510E/ i3-2330E/ Celeron®-B810
■■
Processor
DDR3 SODIMM x 2, Supports DDR3 1066/1333, Max. 16GB
■■
Intel® QM67 Chipset
■■
Gigabit Ethernet x 2
■■
Intel® Integrated Graphics Engine Supports Dual View by
■■
VGA, DVI, HDMI, LVDS
COM x 4
■■
PCI x 2, PCI-Express [x4] x 1
■■
AAEON’s Hi-Safe & Hi-Manager Support (i5/i7 CPU Only)
■■
Fanless Embedded Controller With Intel® Core™ i7/ i5 /i3 /Celeron® Processor And PCI-Express Expansion
COM x 3
DDR
3
Front View
Rear View
Rear I/O
USB Host USB2.0 x 4
LAN RJ-45 x 2
Serial Port RS-232/422/485 x 1
DIO —
Audio Mic-in, Line-in, Line-out
KB/MS PS/2 KBx 1+MS x 1
Others Power input x 1
Expansion
PCIe [x4] 1 (optional)
PCI 2 (optional)
Mini Card 1
Mini PCI —
Others —
Indicator
Front Power LED x 1, Hard Disk Drive active LED x 1
Rear —
Power Requirement DC-in 12V, with DC jack lockable, DC 9 ~ 30V with 3-pin terminal block
Power Consumption —
System Cooling Passive Cooling
Mounting Wallmount
Operating Temperature
No Airflow
32 °F ~ 122°F (0°C ~ 50°C) Wide
Temperature CFD with WT RAM x 2
Ambient with Airflow
5°F ~ 131°F (-15°C ~ 55°C) Wide
Temperature CFD with WT RAM x 2
Storage Temperature -4°F ~ 158°F (-20°C ~ 70°C)
Anti-Vibration
5 g rms/ 5 ~ 500Hz/ operation – CFD
1 g rms/ 5~ 500Hz/ operation – HDD
Anti-Shock
50 G peak acceleration (11 msec. duration) – CFD
20 G peak acceleration (11 msec. duration) – HDD
MTBF —
Certification
EMC CE/FCC class A
Safety —
Dimension (W x H x D) 8.19"(W) x 4.02"(H) x 9.37"(D) (208mmx 102mm x 238mm)
Gross Weight 13.2 lb (6 Kg)
Note
Windows® XP Embedded, Windows® XP, Windows® 7, Linux Fedora 10
Support
