AEC-6635
Intel® Core™ i7/i5 Processor
■■
Intel® QM57 Chipset
■■
DVI-D x 1, VGA x 1, DisplayPort x 1
■■
Up To COM x 4
■■
Up To USB x 6
■■
Fanless Operation
■■
Gigabit Ethernet x 2
■■
ATX/ACPI Power Mode
■■
Fanless Embedded Controller with Intel® Core™ i7/i5 Processor
CPU Intel® Core™ i7 620M 2.66GHz/ Intel® Core™ i5 520M 2.4GHz
Chipset Intel® QM57
System Memory 204-pin DDR3 SODIMM x 1, Max. 4GB
Display
Interface
VGA DB-15 x 1, shared system memory up to 512MB
DVI DVI-D x 1
Others DisplayPort x 1
Storage
Device
SSD CompactFlash™ Slot x 1 (w/Cover protection)
HDD 2.5” SATA HDD drive bay x 1
Network
LAN Gigabit Ethernet x 2
Wireless Optional WiFi kit (802.11b/g/n)
Front I/O
USB Port USB2.0 x 2
LAN —
Serial Port —
DIO 4 DI + 4 DO
Audio —
KB/MS —
Others
Power Switch x 1
Power reset x 1
SYS LED x 1
HDD LED x 1
Rear I/O
USB Port USB 2.0 x 4
LAN RJ-45 x 2
Serial Port RS-232 x 3, RS-232/422/485 x 1
DIO —
Audio —
KB/MS —
Others
Power input x 1
DVI-D x 1
VGA x 1
Expansion
PCIe [x1] —
PCI —
Mini Card 1
Mini PCI —
Others —
Indicator
Front Power LED x 1, Hard Disk Drive active LED x 1
Rear —
Power Requirement DC-in 9 ~ 30V
Power Consumption
Intel® Core™ i7 620M 2.56GHz (35W)
1.58A@19V
System Cooling Passive
Mounting Wallmount
Operating Temperature
-4°F ~ 122°F (-20°C ~ 50°C ) without Airflow
-4°F ~ 131°F(-20°C ~ 55°C) with Airflow
Storage Temperature -4°F ~ 158°F(-20°C ~ 70°C)
Anti-Vibration
5 g rms / 5 ~ 500Hz / operation – CFD
1 g rms / 5~ 500Hz / operation – HDD
Anti-Shock
50 G peak acceleration (11 msec. duration) – CFD
20 G peak acceleration (11 msec. duration) – HDD
DIO
COM x 4
DVI-D
Power Switch
USB2.0 x 2
System LED
HDD Active LED
Power Input
DisplayPort
CompactFlash™ Slot
VGA
USB2.0 x 4
LAN

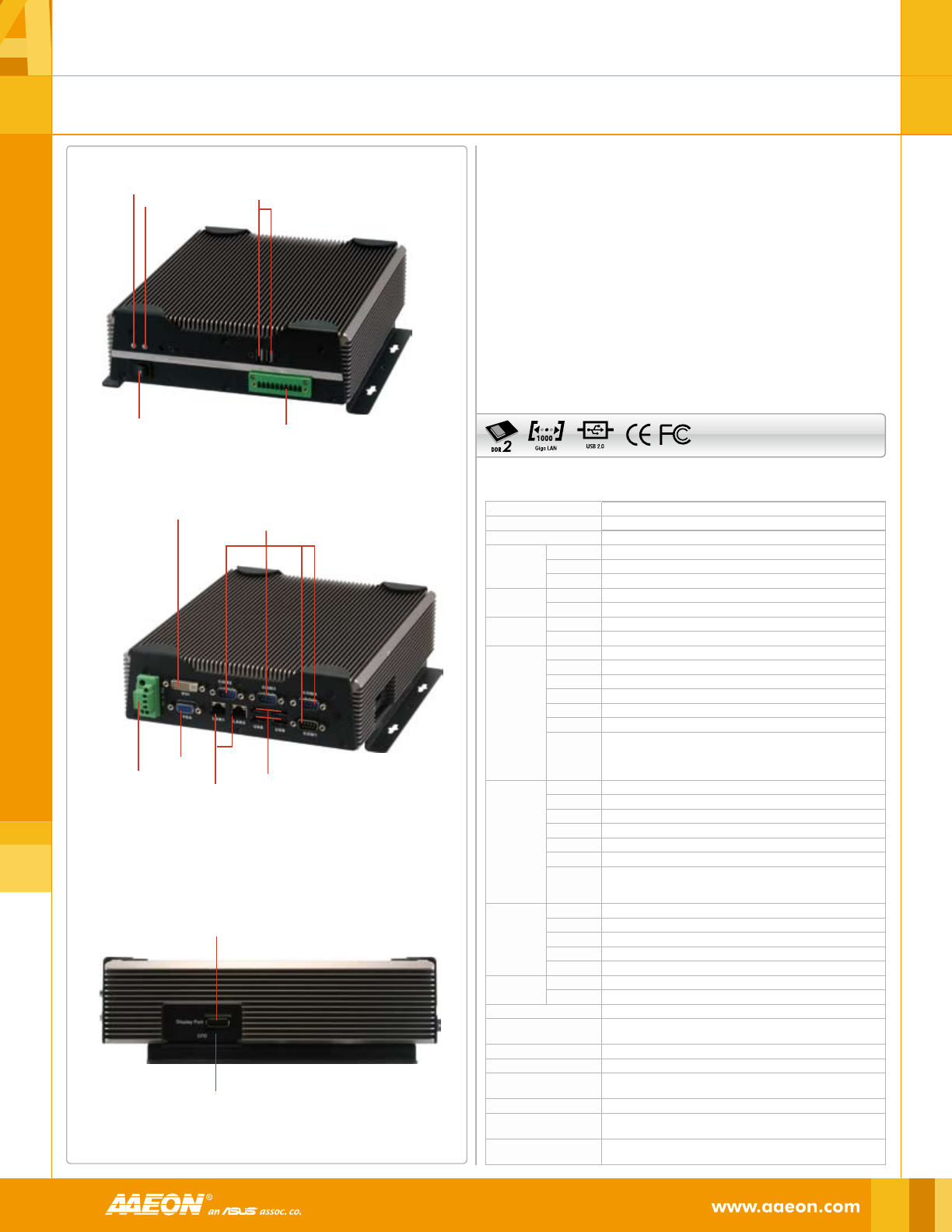

Front View
Rear View
Side View
