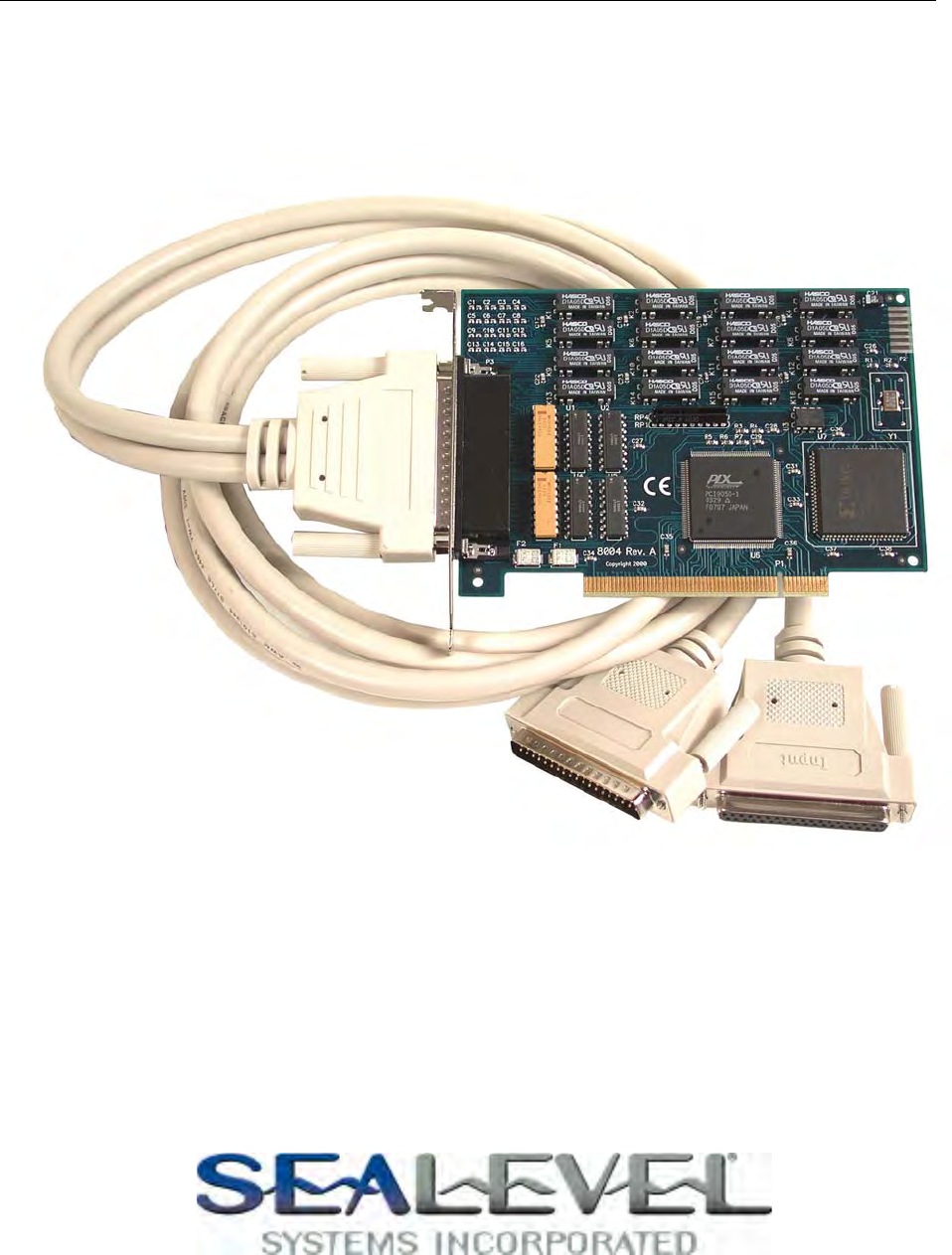

DIO-32.PCI User Manual Part Number 8004 www.sealevel.com PO Box 830 Liberty, SC 29657 864.843.
Table of Contents INTRODUCTION......................................................................................................................... 1 OTHER SEALEVEL PCI DIGITAL I/O PRODUCTS ........................................................................... 1 BEFORE YOU GET STARTED................................................................................................. 2 WHAT’S INCLUDED ......................................................................................................
Introduction The DIO-32.PCI digital I/O interface provides 16 optically isolated inputs and 16 reed relay outputs. The inputs (rated for 3-13V) protect the PC and other sensitive equipment from spikes and ground loop current that can be generated in industrial environments, while the outputs provide high quality, long life, low current (10 Watt maximum), dry contact switch closures. Reed relays are well suited for low current applications. The relays are normally open, and close when energized. The DIO-32.
Before You Get Started What’s Included The DIO-32.PCI is shipped with the following items. If any of these items is missing or damaged please contact Sealevel for replacement. DIO-32.PCI Adapter DB-78 Male to DB-37 Male and DB-37 Female V-cable, (Item# CA165) Sealevel SeaI/O Software CD Optional Items Depending upon your application, you are likely to find one or more of the following items useful for interfacing the DIO-32.PCI to real-world signals.
Software Installation Windows 98/ME/NT/2000/XP Installation 1. Start Windows. 2. Insert the Sealevel Systems CD in to your CD drive. 3. If ‘Auto-Start’ is enabled for this drive the software will automatically launch. Otherwise, point your browser to the ‘Index.htm’ on the root directory of the CD 4. Select ‘Install Software’. 5. Select the Part Number for your adapter from the listing. 6. Select ‘Windows 98/ME/NT/2000/XP’.
Linux Installation Note: You MUST have "root" privileges to install the software and drivers. 1. Login as "root". 2. Mount the CDROM by typing: mount -t iso4860 /dev/hdc /cdrom Note Your cdrom may not be /dev/hdc it could be /dev/hda, /dev/hdb, /dev/hdd, or if you have a SCSI drive /dev/sda, /dev/sdb, /dev/sdc, etc. You may mount the CDROM to any location, the /cdrom is just a common example. 3. Next change to the directory where you mounted the CDROM: Ex.
Physical Installation The adapter can be installed in any 5V PCI expansion slot. Do not install the Adapter in the machine until the software has been fully installed. 1. Turn off PC power. Disconnect the power cord. 2. Remove the PC case cover. 3. Locate an available 5V PCI slot and remove the blank metal slot cover. 4. Gently insert the PCI adapter into the slot. Make sure that the adapter is seated properly. 5.
Programming the DIO-32.PCI Sealevel’s SeaI/O software is provided to assist in the development of reliable applications for the Sealevel Systems family of digital I/O adapters. Included on the SeaI/O CD are driver functions for use in accessing the I/O as well as helpful samples and utilities. Programming for Windows The SeaI/O API (Application Programmer Interface) provides a variety of useful high-level function calls implemented in a Windows dynamic link library (DLL).
Input Ports Ports A and B are 8 bit input ports connected to optically isolated input sensors. Each sensor can be used to interface a voltage input and then sense whether the voltage is on or off. Each sensor is isolated (with respect to a common ground) from every other sensor, and also isolated with respect to the host PC ground.
Input Ports Pin Assignments (DB-37 Female) Via supplied DB-78 to DB-37 Female and DB-37 Male cable, Part Number CA165 Port A Bit 0 1 2 3 4 5 6 7 Ground +12 Volts +5 Volts Port A Pins 18,37 17,36 16,35 15,34 14,33 13,32 12,31 11,30 2,20,21 1 19 Port B Bit 0 1 2 3 4 5 6 7 Port B Pins 10,29 9, 28 8,27 7,26 6,25 5,24 4,23 3,22 Output Ports (Reed Relay) Reed relays provide very high quality, long life, low current (10 Watt maximum), dry contact switch closures.
DB-78 Female Pin Assignments (Card Edge Connector) Bit 0 1 2 3 4 5 6 7 GND +12V +5V Port A Pins Port B Pins 55,74 47,66 54,73 46,65 53,72 45,64 52,71 44,63 51,70 43,62 50,69 42,61 49,68 41,60 48,67 40,59 39,57,58 38 56 Port C Pins Port D Pins 2,20 10,28 3,21 11,29 4,22 12,30 5,23 13,31 6,24 14,32 7,25 15,33 8,26 16,34 9,27 17,35 18,36,37 1 19 Direct Hardware Control In systems where the users program has direct access to the hardware (DOS) the tables that follow give the mapping and functions that the DI
Register Description All ports are set to input after reset or power up.
Electrical Characteristics Features 2 sets SPST relays with each having 8 relays 2 eight bit input ports DB-37 Male connector for relay outputs DB-37 Female connector for optically isolated inputs Highly reliable 10 VA DIP reed relays Multiple adapters can reside in same computer Specifications Input Ports Turn On Current: Isolator Diode Drop: Resistor Power Max: Maximum Input Range: 3mA 1.1 VDC .
Example Circuits Input Circuit Output Circuit © Sealevel Systems, Inc. - 12 - DIO-32.
Appendix A - Troubleshooting Following these simple steps can eliminate most common problems. 1. Install software first. After installing the software then proceed to adding the hardware. This places the required installation files in the correct locations. 2. Read this manual thoroughly before attempting to install the adapter in your system. 3. Use Device Manager under Windows to verify proper installation. 4.
Appendix B - How To Get Assistance Begin by reading through the Trouble Shooting Guide in Appendix A. If assistance is still needed please see below. When calling for technical assistance, please have your user manual and current adapter settings. If possible, please have the adapter installed in a computer ready to run diagnostics. Sealevel Systems provides an FAQ section on its web site. Please refer to this to answer many common questions. This section can be found at http://www.sealevel.com/faq.
Appendix C – Silk Screen – 8004 PCB 4.200" 6.00" 3.825" © Sealevel Systems, Inc. - 15 - DIO-32.
Appendix D - Compliance Notices Federal Communications Commission Statement FCC - This equipment has been tested and found to comply with the limits for Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
Warranty Sealevel's commitment to providing the best I/O solutions is reflected in the Lifetime Warranty that is standard on all Sealevel manufactured products. We are able to offer this warranty due to our control of manufacturing quality and the historically high reliability of our products in the field. Sealevel products are designed and manufactured at its Liberty, South Carolina facility, allowing direct control over product development, production, burn-in and testing. Sealevel Systems, Inc.
