Appendix—Pinouts

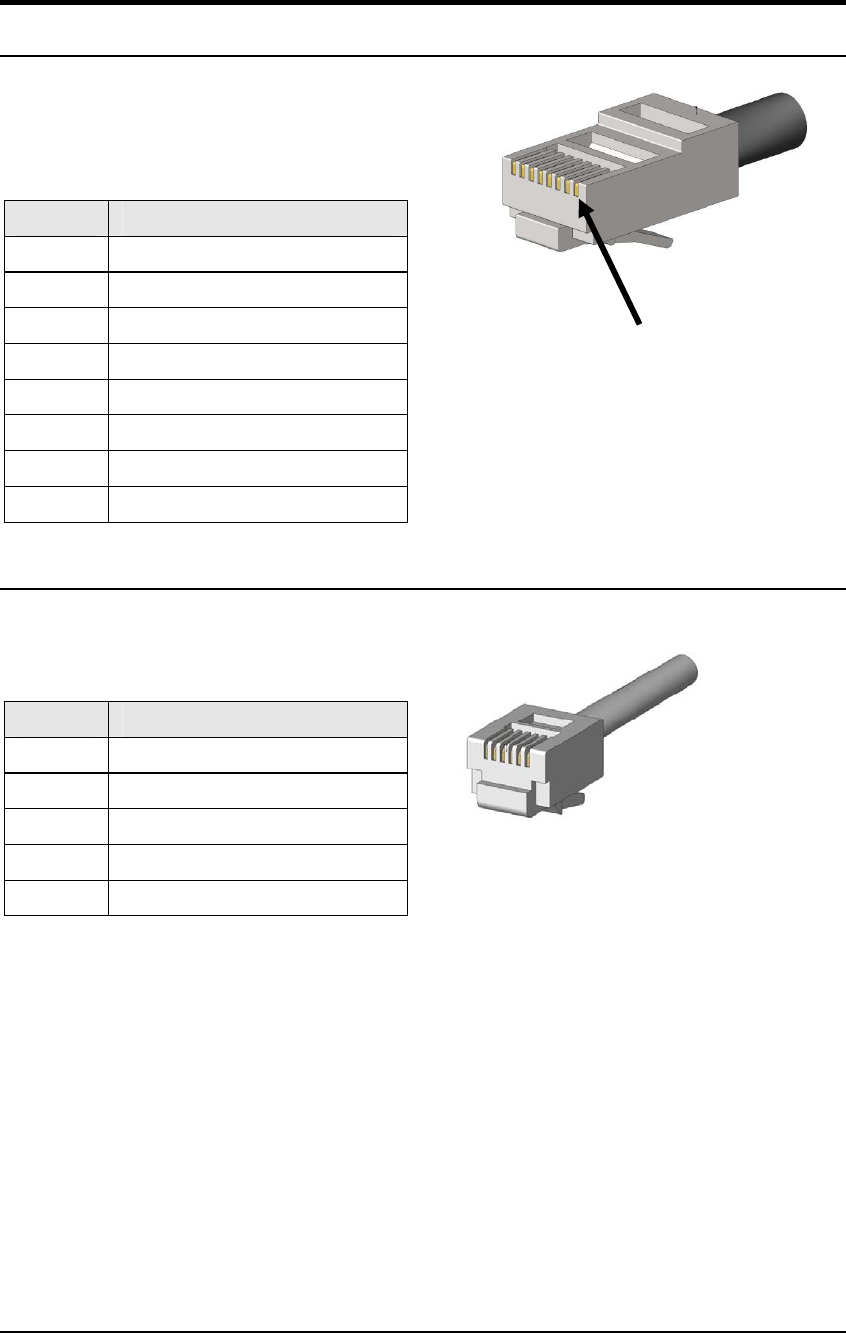

RJ-45 Data Port Pinout (MDI)

The following table lists the pin

configuration for the RJ-45 Data

connector.

Pin Signal

1 Transmit+

2 Transmit-

3 Receive+

4 No Connection

5 No Connection

6 Receive-

7 No Connection

8 No Connection

RJ-11 Port Pinout

VDSL ports are supported on RJ-11 (pin

3,4) connectors.

Pin Signal

1

2

3 Ring (VDS)

4 RIP (FCSL)

5

Pin 1
