Instruction manual

Installation

PoE+ Giga-McBasic installs virtually anywhere: as a standalone, table-top device,

with rackmount ears or using a Wallmount bracket. The rackmount ears and

wallmount bracket are optional accessories available through IMC Networks

distributors.

Installation Tip

Several models of the PoE+ Giga-McBasic support single-strand fiber for operation. Since

single-strand fiber products use optics that transmit and receive on two different wavelengths,

single-strand fiber products must be deployed in pairs. For example, connect a PoE+ Giga-

McBasic, TX/SSLX-SM1310-SC (which has 1310 xmt and 1550 rcv) to a product which has

1550 xmt and 1310 rcv, e.g. PoE+ Giga-McBasic, TX/SSLX-SM1550-SC. The two connected

products must also have the same speed and distance capabilities (i.e. both are single-mode

[20km] or both are single/PLUS [40km]).

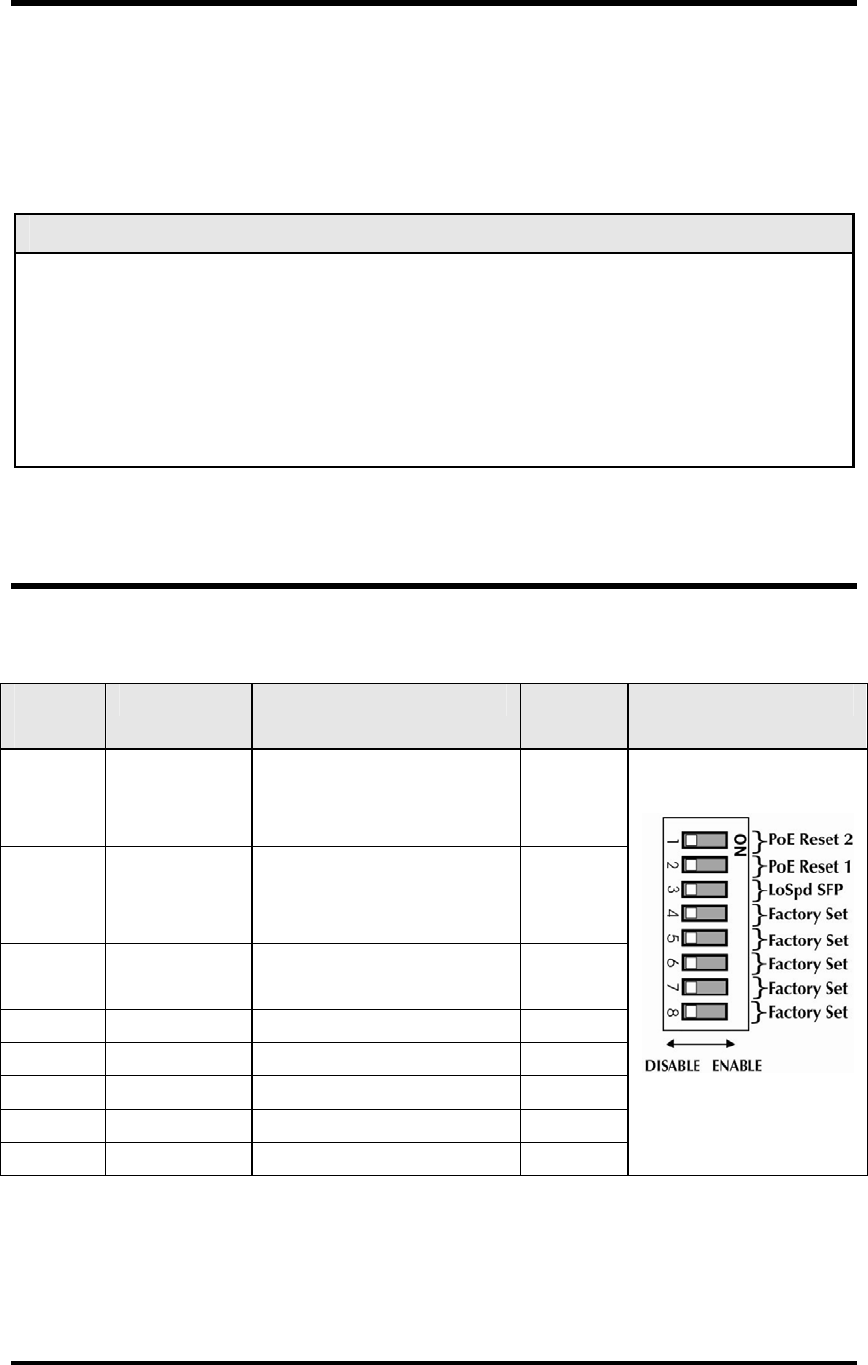

DIP Switch Configuration SFP and 1x9

PoE+ Giga-McBasic SFP

DIP

Switch

Name Definition Default

Setting

DIP Switch

PoE Reset 2 ON forces Port 2 PoE

OFF on LOS of Fiber

input

OFF

PoE Reset 1 ON forces Port 1 PoE

OFF on LOS of Fiber

input

OFF

LoSpd SFP ON sets SFP for low

speed operation

OFF

Factory Set Do not change OFF

LoSPd DSW for PoE+ Giga-McBasic

The DIP Switch for LoSPd is to allow the end user to set a speed for a fiber SFP under

the following conditions:
