 5HSODFLQJWKHLQQHUFRYHU2

ILOOLQJSLVWRQ

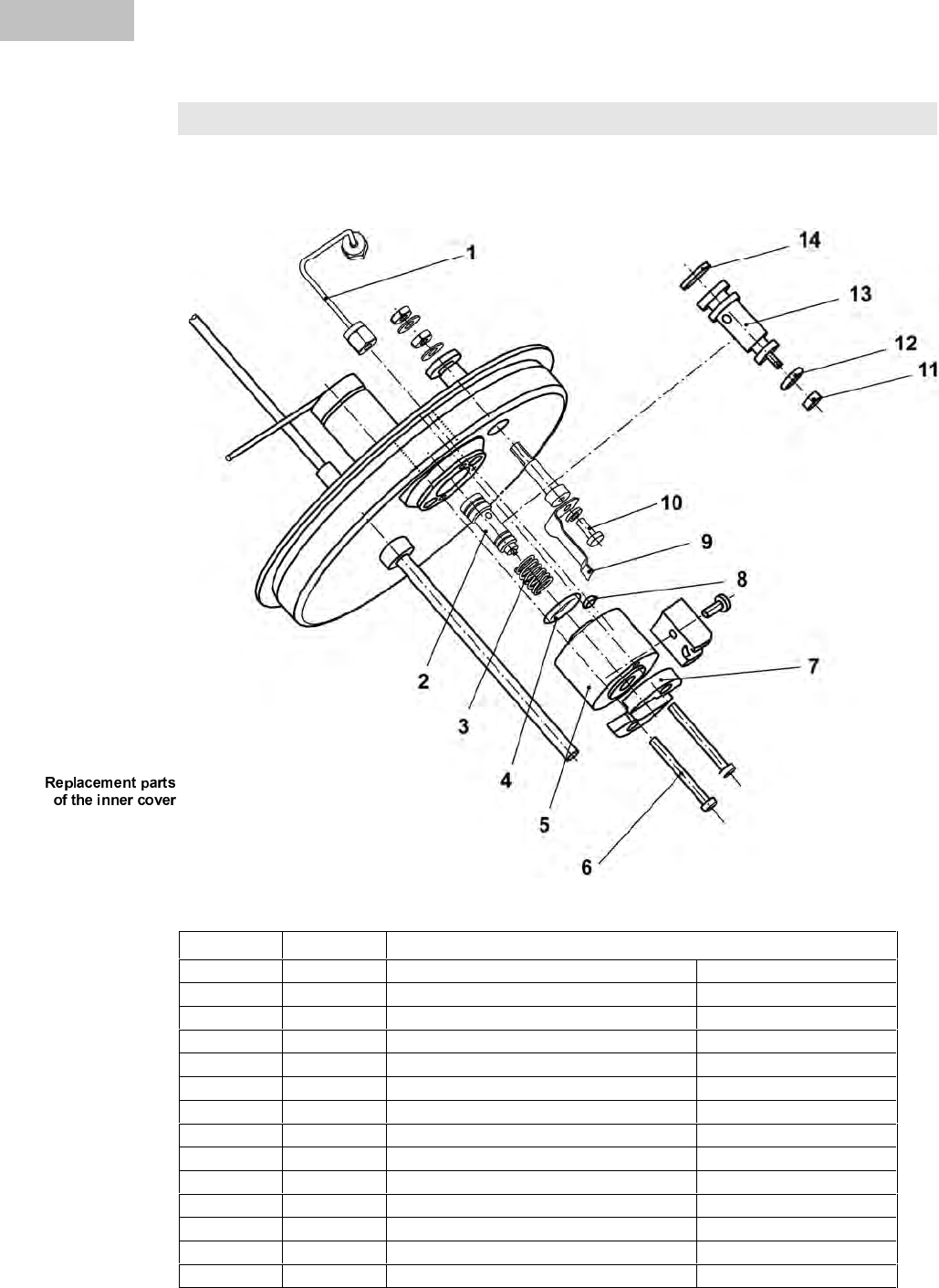

If it should become necessary to break down the inner cover to replace parts, it can
be put back together again as shown in the following illustration.
6SDUHSDUWVOLVW
,WHP 3LHFHV 1DPH
 
Capillary cpl.
 
Piston cpl.
 
Pressure spring VD123 1.4310
 
O ring 11 x 2 FKM
 
Filling head Peek
 
Cylinder screw DIN84 M3x30 A2
 
Centering ring 1.4301
 
O ring 2 x 1.6 V80G
 
Contact spring 2.1020.34
 
Lens screw DIN7985 M3x8 A2 1.4301
 
Seal disk
 
O ring 4 x 1.5
 
Piston
 
Quad ring 5.28 x 1.78
Only the parts with item numbers are available as replacement parts.
