&RQILJXULQJWKHVFDOH
If electronic scale is attached to the system, the scale type must be configured. To
do this, open the 6FDOH dialog box in the &RQI menu box.

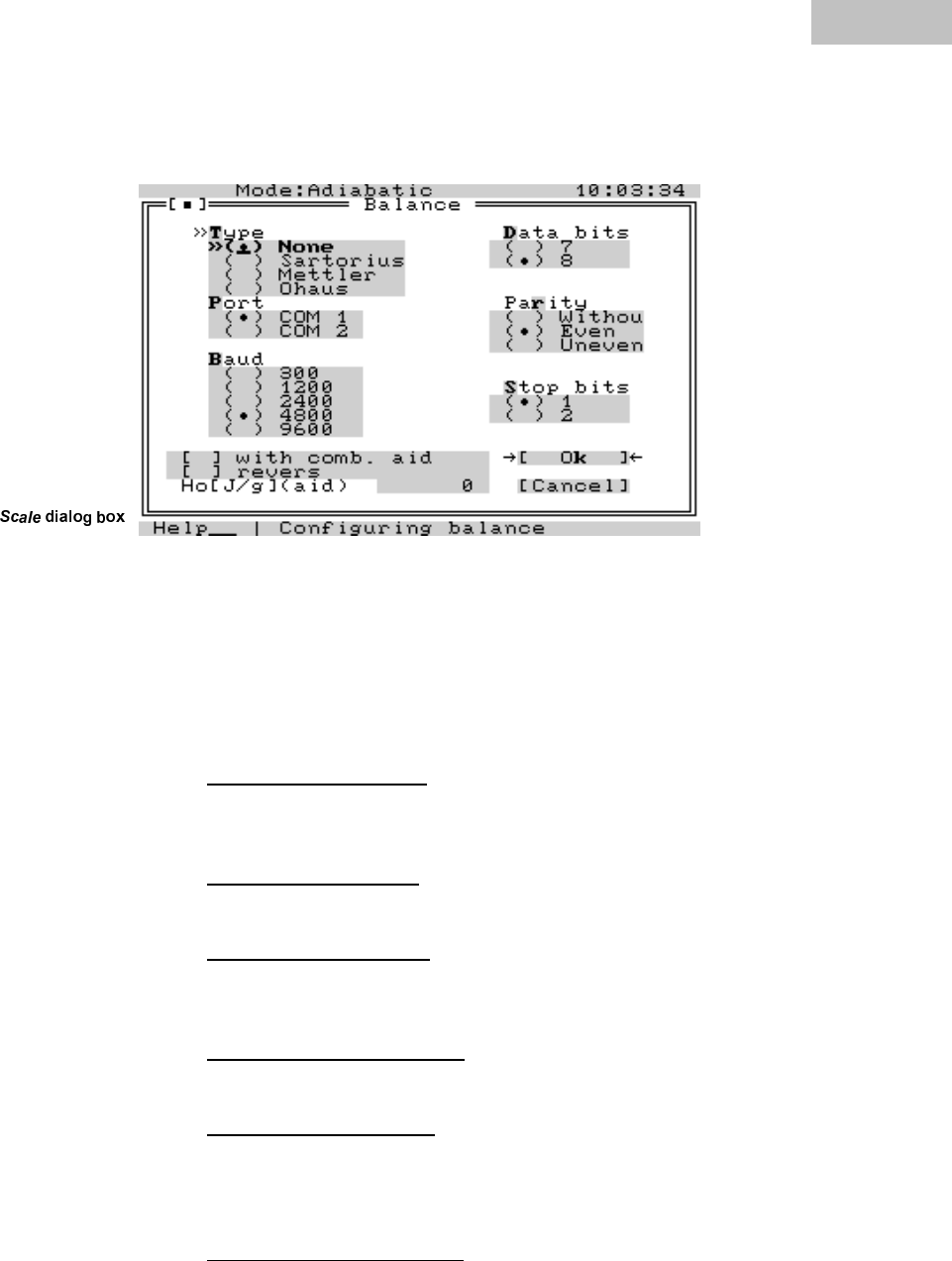

The window displays the configuration of the scale. The parameters you select here
must agree with the interface parameters of the attached scale. Please refer to the
scale manual for the parameters.
To move the cursor to the next configuration box, press 7DE 8S'RZQDUURZmoves
the cursor within a configuration box. If you leave a box with 7DE, the current setting
is retained in the box.
You can make the following settings with the configuration boxes:
7\SH configuration box
Here you can indicate which scale is connected to the system. Either QR
VFDOH or one of the types indicated are connected.
3RUW configuration box
No entry is possible in the 3RUW box. The scale is always attached to COM1.
%DXG configuration box
The data transmission rate between the scale and the calorimeter system is
adjustable to 300, 1200, 2400, 4800, 9600 and 19200 Bit/s.
'DWDELWV configuration box
Here you can select whether data will be transferred in 7-bit or 8-bit format.
3DULW\ configuration box
Indicate whether the transferred data should be accepted ZLWKRXW a check for
parity by the calorimeter system, or whether a check should be performed for
HYHQ or RGG parity.
6WRSELWV configuration box
Select either or stop bits for the data transfer protocol. If you are using a
combustion aid or the combustible crucible, it is possible to record the weight
of the combustion aid or the combustible crucible by using a special weighing
mode and to calculate the extraneous energy resulting from this measure-
ment automatically.
