Manual

6HWWLQJXSDQGSODFLQJLQVHUYLFH
IKA

-WERKE C 5000 control/duo-control Ver. 10 04.07
3DJH
7 /HIWULJKWXSDQGGRZQDUURZ NH\ The arrow keys move the cursor within
the entry lines, menu windows, tables and protocols.
8. 1XPEHUEORFN You can enter numbers, decimal points and blank spaces
with these keys. You can open up or close an additional information window
for service purposes with the decimal key outside of a dialog box. You can
print out the content of this window with the space bar .
You can use button 1 to go to the maintenance menu when there is no
measurement running. Pressing button 2 feeds a page if a printer is con-
nected.
9. &RQWUDVWFRQWUROOHU For controlling the contrast of the display.
/RFNVFUHZ Loosening the lock screw will change the angle of inclination of
the display. To lock it, the screw must be screwed in again until it is tight.

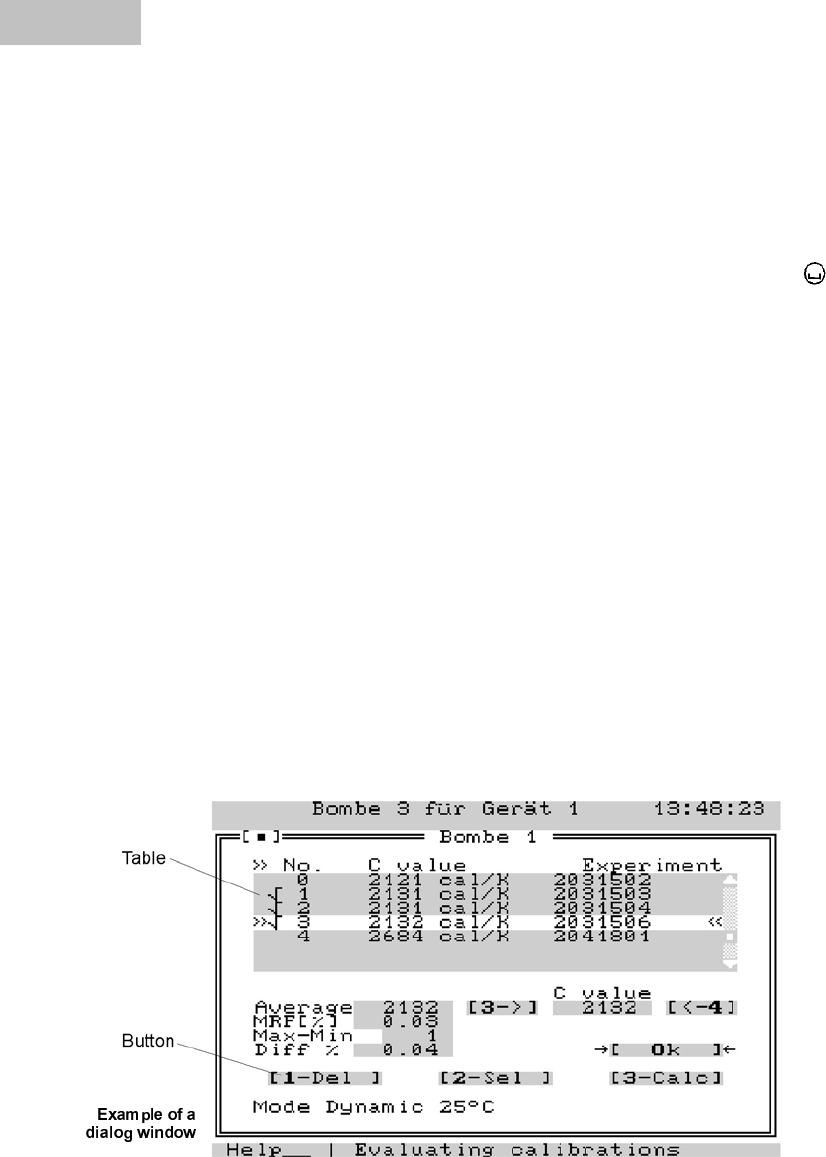

10. Various dialog elements can be selected within the dialog box in the display.
The following dialog elements are available:
– entry line
– button
– simple table
– selection table
– option table
– display elements (cannot be accessed)
