 &FRROLQJV\VWHP

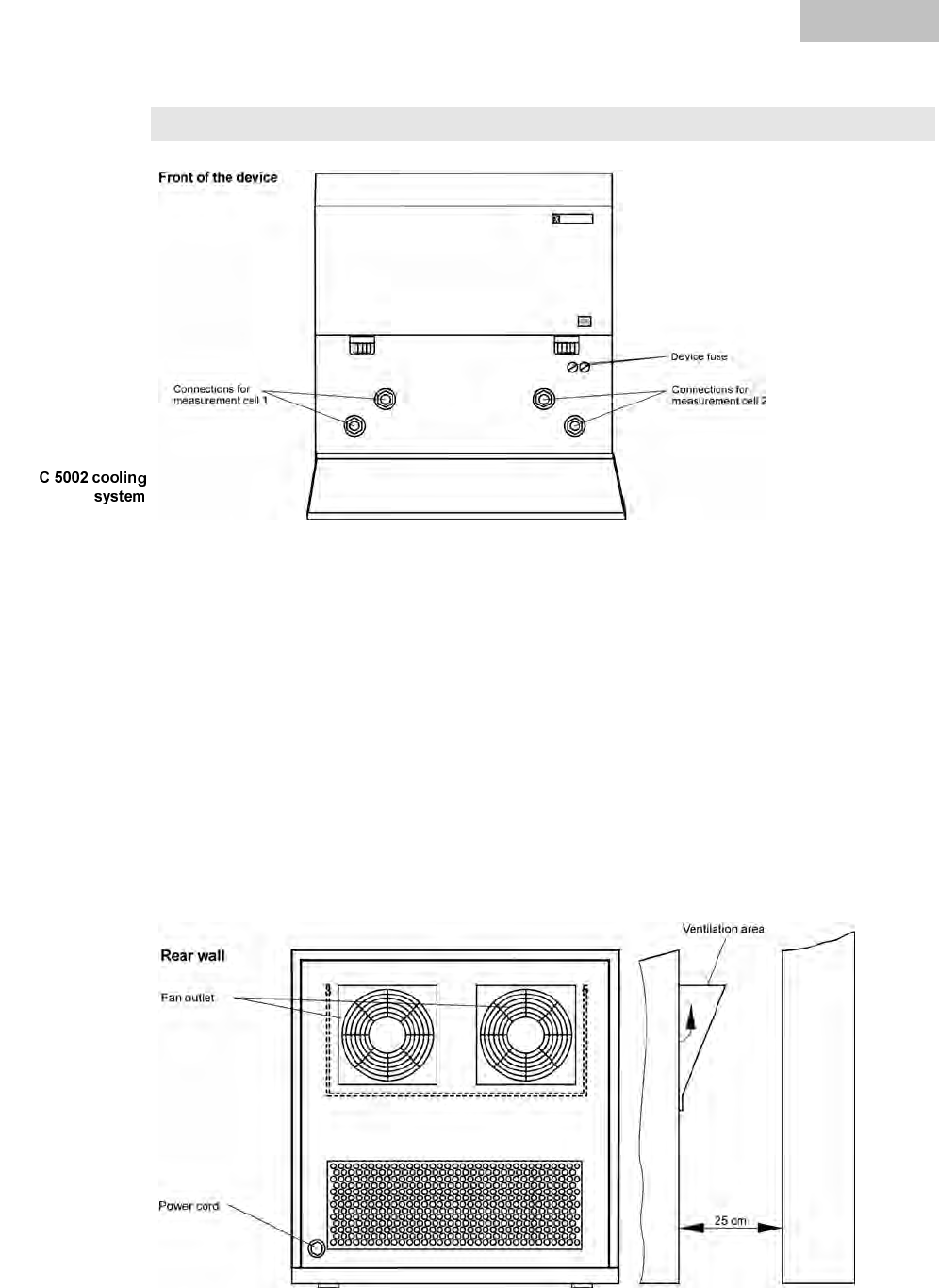

The C 5002 cooling system cools the water systems of the two measurement cells.
One heat exchanger takes care of the cooling required for each circuit. A compres-
sor with a liquifier and an evaporator generates sufficient cooling output for two
measurement cells of the C 5000 calorimeter system.
The ventilator takes in cool air through the bottom of the unit to draw off the heat it
generates. The air escapes back out of the unit through ventilation slits in the rear
wall.
)RUWKHRSHUDWLQJVHFXULW\RIWKHHQWLUHV\VWHPERWKPHDVXUHPHQWFHOOV
VKRXOGDOZD\VEHLQDFWLYHRSHUDWLQJPRGHWKH2.ZLQGRZFRQILUPHG7KLV
DOVRDSSOLHVZKHQZRUNLQJZLWKRQO\RQHPHDVXUHPHQWFHOO
☞
